Router RouterWiFi6 X6000R Dual Band WiFi6 AX3000

The TOTOLINK RouterWiFi6 X6000R Dual Band WiFi6 AX3000 is a dual-band wireless router designed to deliver high-speed home and small office connectivity. Supporting Wi‑Fi 6 (802.11ax) technology, it combines up to 3000 Mbps aggregated throughput across 2.4 GHz and 5 GHz bands with five RJ45 Ethernet ports for reliable wired connections. The router aims to improve overall network capacity, reduce latency for interactive applications, and maintain stable performance when multiple devices are connected.

Advantages

Wi‑Fi 6 efficiency enables better handling of simultaneous device traffic and lower latency for gaming and video calls. Dual-band operation separates legacy and high-throughput devices to optimize wireless performance. Five Ethernet ports allow wired devices—such as desktop PCs, smart TVs, or network-attached storage—to achieve consistent speeds and stable connections. The router's combined wireless and wired capabilities make it suitable for environments with mixed device types and varying bandwidth demands.

Suitable for

• Home networks with multiple smartphones, laptops, smart TVs and IoT devices
• Small office environments requiring stable wired and wireless connectivity
• Online gaming and low-latency video conferencing
• 4K/HD streaming and large file transfers over wired Ethernet

Key specifications

• Wireless standard: Wi‑Fi 6 (IEEE 802.11ax) with dual‑band support (2.4 GHz + 5 GHz)
• Maximum combined throughput: up to 3000 Mbps (aggregated across bands)

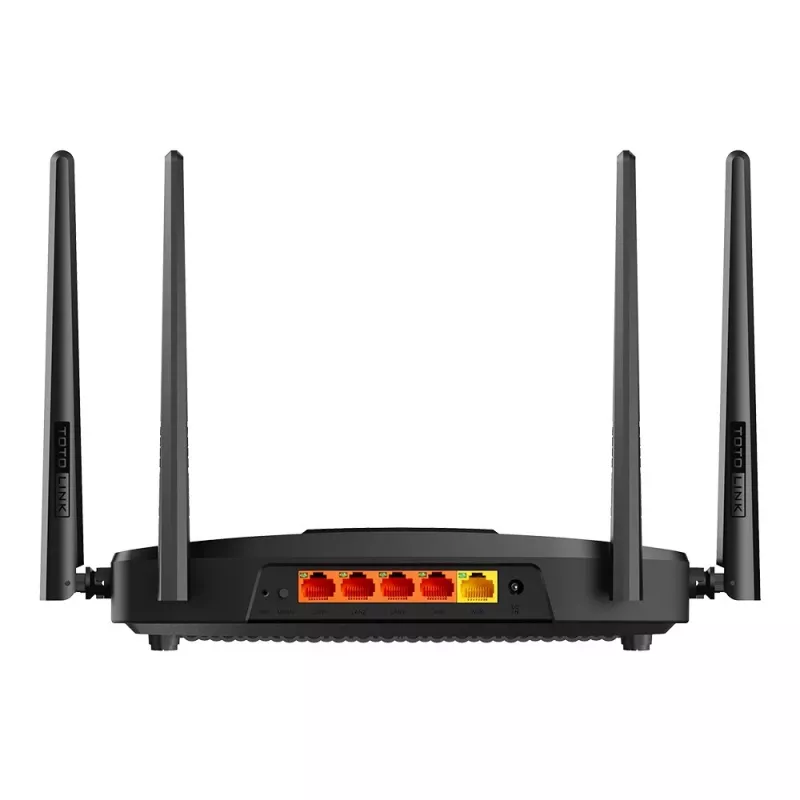

• Ethernet ports: 5 × RJ45 for LAN/WAN wired connections
• Maximum simultaneous device support: optimized for multiple connected clients using OFDMA and MU‑MIMO technologies
• Security: standard WPA2/WPA3-compatible security modes and firewall features

How to use

Place the router in a central location to maximize wireless coverage and connect the incoming internet line to the WAN-capable Ethernet port. Use the LAN Ethernet ports to connect wired devices where stable throughput is required. Access the router’s web-based or app-based setup interface to configure SSIDs for 2.4 GHz and 5 GHz bands, set security credentials, and apply firmware updates. Adjust channel and transmission power settings if needed to reduce interference from nearby networks.

Recommendations

For reliable performance, place the router away from large metal objects and other electronics that cause interference; keep firmware updated and use the 5 GHz band for high-bandwidth applications while reserving 2.4 GHz for greater range and legacy devices.
