wired router Mikrotik CCR2216-1G-12XS-2XQ Gigabit Ethernet 2000 MHz Silver

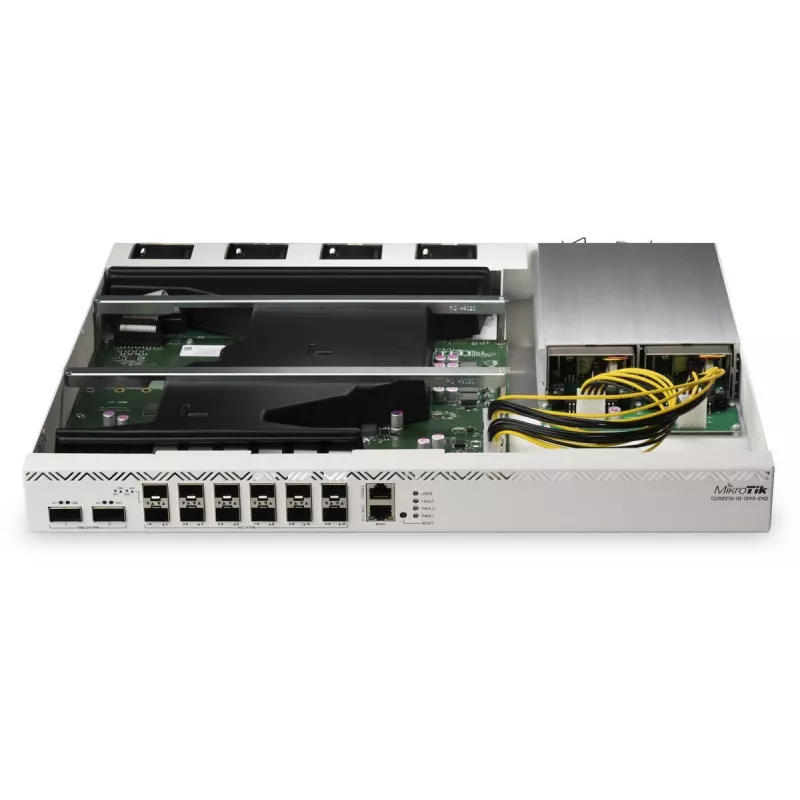

The MikroTik Cloud Core Router 2216 is a high-performance network router designed for 100 Gigabit environments and as a drop-in upgrade for CCR1072 deployments. It combines a 16-core CPU with the Marvell Prestera Aldrin2 switch-chip that supports L3 hardware offloading, enabling accelerated routing and switching tasks while reducing CPU load and power consumption.

Advantages

This router provides 100 Gigabit connectivity via two QSFP28 cages and supports multiple 25 Gigabit links with twelve SFP28 ports, plus a Gigabit Ethernet management port. It includes 16 GB RAM, onboard NAND storage, and two M.2 SATA slots for extra storage. The design features four hot-swappable fans and dual hot-swappable redundant power supplies; existing CCR1072 hot-swap power supplies and compatible SFP modules are supported for easier upgrades and lower accessory costs.

Key specifications

• CPU: 16-core processor
• Switch-chip: Marvell Prestera Aldrin2 with L3 hardware offloading
• 100G ports: 2x QSFP28
• 25G ports: 12x SFP28
• Additional ports: 1x Gigabit Ethernet
• Memory: 16 GB RAM
• Storage: onboard NAND and 2x M.2 SATA slots
• Cooling: 4x hot-swappable fans
• Power: dual hot-swappable redundant PSUs; compatible with CCR1072 PSUs

How to use

Install the CCR2216 in a standard 19-inch rack and connect QSFP28 or SFP28 modules according to your network design. Use the Gigabit Ethernet port for initial management access and configure interfaces, routing, and switch-chip offloading settings via MikroTik RouterOS. Populate M.2 slots if additional local storage is required and ensure redundant power supplies are installed for uninterrupted operation.

Recommendations

For upgrades from CCR1072, reuse existing hot-swap power supplies and compatible SFP modules when possible. Verify SFP/QSFP module compatibility with the Marvell switch-chip and plan cabling for 25G/100G links to ensure optimal performance and power efficiency.
