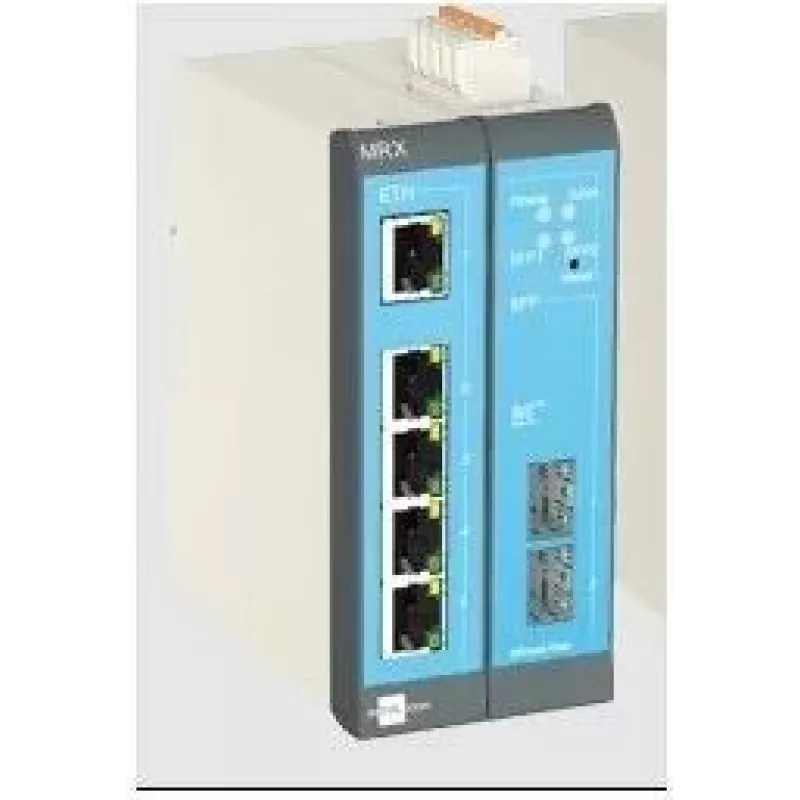

INSYS Router MRX MRX2 Fiber with 5-Port Switch

INSYS Router MRX MRX2 Fiber with 5-Port Switch is a compact industrial router that combines MRX routing functionality with an optical uplink and a built-in five-port Ethernet switch. The device is designed for edge installations where a fiber connection to the operator or backbone is required while providing multiple copper LAN ports for local devices. It supports standard routing features and local switching in a single housing to simplify wiring and reduce the need for separate equipment.

Advantages

The MRX MRX2 Fiber integrates fiber uplink capability with an integrated five-port switch, reducing the number of separate components needed in a rack or cabinet. Its design provides stable routing and local Ethernet distribution, lowering installation complexity. The product is suitable for continuous operation in industrial and enterprise environments and enables clear separation between WAN (fiber) and LAN (Ethernet) segments for straightforward network topology management.

Suitable for

Key specifications

How to use

Install the router in the rack or on the DIN rail according to site layout and connect the fiber uplink to the designated optical port. Attach local devices to the five Ethernet ports using standard RJ45 cables. Configure routing, VLANs, firewall rules and any MRX-specific settings through the device management interface or remote management tools supported by INSYS. Verify link status and test network paths after initial configuration.

Recommendations

Place the device in a ventilated cabinet away from direct heat sources and protect fiber connections from excessive bending. Use appropriately rated power supplies and follow INSYS configuration guidelines to separate WAN and LAN segments and to keep firmware up to date for security and stability.
