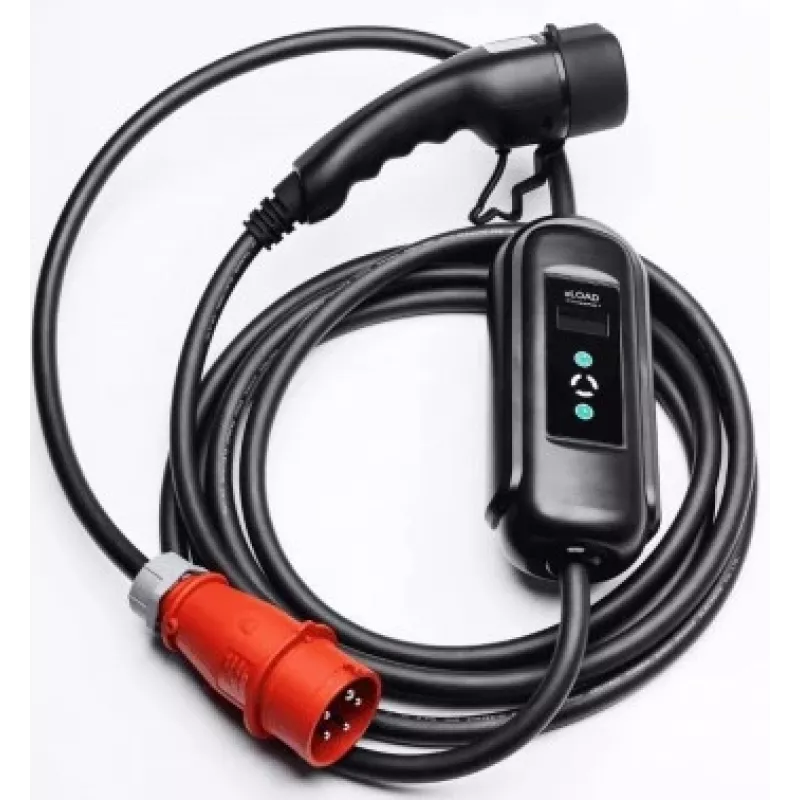

TIETOSET ELOAD 3X16A 11KW CHARGER

The TIETOSET ELOAD 3x16A 11kW Charger is a professional-grade electric vehicle (EV) charging station designed for reliable and efficient 3-phase charging. With a maximum power output of 11 kW and a charging current of 16 A per phase, this wall-mounted charger is ideal for residential and commercial installations. It features a fixed 5-meter Type 2 cable, integrated DC fault current protection, and smart connectivity via Wi-Fi and Bluetooth. The charger supports RFID and mobile app authentication, dynamic load balancing (with external module), and OCPP 1.6J for seamless integration with backend systems. Its robust IP54-rated enclosure ensures outdoor durability, while the integrated energy meter provides accurate consumption tracking.

Advantages

High-power 11 kW 3-phase charging reduces charging time significantly. Integrated DC fault current protection (6 mA) and Type A RCD enhance safety. Smart features including Wi-Fi, Bluetooth, and OCPP 1.6J enable remote monitoring and control. Dynamic load balancing capability optimizes energy usage. IP54 rating allows safe outdoor installation. The integrated energy meter helps track electricity consumption.

Suitable for

• Electric vehicle owners requiring fast 3-phase charging at home or workplace
• Commercial properties such as office buildings, hotels, and retail parking lots
• Fleet operators needing reliable and smart charging infrastructure
• Installations requiring outdoor-rated charging stations with robust safety features

Key specifications

• Charging Power: 11 kW (3-phase)
• Charging Current: 16 A per phase
• Input Voltage: 400 V AC (3-phase)
• Frequency: 50 Hz
• Vehicle Connector Type: Type 2 (IEC 62196-2)
• Grid Connection: Hardwired
• Cable Length: 5 meters (fixed cable)
• Residual Current Device: Integrated DC fault current protection (6 mA) and Type A RCD
• Protection Rating: IP54
• Operating Temperature: -30°C to +50°C
• Communication: Wi-Fi, Bluetooth
• Authentication: RFID, Mobile App
• User Interface: LED status indicators
• Mounting Type: Wall-mounted
• Enclosure Material: UV-resistant PC/ABS plastic
• Safety Features: Overcurrent, Overvoltage, Undervoltage, Short Circuit, Over-temperature protection
• Metering: Integrated energy meter
• Dynamic Load Balancing: Supported (with external module)
• Standard Compliance: CE, IEC 61851
• Connectivity Protocol: OCPP 1.6J

Recommendations

For optimal performance, ensure the charger is installed by a qualified electrician and connected to a suitable 3-phase power supply. Use the ELOAD mobile app for easy setup and monitoring. Pair with an external dynamic load balancing module for advanced energy management.
