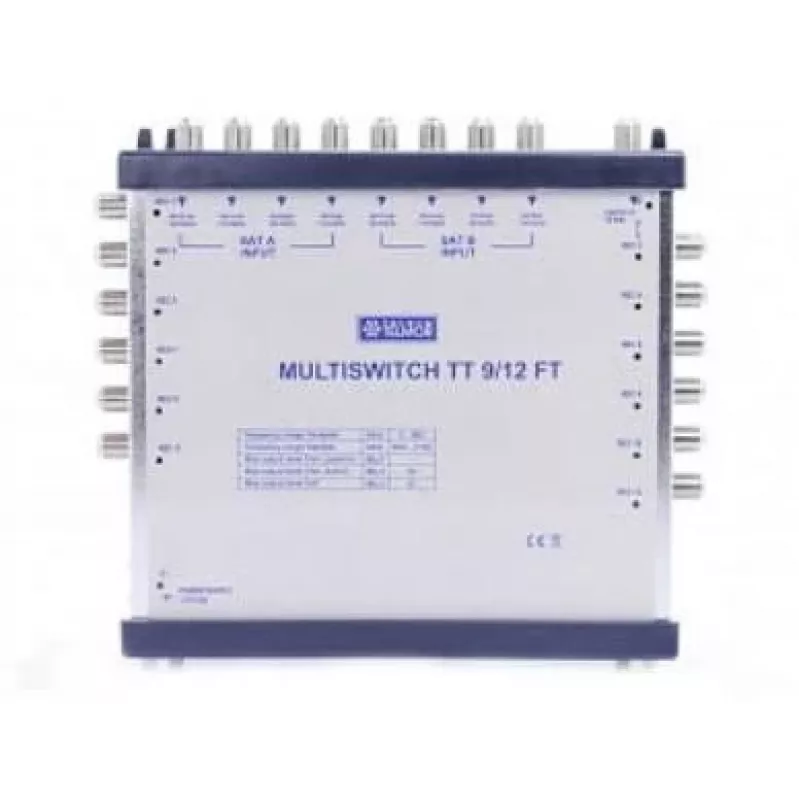

TELMOR Multiswitch TT 9/12 FT CLASSIC Terminal End-of-Line 12 Outputs

The TELMOR Multiswitch TT 9/12 FT CLASSIC is a high-performance terminal (end-of-line) multiswitch designed for distributing satellite and terrestrial TV signals to up to 12 subscribers. It supports 8 satellite inputs (for 2 satellite positions, 4 polarizations each) and 1 terrestrial input, making it ideal for multi-dwelling units and small to medium-sized installations. Built with a robust metal housing and featuring F-type connectors, this multiswitch ensures reliable signal distribution with low loss and high isolation.

Advantages

Supports up to 12 subscriber outputs with excellent signal isolation (>25 dB between outputs). Built-in power supply (230V AC) simplifies installation. Compatible with DiSEqC 2.0 (backward compatible with 1.0/1.1) for advanced switching control. Low SAT loss (0 to -3 dB) ensures minimal signal degradation.

Suitable for

• Satellite TV distribution in apartment buildings, hotels, and offices
• End-of-line multiswitch applications requiring 12 outputs
• Systems with 2 satellite positions and 4 polarizations

Key specifications

• Type: Terminal (End-of-Line) Multiswitch
• SAT Inputs: 8 (2 satellite positions, 4 polarizations each)
• Terrestrial Inputs: 1
• Subscriber Outputs: 12
• SAT Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• SAT Loss (Trunk to Subscriber): 0 to -3 dB
• Terrestrial Loss (Trunk to Subscriber): -15 to -20 dB
• Max SAT Output Level: 100 dBµV (IMD3=35dB)
• Max Terrestrial Output Level: 85 dBµV (IMD3=60dB)
• LNB Power Supply: 18V DC, max 500mA
• Switching Control: 13/18V, 0/22kHz, DiSEqC 2.0
• SAT-SAT Isolation: >30 dB
• SAT-TER Isolation: >30 dB
• Output-Output Isolation: >25 dB
• Connectors: F-type (all inputs/outputs)
• Power Supply: Built-in 230V AC, 50Hz
• Power Consumption: Max 15W
• Operating Temperature: -20 to +50 °C
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is designed for indoor use only. Always check compatibility with your LNB and satellite system.
