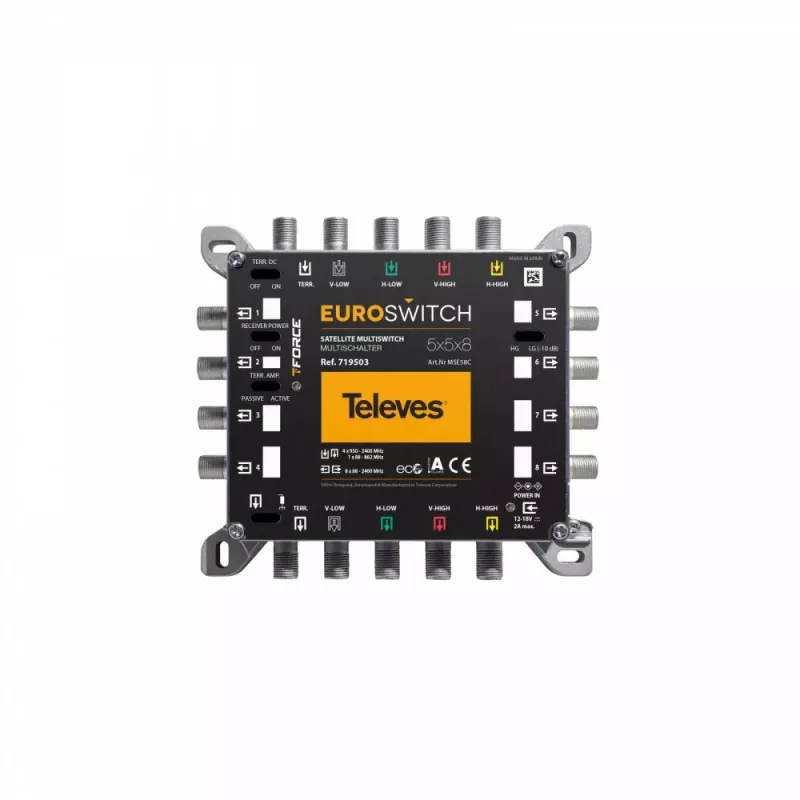

TELEVES EuroSwitch 5x5x8 Multiswitch 4 SAT + 1 TER, 8 Outputs, DiSEqC 2.0, 230V, ref. 719503

The TELEVES EuroSwitch 5x5x8 (ref. 719503) is a professional-grade multiswitch designed for distributing satellite and terrestrial TV signals in multi-dwelling units. With 4 satellite inputs and 1 terrestrial input, it provides 8 subscriber outputs, making it ideal for small to medium installations. The switch supports DiSEqC 2.0 protocol and features an internal 230V power supply for reliable operation.

Advantages

This multiswitch offers a compact and efficient solution for combining satellite IF (950-2150 MHz) and terrestrial (47-862 MHz) signals. It provides high isolation between ports (>30 dB SAT-SAT, >30 dB SAT-TER, >25 dB output-output) to minimize interference. The unit includes LNB power supply (18V/500mA) and DC pass to LNB, simplifying installation.

Suitable for

• Multi-dwelling buildings requiring distribution of satellite and terrestrial TV to up to 8 subscribers
• Small hotels, offices, or residential complexes
• Installations needing DiSEqC 2.0 compatibility for advanced switching

Key specifications

• Number of Satellite Inputs: 4
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 8
• Satellite Frequency Range: 950-2150 MHz
• Terrestrial Frequency Range: 47-862 MHz
• Satellite Tap Gain: 0 dB (typical)
• Terrestrial Tap Gain: -15 dB (typical)
• Satellite Trunk Gain: -2 dB (typical)
• Terrestrial Trunk Gain: -2 dB (typical)
• LNB Power Supply: 18V / 500mA max
• Switching Protocol: DiSEqC 2.0 compatible
• Input/Output Connectors: F-type
• Power Supply: Internal, 230V ~50/60Hz
• Power Consumption: 10W (max)
• Isolation (SAT-SAT): >30 dB
• Isolation (SAT-TER): >30 dB
• Isolation (Output-Output): >25 dB
• DC Pass to LNB: Yes
• Product Class: Class A

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with most satellite and terrestrial TV systems. Always follow local installation regulations.
