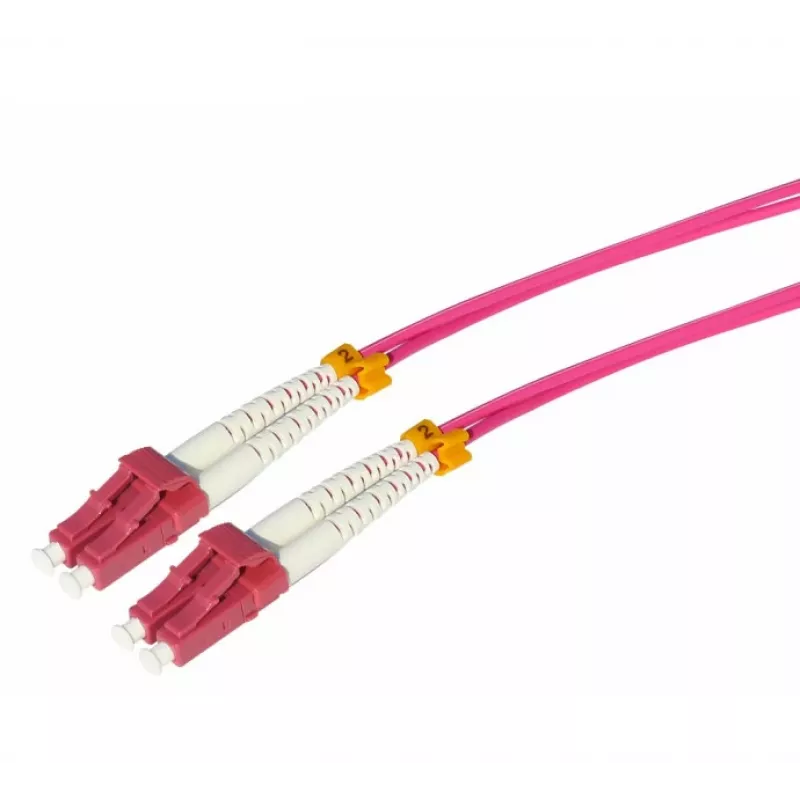

Tecline HD Fiber Optic Patch Cable, 50/125 µm, Multimode OM4, LC Duplex to LC Duplex, Heather Violet, 15 m (798LL15)

High-density data centers and storage networks demand reliable, high-bandwidth connections that minimize signal loss over longer runs. This Tecline HD fiber optic patch cable delivers OM4 multimode performance with LC duplex connectors, ensuring stable links for 100 Gigabit Ethernet and beyond.

Who is it for

Network engineers and IT professionals deploying high-speed backbone links, server-to-switch connections, or SAN infrastructures where consistent, low-latency transmission is critical.

Main features

• 50/125 µm multimode fiber with OM4 rating for extended reach at high data rates
• LC duplex to LC duplex connectors for dense patch panel and transceiver compatibility
• Heather violet jacket for quick identification of OM4 cabling in crowded racks
• 15-meter length suits inter-rack or cross-connect applications
• Supports 100GBASE-SR4 and other high-speed Ethernet standards

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode
• Fiber standard: OM4
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Connector A: LC Duplex
• Connector B: LC Duplex
• Connector gender: Male-Male
• Cable length: 15 m
• Jacket color: Heather Violet
• Cable construction: Duplex
• Bandwidth @ 850nm: 4700 MHz-km
• Bandwidth @ 1300nm: 500 MHz-km
• Attenuation @ 850nm: 2.3 dB/km
• Attenuation @ 1300nm: 0.6 dB/km
• Compliance: TIA/EIA-492AAAD (OM4 Standard)

Tips

Pair with OM4-compatible transceivers to achieve maximum link distances. Use proper bend radius management to maintain signal integrity.
