Techly IDATA DP-KVM2 KVM switch Black

2x1 DP&USB KVM Switch allows you to share a display, USB keyboard & mouse with audio and microphone between two USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840*2160@3OHz with video link rate up to 21.6Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows user to switch between devices via front push button or hotkey. It is fully compatible with a wide variety of Windows and Mac OS operating systems.

Features

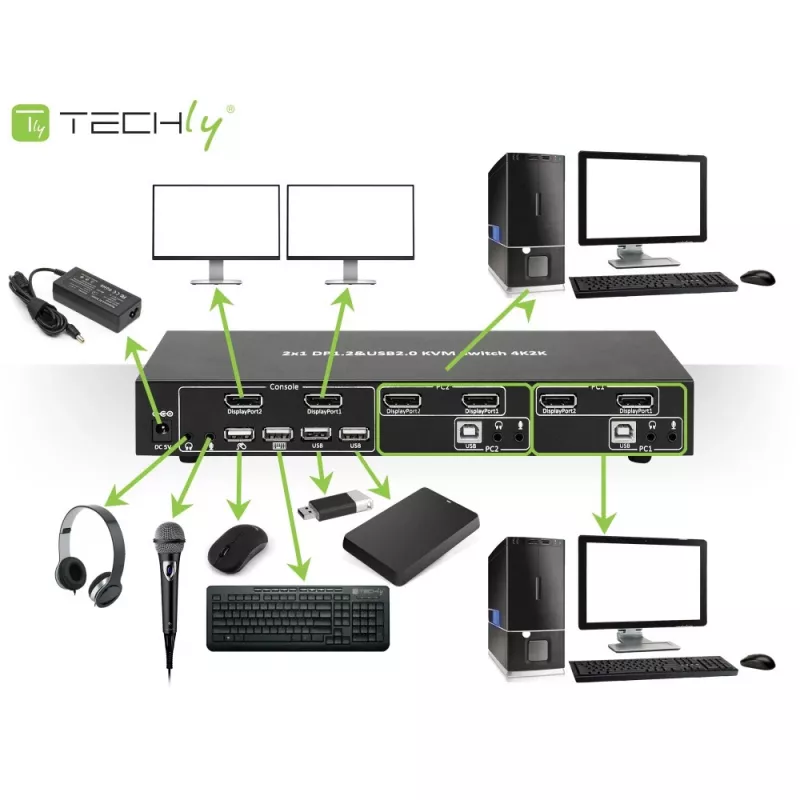

- Switch KVM control on two connected dual-head computers from one workstation with two DisplayPort monitors, one USB keyboard and one USB mouse
- DisplayPort 1.2 compliant
- Integrated 2 port hub for USB 2.0 peripheral sharing
- Supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps
- Supports Dolby True HD and DTS HD Master Audio formats
- Hotkey and push-button switching
- Housing: metal
- Color: black

Technical specifications
- Saves space and equipment cost
- Share an HDTV or display, USB keyboard & mouse with audio and microphone between 2 USB/DP computer and devices*
- Provides an additional USB 2.0 ports with over-current detection and protection

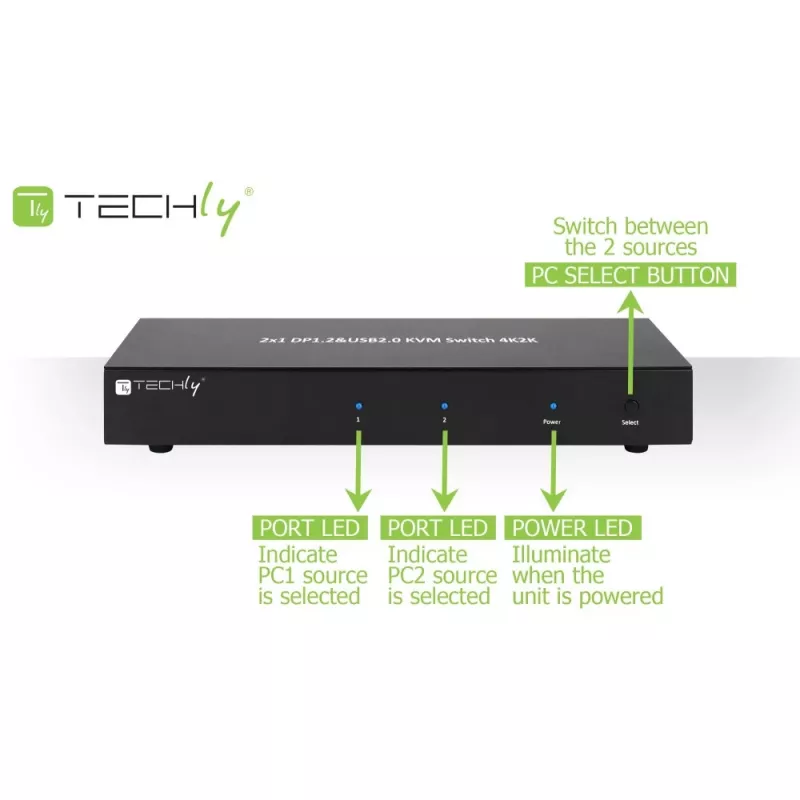

- Switch between devices via front push button or hotkey
- Supports Dolby True HD and DTS HD Master Audio formats
- Metal housing for increased RF shielding
- 1 of the 2 connected devices has to be a computer with a USB connection to enable the switching mechanism

Requirements
- Windows, Mac, Linux computers
- Game consoles, BIu-Ray DVD players and other Consumer Electronics devices

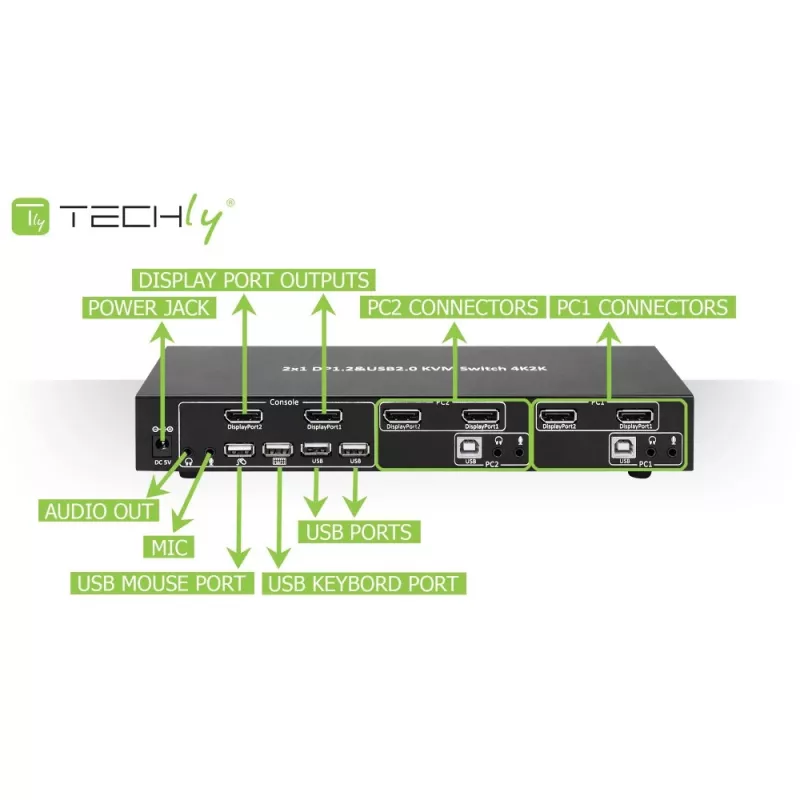

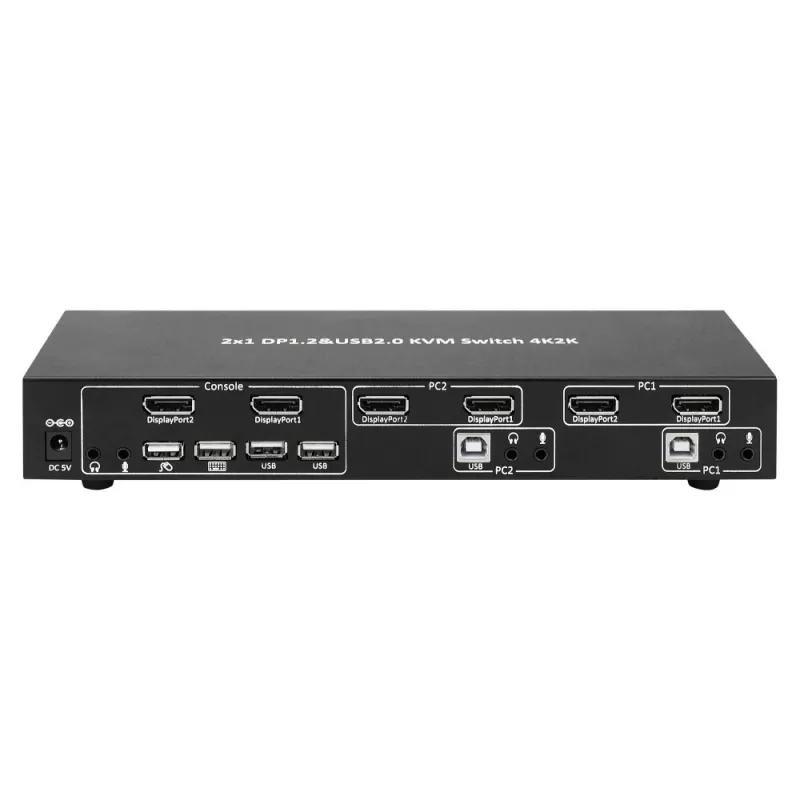

Connections
- Input: 4x DisplayPort, Female
- Input: 2x 4-pin, Type B, USB 2.0 Female
- Output: 2x DisplayPort, Female (Dual head)
- Output: 4-pin, USB 2.0, Type A, Female (for keyboard) x 1
- Output: 4-pin, USB 2.0, Type A, Female (for mouse) x 1
- Output: 4-pin, USB 2.0, Type A, Female x 2
- Output: Microphone jack (to microphone) x 1
- Output: stereo audio jack (to earphone) x 1

Power adapter
- Input: 100 - 240V, 50/60Hz
- Output: 5V DC, 2.0A

Package contents
- 2-Port DisplayPort1.2 Dual-Monitor KVM Switch
- User Manual
- 5V/2A Power Supply

Techly IDATA DP-KVM2. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 21.6 Gbit/s. Product colour: Black, Certification: CE, RoHS. Input voltage: 100 - 240 V, AC input frequency: 50-60 Hz, Output voltage: 5 V. Compliance certificates: CE, RoHS
