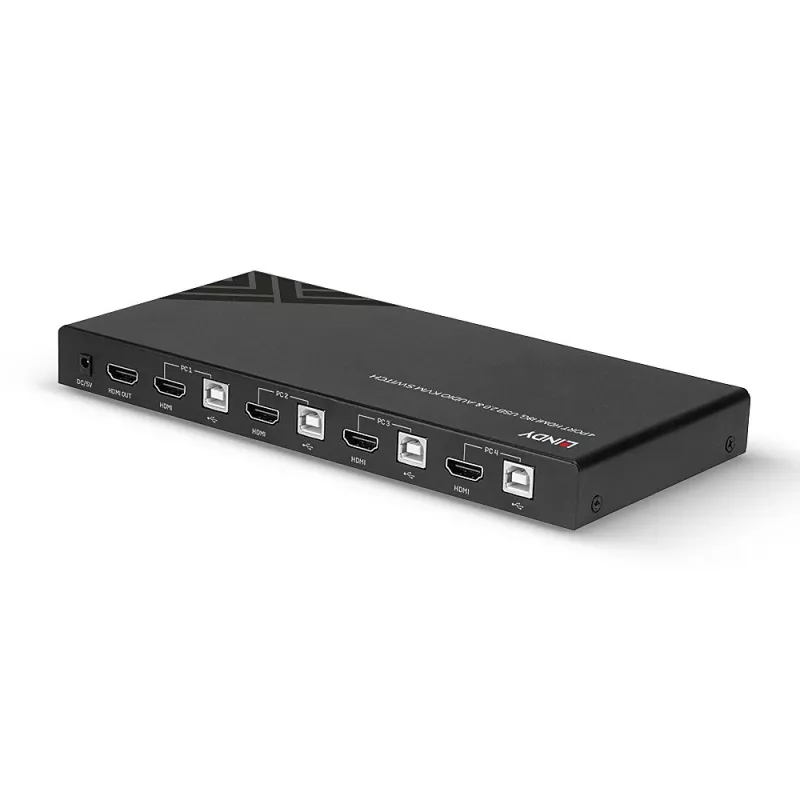

Lindy KVM Switch HDMI 18G USB 2.0 Audio 4 Port 4K Ultra HD

The Lindy 4 Port HDMI 4K60, USB 2.0 & Audio KVM Switch lets one keyboard, mouse and monitor control four HDMI-equipped PCs. It supports HDMI 18G bandwidth and delivers up to 4K@60Hz 4:4:4 resolution with HDR. The unit includes 3.5 mm stereo audio ports for microphone and speaker or headphone connections, and a front-panel USB port for an additional peripheral such as a printer, scanner or external drive. Operation is via the unit's push button or keyboard hotkeys, and the product is covered by a 2 year warranty.

Advantages

This KVM switch provides centralized control of four computers from a single console, reducing desktop clutter and simplifying workflow. Support for 4K@60Hz 4:4:4 with HDR ensures accurate color reproduction and high detail for graphics, video editing and multi-system workstations. Integrated 3.5 mm audio ports and a front USB 2.0 port expand connectivity for microphones, speakers/headphones and one USB peripheral. Two switching methods — front-panel push button and keyboard hotkeys — offer flexible and reliable operation.

Key specifications

• Ports: 4× HDMI inputs, 1× HDMI output (console), 1× USB 2.0 device port (front), USB connections for keyboard/mouse
• Video support: HDMI 18G, up to 4K@60Hz 4:4:4 with HDR
• Audio: 3.5 mm stereo in/out for microphone and speakers/headphones; audio routed via built-in USB converter
• Switching: front-panel push button and keyboard hotkeys
• Warranty: 2 years

How to use

Connect each PC's HDMI and USB (keyboard/mouse) cables to the corresponding input ports on the KVM switch. Attach your monitor to the HDMI console output and plug the keyboard and mouse into the console USB ports. If required, connect speakers or headphones and a microphone to the 3.5 mm audio jacks on the main unit and optionally connect a USB peripheral to the front USB 2.0 port. Switch between connected PCs using the front-panel push button or the keyboard hotkey sequence. Use the front-panel Audio On/Off button to mute or enable the connected audio devices.

Recommendations

For reliable 4K@60Hz 4:4:4 performance, use high-quality HDMI 2.0/2.1 cables and ensure connected PCs support the required resolution and HDR. Keep keyboard and mouse drivers up to date for full hotkey functionality.
