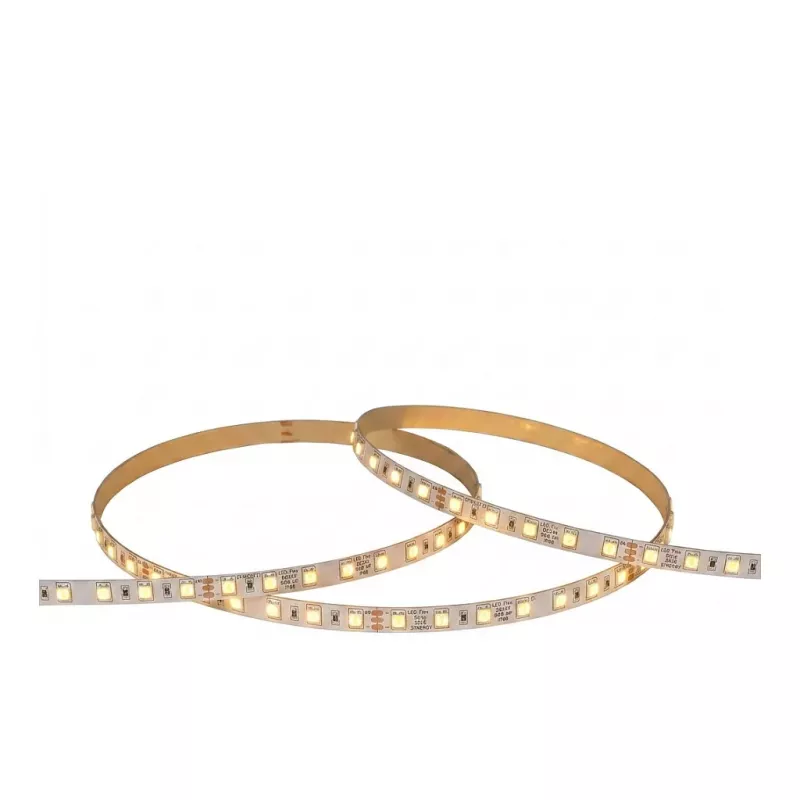

SYNERGY21 LED Flex Strip 3528 - 160 WW DC24V 96W HP IP68

The SYNERGY21 LED Flex Strip 3528 - 160 WW DC24V 96W HP IP68 is a high-performance, flexible LED strip designed for professional indoor and outdoor lighting applications. With 160 SMD 3528 LEDs per meter, it delivers warm white light with a color temperature of 2700K-3000K, providing a cozy and inviting ambiance. The strip operates at DC 24V and consumes 96W total (19.2W per meter), offering a luminous flux of approximately 5600 lumens (1120 lumens per meter). Its IP68 rating ensures dust-tight and waterproof protection, making it suitable for damp or wet environments. The strip is 5 meters long, cuttable every 10 cm (approx. 16 LEDs), and features a beam angle of 120°, CRI >80 Ra, and dimmability with a compatible dimmer. With a lifespan of over 50,000 hours, it is a reliable and energy-efficient lighting solution.

Advantages

High brightness with 160 LEDs per meter, warm white light for comfortable illumination, IP68 waterproof rating for outdoor use, flexible and cuttable for custom lengths, long lifespan of >50,000 hours, and dimmable for adjustable brightness.

Suitable for

• Indoor accent lighting (e.g., under cabinets, coves, shelves)
• Outdoor landscape lighting (e.g., gardens, patios, pathways)
• Architectural lighting (e.g., building outlines, signage)
• Marine and automotive lighting (e.g., boats, RVs)

Key specifications

• LED Chip Type: SMD 3528
• LED Density: 160 LEDs/meter
• Light Color: Warm White
• Color Temperature: 2700K - 3000K
• Operating Voltage: DC 24V
• Total Power Consumption: 96W
• Power Consumption per Meter: 19.2 W/m
• Luminous Flux per Meter: ~1120 Lumens/meter
• Total Luminous Flux: ~5600 Lumens
• IP Rating: IP68
• Strip Length: 5 meters
• Cuttable Segments: Every 10 cm (approx. 16 LEDs)
• Beam Angle: 120°
• CRI: >80 Ra
• Dimmability: Yes (with compatible dimmer)
• Operating Temperature: -20°C to +50°C
• Lifespan: >50,000 hours
• Strip Width: 10 mm
• Strip Thickness: 5 mm
• Mounting: Flexible (e.g., clips, channels)

Recommendations

For optimal performance, use with a compatible 24V LED driver and dimmer. Ensure proper heat dissipation when mounting on heat-sensitive surfaces. Suitable for both indoor and outdoor use, but avoid direct exposure to extreme weather conditions.
