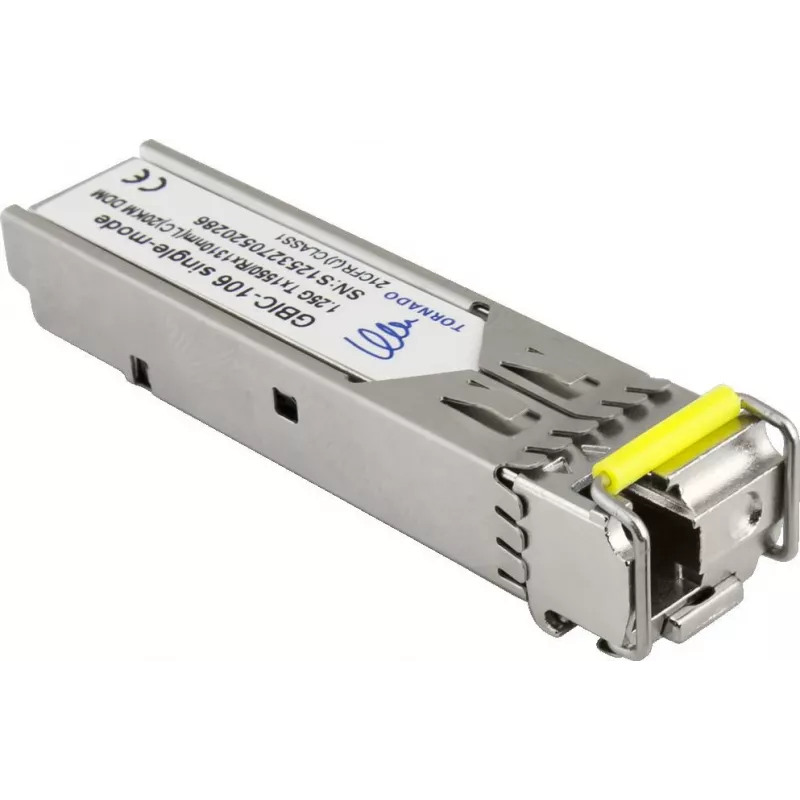

PULSAR GBIC-106 SFP Module 1.25 Gbps 1310 nm 10 km LC Single-Mode

The PULSAR GBIC-106 is a high-performance SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet applications. It operates at a data rate of 1.25 Gbps over single-mode fiber (SMF) with a wavelength of 1310 nm, supporting transmission distances up to 10 km. This hot-pluggable module features an LC duplex connector and is fully compliant with MSA and IEEE 802.3z standards, ensuring seamless integration with a wide range of networking equipment.

Advantages

Reliable and cost-effective solution for extending network reach in data centers, enterprise networks, and telecommunications. With Digital Diagnostic Monitoring (DDM) support, real-time monitoring of optical parameters is possible, aiding in proactive network maintenance. The metal casing ensures durability and effective heat dissipation.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• Fiber-to-the-x (FTTx) deployments

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Fiber Type: Single-Mode (OS1/OS2)
• Wavelength: 1310 nm
• Max Distance: 10 km
• Connector: LC Duplex
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Supply: 3.3V
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, IEEE 802.3z

Recommendations

For optimal performance, pair with single-mode fiber patch cables (OS1/OS2) and ensure proper cleaning of optical connectors. Suitable for use with switches, routers, and media converters that support SFP interfaces.
