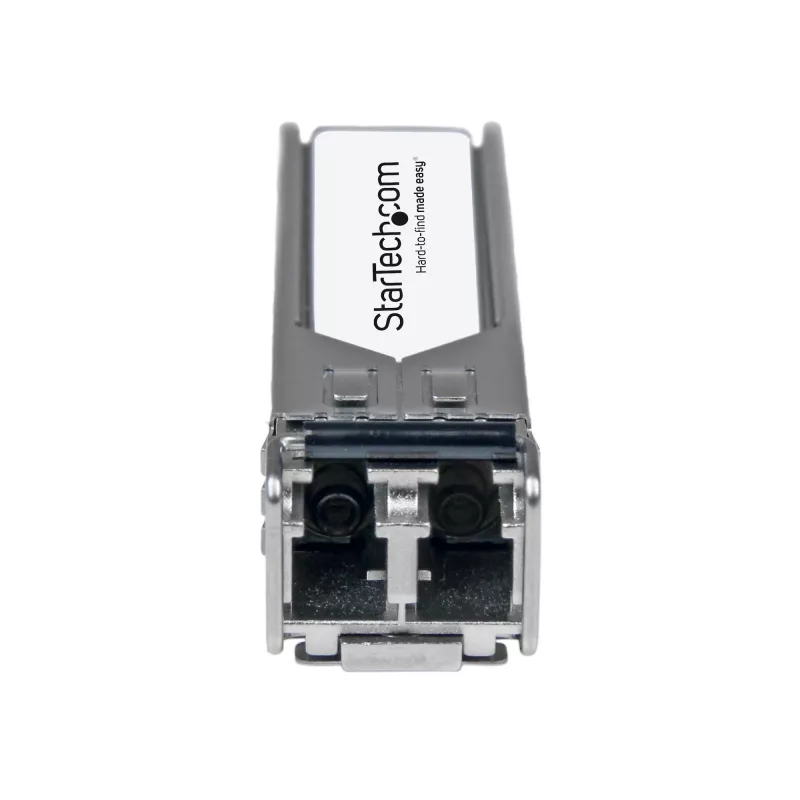

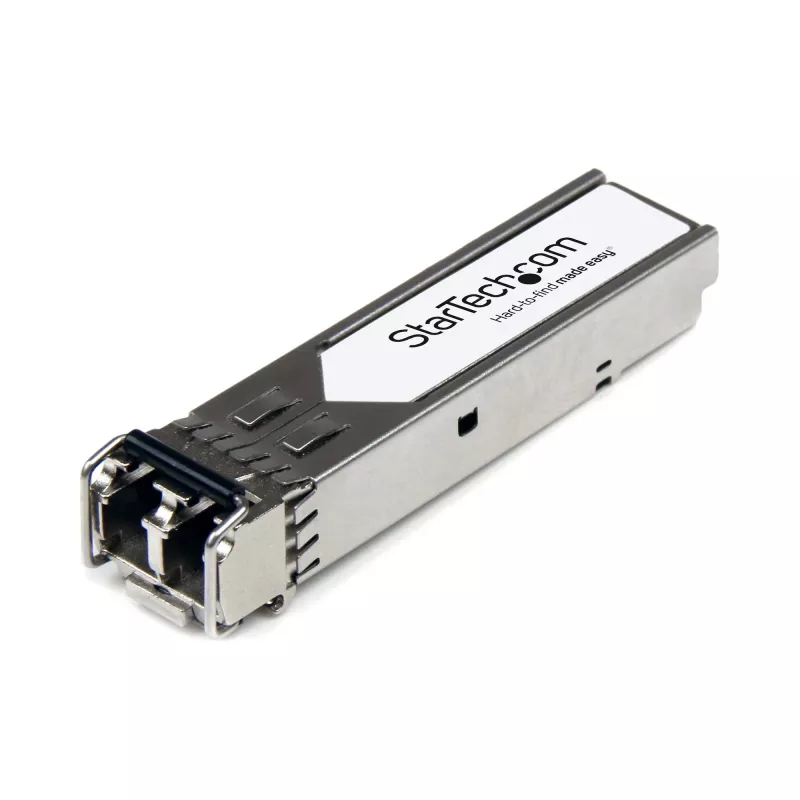

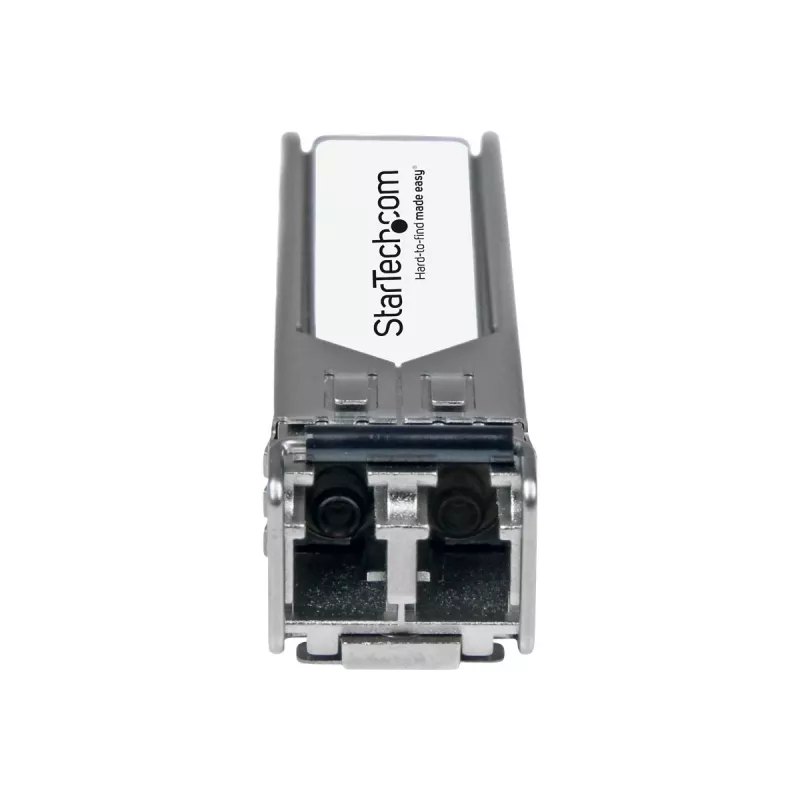

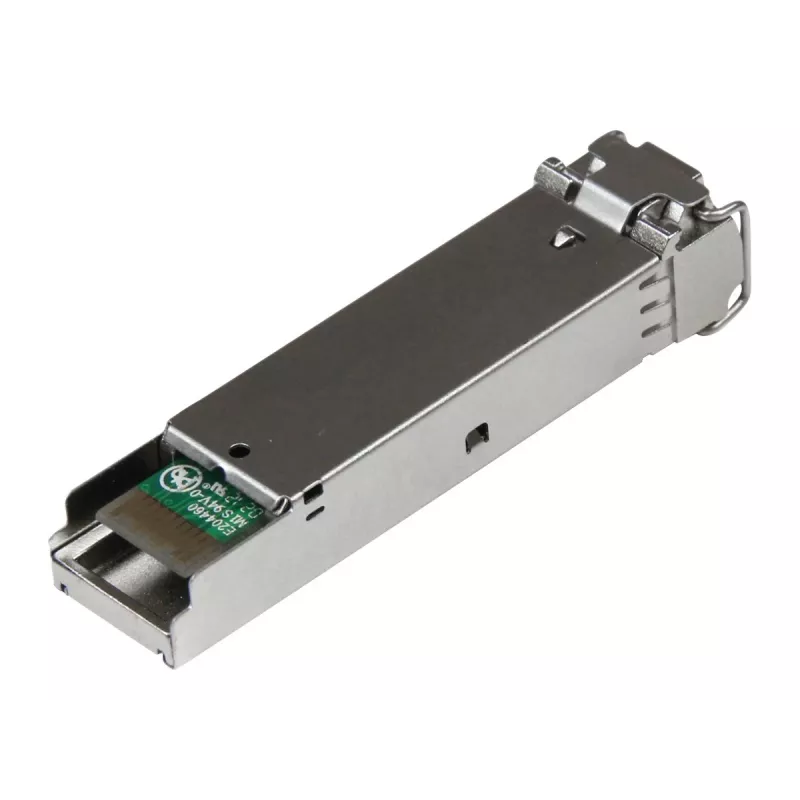

StarTech.com XG-SR-ST SFP+ Transceiver Module, 10GBASE-SR, Brocade Compatible, LC Multimode, 850nm, DDM

Achieve seamless 10 Gigabit Ethernet connectivity in Brocade networks with the StarTech.com XG-SR-ST SFP+ transceiver. This hot-swappable module delivers reliable, high-bandwidth performance over multimode fiber at distances up to 300 metres on OM3 cabling, making it an ideal choice for data centre, enterprise, and campus backbone deployments.

Overview

The XG-SR-ST is a high-performance SFP+ optical transceiver engineered for 10GBASE-SR applications. It is fully compatible with Brocade networking equipment and supports Digital Diagnostics Monitoring (DDM) for real-time optical parameter tracking. Designed with an 850nm wavelength and LC duplex connector, this module offers a cost-effective solution for short-range multimode fiber links.

What stands out

• Brocade-compatible SFP+ module ensures broad interoperability and hassle-free integration.
• Digital Diagnostics Monitoring (DDM) provides real-time voltage, temperature, and optical power monitoring.
• Hot-swappable design enables installation or replacement without network downtime.
• Low power consumption (<1.0 W) reduces data centre energy costs.
• Supports OM2 and OM3 multimode fiber for flexible cable plant options.

Technical details

• Data transfer rate: 10 Gbps (10 Gigabit Ethernet)
• Connector: LC duplex
• Wavelength: 850 nm
• Maximum transfer distance: 300 m (984 ft) on OM3, 82 m (269 ft) on OM2
• Industry standard: IEEE 802.3ae 10GBASE-SR
• MTBF: 1,397,130 hours
• Operating temperature: 0°C to 70°C (32°F to 158°F)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)
• Relative humidity: 5–95% non-condensing

Our verdict

For reliable, high-speed network links in Brocade environments, the StarTech.com XG-SR-ST delivers outstanding value. With DDM support, hot-swap convenience, and robust build quality, it is a smart choice for IT professionals upgrading to 10G.
