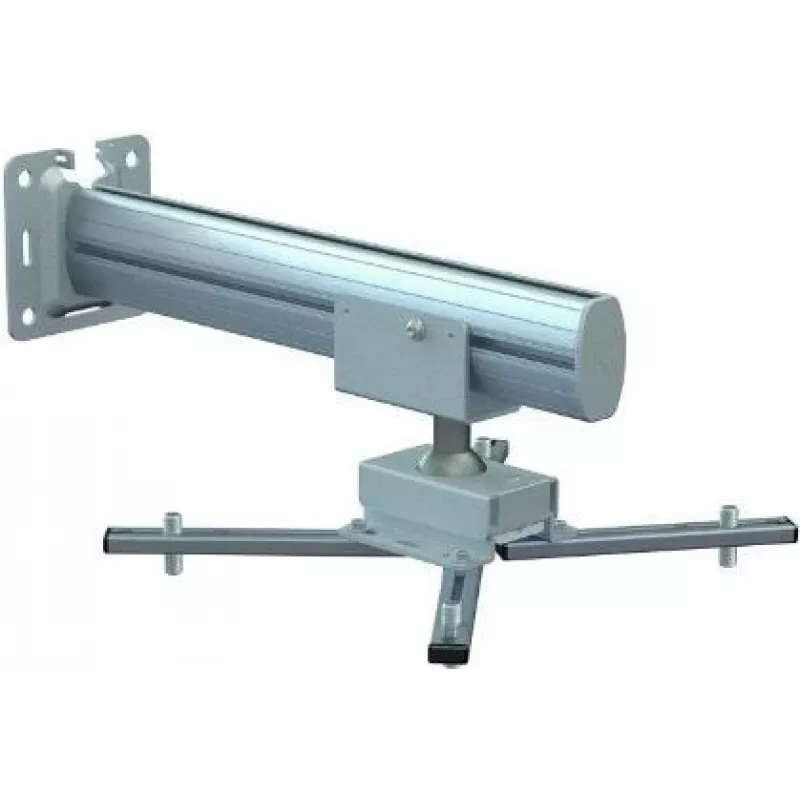

Wall Mount Kindermann Premium W Project Mount Silver

The Kindermann Premium W Project Mount is a wall-mounted projector bracket made of aluminium with a silver finish, designed to hold projectors up to 25 kg. The mount features a stepless extension to set the distance from the wall up to 380 mm and includes a fully covered interior cable channel and pre-assembled components for faster installation.

Advantages

The mount provides a 3D aluminium ball-point joint that allows tilt of ±20° in all directions and rotation up to ±180°, enabling precise projector alignment. It supports quick exchange of the projector and offers adjustable fixing points from 138 mm to 378 mm to accommodate different projector footprints. The construction combines anodised aluminium and coated steel (silver RAL 9006) for durability while keeping a neat appearance.

Suitable for

Key specifications

How to use

Attach the pre-assembled wall plate to a suitable wall with appropriate anchors (not included) and secure the mount according to wall type. Adjust the extension so the projector holder centre is at the required distance, up to 380 mm. Fasten the projector using the supplied screw set and height-adjustable distance elements, aligning fixing points within the 138–378 mm range. Use the 3D ball joint to tilt and rotate the projector for correct projection geometry, then route cables through the internal cable channel and close the cover.

Recommendations

Ensure the wall structure can support the combined weight of the mount and projector; use appropriate wall anchors and follow local building regulations. Check projector screw sizes before installation and tighten all fasteners securely. For precise alignment, perform test projections and fine-tune tilt and rotation using the ball joint.
