Spray nozzle Gardena 13216-20 suitable for drip irrigation system

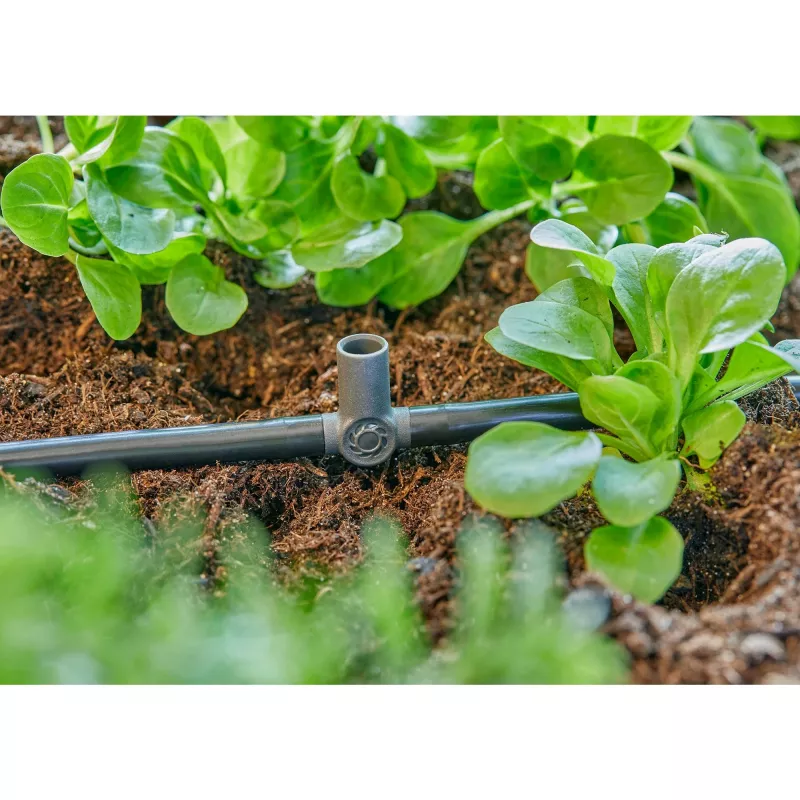

Use the GARDENA T-Joint for Spray Nozzles and Endline Drip Heads 4.6 mm (3/16") to secure spray nozzles and endline drip heads into a 4.6 mm supply pipe. The pack contains five T-joints with closing caps. Each T-joint has two connections for the supply pipe and a branch for installing a spray nozzle or converting an endline drip head into an inline drip head. The part allows connection of an extension pipe to position a spray nozzle for targeted irrigation. The product is compatible with the GARDENA Micro-Drip-System and is made in Europe.

Advantages

The T-joints provide a stable, leak-resistant connection for endline drip heads and spray nozzles and are designed for quick installation thanks to GARDENA Easy & Flexible connection technology. The components are reusable and can be detached and reconfigured without damage. When combined with a separately available Master Unit 1000 (Art. No. 13333-20) or Master Unit 2000 (Art. No. 13310-20) the Micro-Drip-System maintains even water pressure and reliable waterproofing.

Suitable for

• Micro-Drip-System supply pipe 4.6 mm (3/16")
• Fixing endline drip heads and attaching spray nozzles
• Converting endline drip heads to inline drip heads
• Customising irrigation for flowerbeds, bedding plants and small garden areas

Key specifications

• Supply pipe diameter: 4.6 mm (3/16")
• Package contents: 5 T-joints with closing caps
• Material: durable plastic (made in Europe)
• Compatible with: GARDENA Micro-Drip-System; Master Unit 1000 and 2000 (sold separately)

How to use

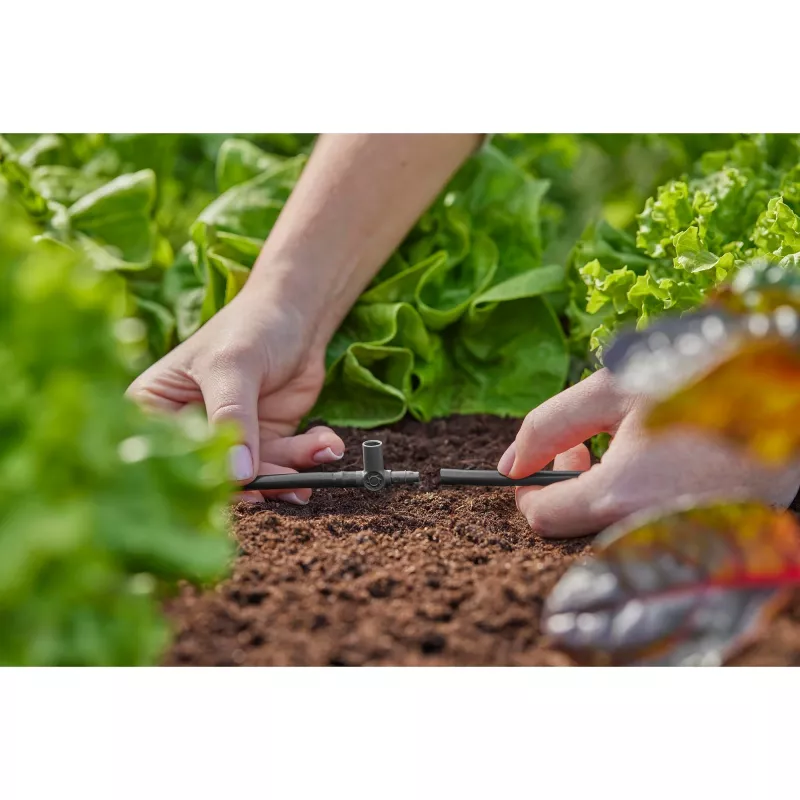

Push the T-joint firmly into the 4.6 mm supply pipe at the chosen location and twist in as required to secure. Install the spray nozzle or endline drip head into the branch connection; if needed, attach an extension pipe to position the spray nozzle. Use the closing caps where branches are not required. For an even water distribution and leakproof operation, connect the system to a Master Unit 1000 or 2000.

Recommendations

Check that the supply pipe and all connections are free of debris before installation. Reuse and reconfigure the T-joints as needed, and store spare components protected from prolonged UV exposure to extend service life.
