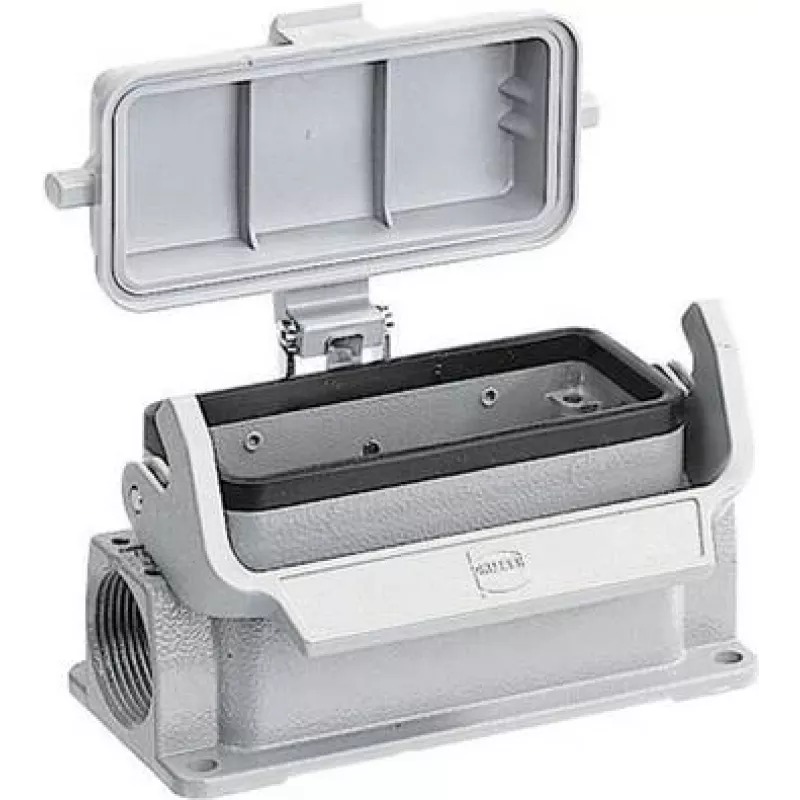

Socket housing Harting 09 30 024 1255 IP65 16A

Harting socket housing 09 30 024 1255 IP65 16A is a compact protective enclosure designed for a 16A electrical connection. It provides dust- and water-resistant protection rated to IP65, helping to maintain reliable power connections in industrial and outdoor installations. The housing is intended to secure mating connectors and to reduce the risk of environmental damage to contacts while offering a robust, space-efficient solution for fixed or semi-permanent installations.

Advantages

The housing offers IP65 ingress protection against dust and low-pressure water jets, ensuring connector integrity in dusty or wet conditions. Its compact footprint and robust construction provide mechanical protection and ease of installation in constrained spaces. The product supports 16A electrical connections and is compatible with standard socket insert sizes, enabling straightforward integration into existing systems. Material selection and sealing design contribute to durable performance in demanding environments.

Suitable for

• Outdoor power outlets for temporary or permanent installations
• Industrial machinery and equipment requiring protected connector interfaces
• Worksites and environments with dust, rain, or spray exposure
• Panels or enclosures where a compact, sealed socket opening is needed

Key specifications

• Protection class: IP65 (dust tight, protected against water jets)
• Rated current: 16 A
• Form factor: compact socket housing for mounting
• Suitable for use with compatible 16A socket inserts and connectors
• Robust construction for industrial and outdoor environments

How to use

Mount the housing on a suitable panel or surface using the recommended fasteners and cutout dimensions for the compatible socket insert. Install the appropriate 16A socket insert or connector into the housing and secure it according to the connector manufacturer's instructions. Ensure seals and gaskets are correctly positioned to maintain IP65 protection. Connect wiring following applicable electrical standards, isolate power before installation or maintenance, and verify correct operation after assembly.

Recommendations

Use the housing with connectors and inserts that match the 16A rating and recommended dimensions. Regularly inspect seals and the mounting interface for wear or damage, especially in high-exposure environments, and replace gaskets or tighten fasteners if ingress protection appears compromised.
