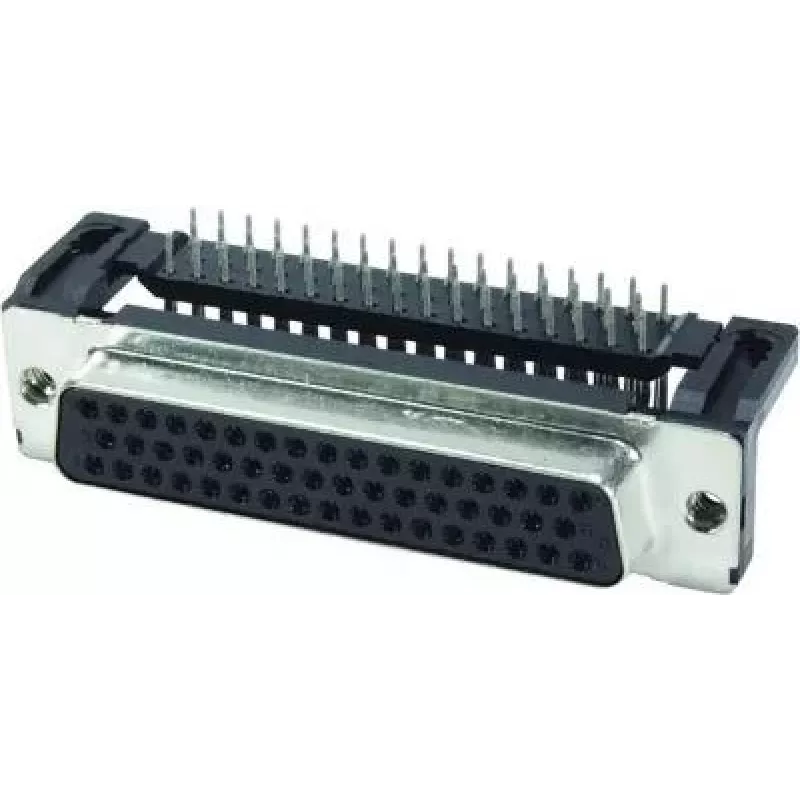

Wire connector Harting 09 66 512 6601 Black Silver Steel Copper alloy

The Harting 09 66 512 6601 wire connector is a compact electrical connector designed for reliable signal and power interconnections. Constructed with a steel housing and a copper alloy contact/shield, the connector combines mechanical strength with conductive performance. The black and silver finish provides visual contrast for easy identification during installation. The product is RoHS compliant and supplied in packs suitable for small to medium-scale wiring tasks.

Advantages

The steel construction offers robust mechanical protection and resistance to deformation, while the copper alloy contact ensures consistent electrical conductivity and low contact resistance. The two-tone finish aids visual identification and alignment. Supplied in multi-piece packs, the connector supports batch installations and reduces the need for frequent reordering. Compliance with RoHS indicates the materials used meet common restrictions on hazardous substances.

Suitable for

• Industrial control panel wiring and terminal connections
• Signal and low- to medium-power electrical assemblies
• Factory automation and machine cabling where mechanical durability is required
• Maintenance and repair tasks requiring replacement connector parts

Key specifications

• Housing material: steel for mechanical strength
• Contact/shield material: copper alloy for electrical conductivity
• Finish: black and silver for visual contrast
• Compliance: RoHS compliant
• Pack quantity: supplied in packs suitable for multiple installations
• Weight per piece: approximately 23.2 g

How to use

Prepare the cable ends according to the applicable wiring standards, ensuring correct conductor stripping length and clean contact surfaces. Insert conductors fully into the connector interface and secure according to the mating system and panel or harness mounting method used. Verify mechanical seating and electrical continuity with appropriate test equipment after assembly. Follow the installation practices and torque values recommended by the equipment manufacturer for mating hardware.

Recommendations

Store connectors in a dry, temperature-controlled environment to prevent corrosion of metal surfaces. When used in environments with vibration or mechanical stress, confirm mounting retention and consider additional strain relief measures. For optimum electrical performance, ensure mating contacts are clean and free from oxidation before assembly.
