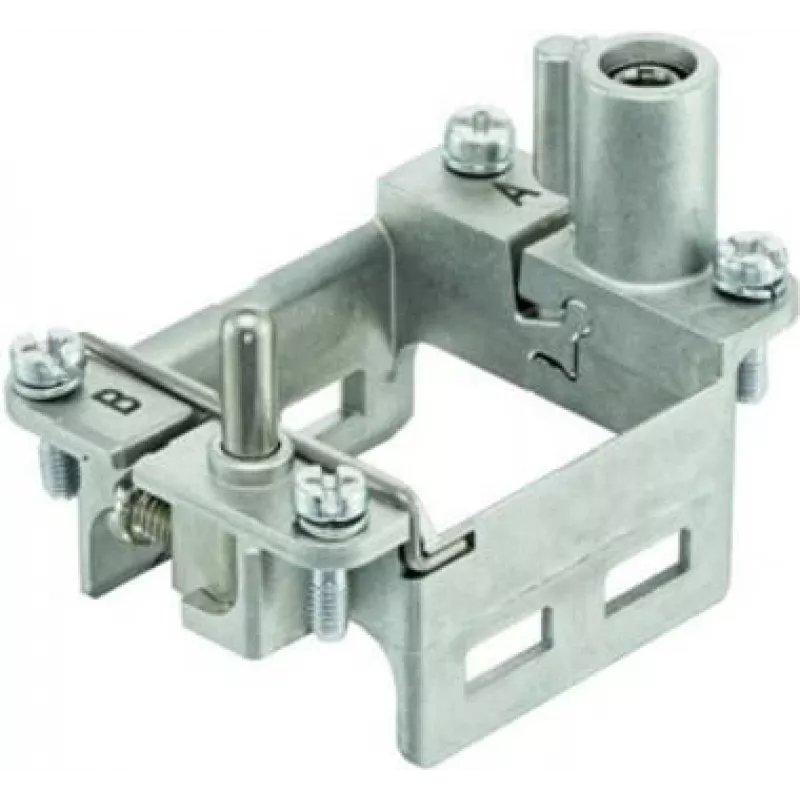

Joint Frame Harting 09140060361 — 1 piece, metal mounting frame for rectangular connector

Harting Joint Frame 09140060361 is a single-piece metal mounting frame designed to secure compatible rectangular connectors in panels and housings. Supplied as one unit, the frame provides mechanical support, correct alignment and stable mating for industrial and electronic enclosures where a durable connector mounting solution is required.

Advantages

The metal construction offers robust mechanical strength, resistance to deformation and stable fixation of the rectangular connector under mechanical stress. The single-piece design simplifies installation and reduces the number of components required. The frame ensures precise alignment for reliable mating, minimizing wear on contacts and improving long-term connector performance.

Suitable for

• Mounting rectangular connectors in control cabinets and switchgear
• Panel and housing installations in automation equipment
• Industrial machinery where durable connector fixation is needed
• Electronic enclosures requiring secure connector alignment

Key specifications

• Material: metal construction for mechanical durability
• Configuration: single-piece mounting frame supplied as one unit
• Application: panel or housing mounting for rectangular connectors
• Function: provides alignment and mechanical support for connector mating
• Environment: suitable for industrial and electronic enclosure use

How to use

Position the mounting frame in the panel cut-out or housing aperture so that the connector aligns with the frame opening. Insert the compatible rectangular connector into the frame and secure according to the connector manufacturer’s fastening method, ensuring the frame holds the connector firmly against the panel or enclosure surface. Verify alignment and mating by checking that the connector engages smoothly without excessive play.

Recommendations

Use with compatible rectangular connectors and follow the connector manufacturer's mounting and torque specifications. Ensure the panel cut-out dimensions match the frame profile and check that surrounding components do not obstruct connector mating. For installations exposed to vibration or mechanical load, confirm that all fasteners are tightened to the recommended levels and inspect periodically for secure fixation.
