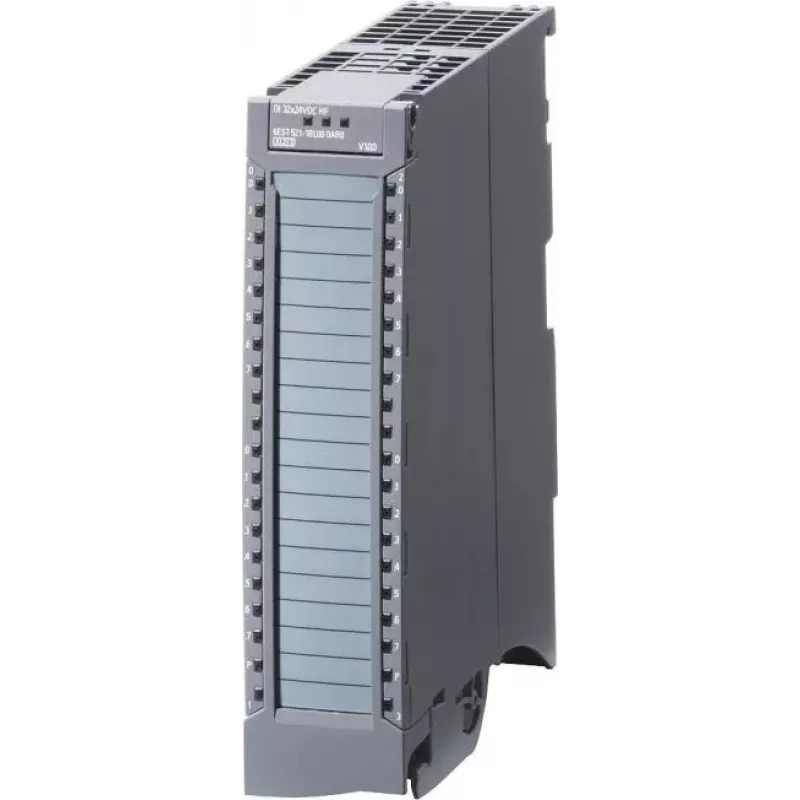

Siemens SIMATIC S7-1500 Digital Input Module DI 32x24VDC 6ES7521-1BL00-0AB0

The Siemens SIMATIC S7-1500 Digital Input Module DI 32x24VDC (6ES7521-1BL00-0AB0) is a high-performance digital input module designed for the SIMATIC S7-1500 automation system. It provides 32 digital inputs for 24 V DC signals, offering reliable and fast signal acquisition for industrial control applications. With adjustable input delays and comprehensive diagnostic functions, this module ensures precise monitoring and fault detection.

Advantages

• 32 digital inputs for 24 V DC in a compact design
• Adjustable input delay from 0.05 ms to 20 ms for flexible application
• Comprehensive diagnostics including wire break, short circuit, and supply voltage monitoring
• Process and diagnostic alarms for immediate fault notification
• Galvanic isolation between channels, backplane bus, and load voltage for enhanced safety

Suitable for

• Industrial automation and control systems
• Machine building and manufacturing
• Process control and monitoring
• Building automation

Key specifications

• Module Type: Digital Input Module
• Series: SIMATIC S7-1500
• Number of Digital Inputs: 32
• Input Voltage Type: DC
• Rated Input Voltage: 24 V DC
• Input Current per Channel: Approx. 2.5 mA
• Input Delay (adjustable): 0.05 ms to 20 ms
• Isolation: Yes (between channels, backplane bus, and load voltage)
• Wiring Type: 2-wire or 3-wire connection
• Diagnostics Functions: Wire break, short circuit, supply voltage monitoring, channel diagnostics
• Interrupts: Process alarms, diagnostic alarms
• Front Connector Required: Yes (40-pin)
• Power Consumption (internal): Max. 0.7 W
• Current Consumption (from backplane bus): Max. 30 mA
• Permissible Potential Difference: 75 V DC / 60 V AC
• Short-circuit Protection (inputs): No
• Module Version: Basic (BA)
• Operating Temperature: 0 °C to 60 °C

Recommendations

For optimal performance, use with a compatible SIMATIC S7-1500 CPU and a 40-pin front connector (sold separately). Ensure proper wiring and configuration according to the manual.
