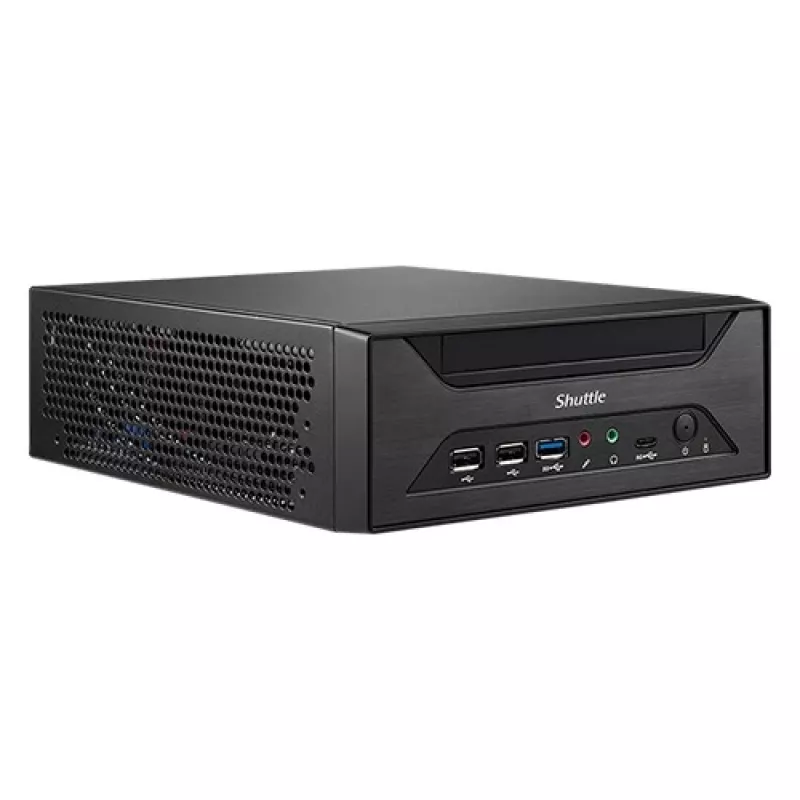

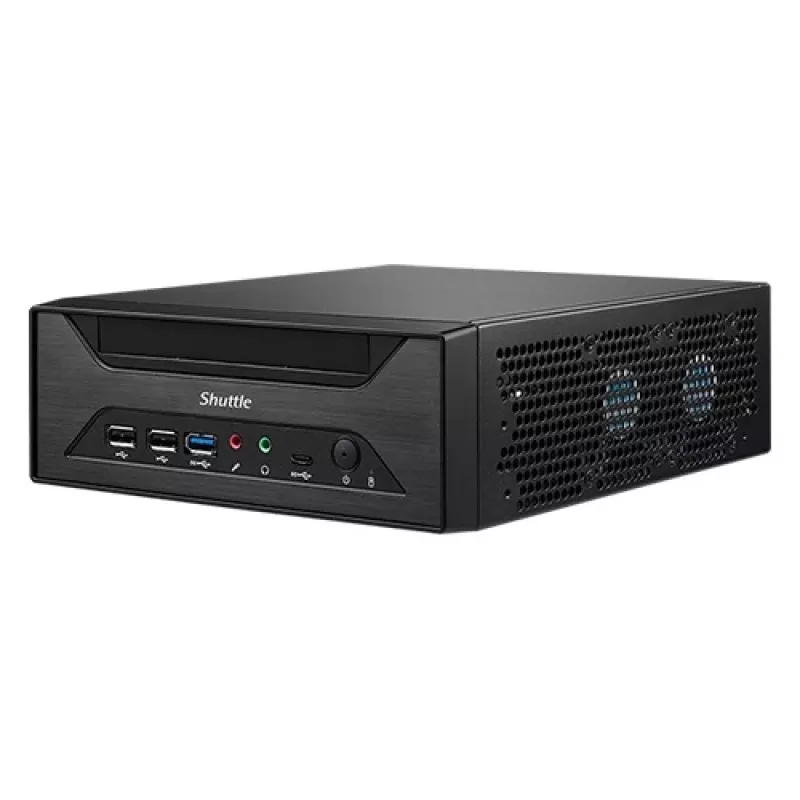

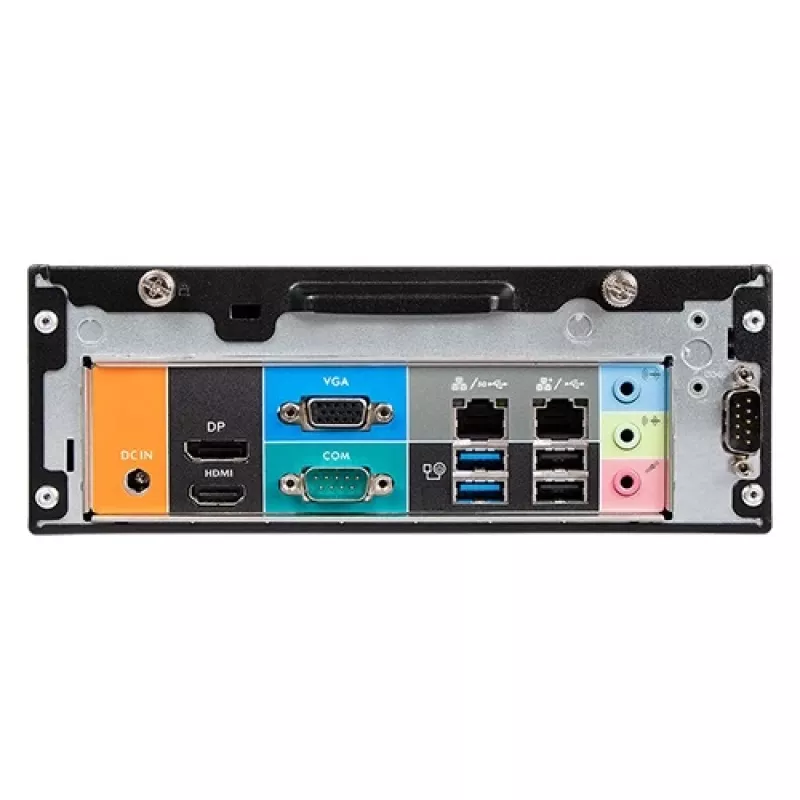

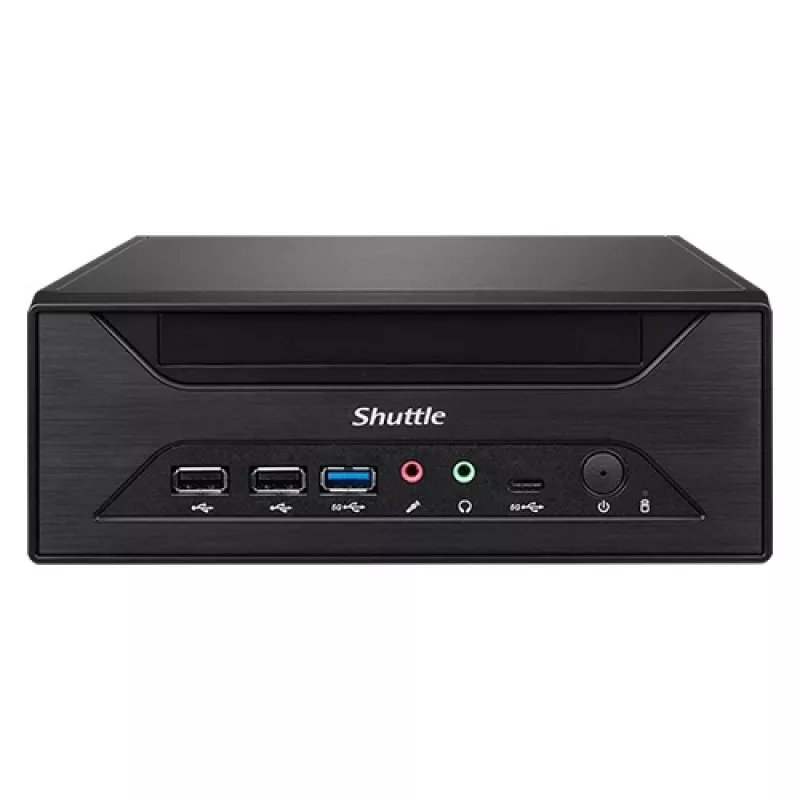

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25 inch, 2x 3.5 inch, 2x M.2, 24/7 permanent operation
R5,962
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your BusinessShuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used sim... Read More
Stock 6 Code 130518 Brand SHUTTLE Model XH610 Warranty 2 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation. Chassis type: 3.5L sized PC, Product type: PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

Key Highlights
  • 3.5L sized PC Black
  • 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
  • HDD & SSD 2.5"
  • On-board graphics card
  • Ethernet LAN
Specifications
AC adapter output current
6.32 A
AC adapter output voltage
19 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
BIOS type
AMI
Built-in processor
No
Built-in speaker(s)
No
Cable lock slot
Yes
Cable lock slot type
Kensington
Chassis type
3.5L sized PC
COM ports quantity
2
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Compliance certificates
RoHS
Cooling type
Active
Country of origin
China
DC-in jack
Yes
Depth
238 mm
DisplayPort version
1.4a
DisplayPorts quantity
1
Drivers included
Yes
ECC
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card family
Intel
Harmonized System (HS) code
84733080
HDMI ports quantity
1
HDMI version
2.0b
Headphone outputs
1
Height
72 mm
LED indicators
HDD, Power
Linux operating systems supported
Yes
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Memory voltage
1.2 V
Microphone in
Yes
Motherboard chipset
Intel H610
Non-ECC
Yes
Number of M.2 (M) slots
1
Number of memory slots
2
Number of power supply units
1
Number of processors supported
1
NVMe
Yes
On-board graphics card
Yes
Operating relative humidity (H-H)
10 - 90%
Operating system installed
No
Operating temperature (T-T)
0 - 50 °C
Package weight
3.5 kg
Power supply
120 W
Power supply type
External AC adapter
Processor socket
LGA 1700
Product colour
Black
Product type
PC barebone
Quick start guide
Yes
Storage drive interface
M.2, PCI Express, Serial ATA III
Storage drive sizes supported
2.5"
Supported memory clock speeds
2133,2400,2666,2933,3200 MHz
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Sustainability certificates
ENERGY STAR, ErP
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
VGA (D-Sub) ports quantity
1
Weight
2.2 kg
Wi-Fi
No
Width
200 mm
Windows operating systems supported
Windows 10, Windows 11

Leaflet

Open Leaflet

Manual

Open Manual

Document

Open Document
