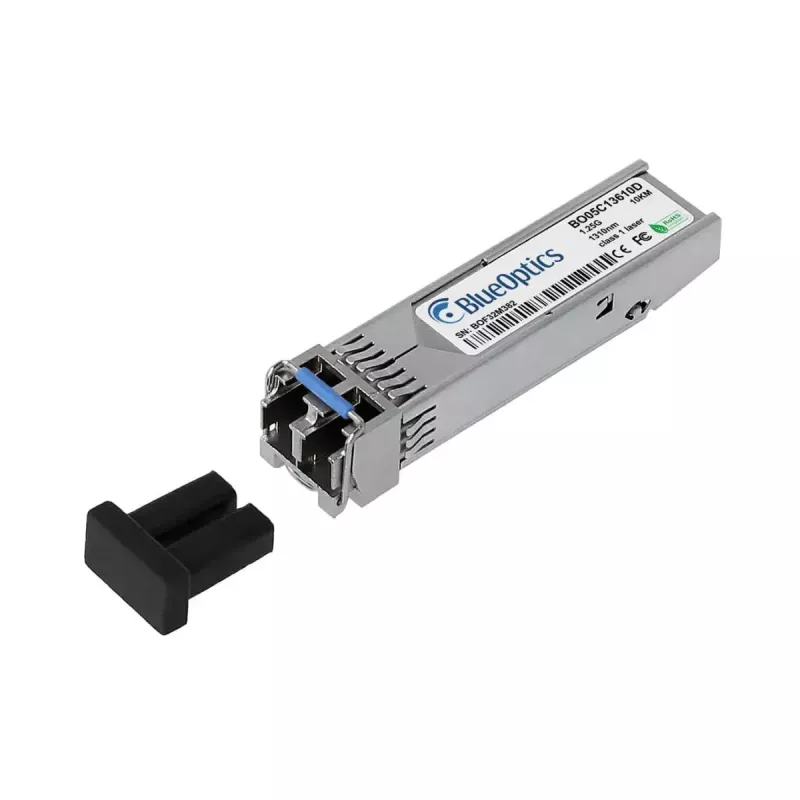

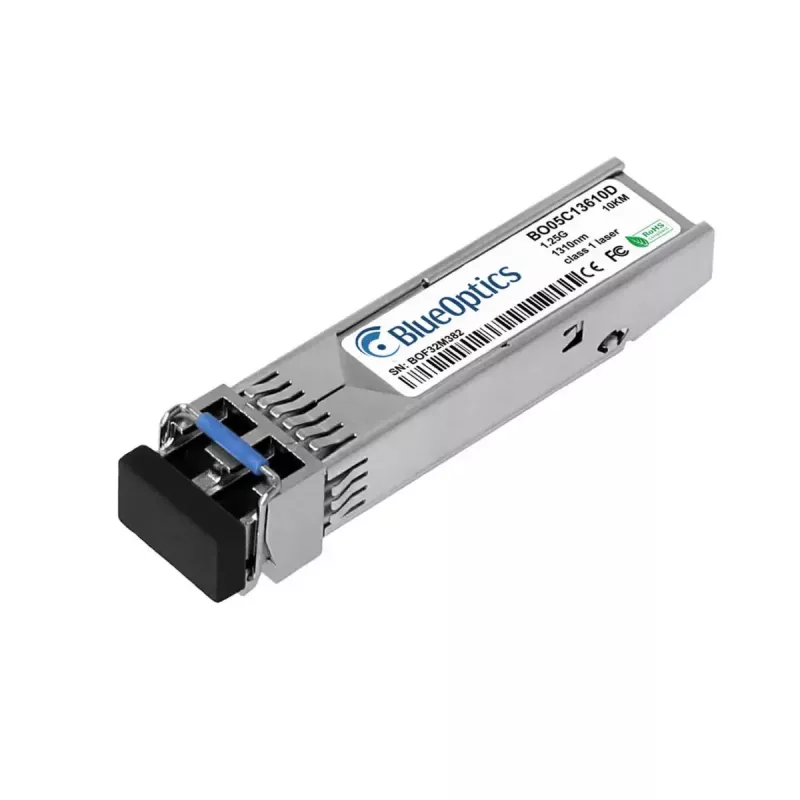

SFP transceiver module BlueOptics OAG-SFP-GIG-LX-BO Fiber optic 10000 m

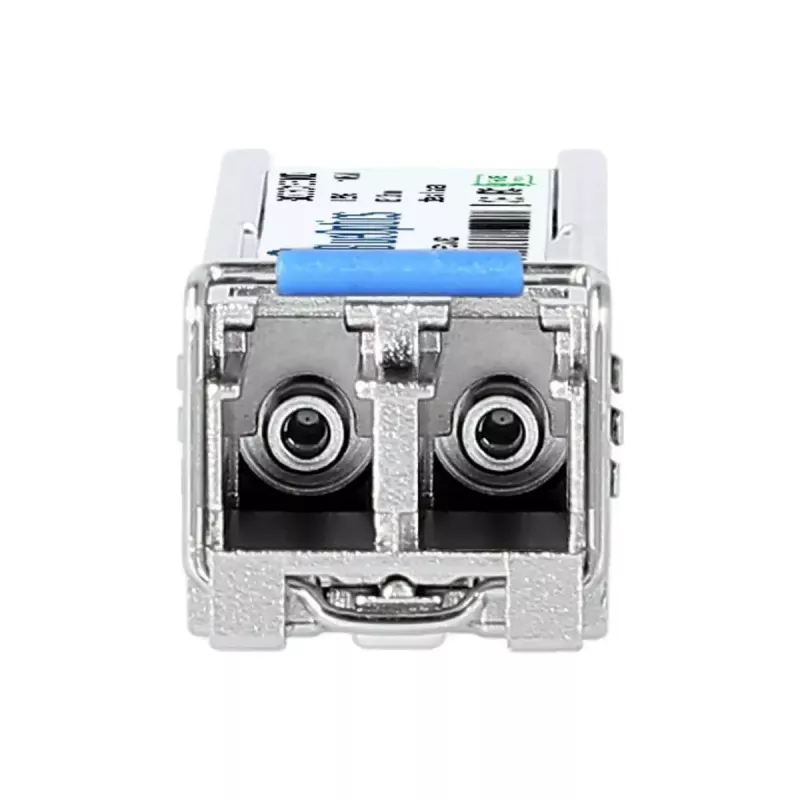

The BlueOptics OAG-SFP-GIG-LX-BO is an SFP fiber optic transceiver module engineered for single-mode optical links with reach up to 10,000 m. Constructed with an aluminium housing and weighing 20 g, the module complies with MSA form-factor expectations and supports 1000BASE-LX transmission over LC duplex connectors. It provides a 1310 nm transmitter and receiver pair suitable for Ethernet, Fibre Channel over Ethernet or SDH/SONET applications requiring up to 1.25 Gbit/s line rate on long-reach single-mode fiber.

Advantages

The module offers a compact, lightweight aluminium design for durable installation in SFP ports while maintaining thermal stability and mechanical protection. It follows industry-standard electrical and optical interfaces to enable wide hardware compatibility when the host platform supports standard 1000BASE-LX SFP modules. Built according to MSA specifications and populated with components matched for long operational life, the transceiver supports digital diagnostics (DDM/DOM) where the host system provides that capability, aiding remote monitoring of supply voltage, laser bias current, transmit power, receive power and temperature.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into a compatible SFP port on switches, routers or storage interfaces while the device is powered down or in hot-plug supported condition per the host vendor recommendations. Connect LC duplex single-mode fiber patch cords ensuring correct Tx/Rx polarity. Verify link establishment and correct data rate in the host operating system or management interface. If digital diagnostics are required, enable and read DDM/DOM parameters via the host platform to monitor supply voltage, laser bias, transmit and receive power, and module temperature.

Recommendations

Use quality single-mode LC duplex patch cords and appropriate patch panels to achieve the specified 10 km reach. Confirm host platform compatibility with generic 1000BASE-LX SFP modules and ensure DDM/DOM support if remote diagnostics are required. Avoid excessive bending or stress on fiber connectors and observe ESD precautions when handling the transceiver.
