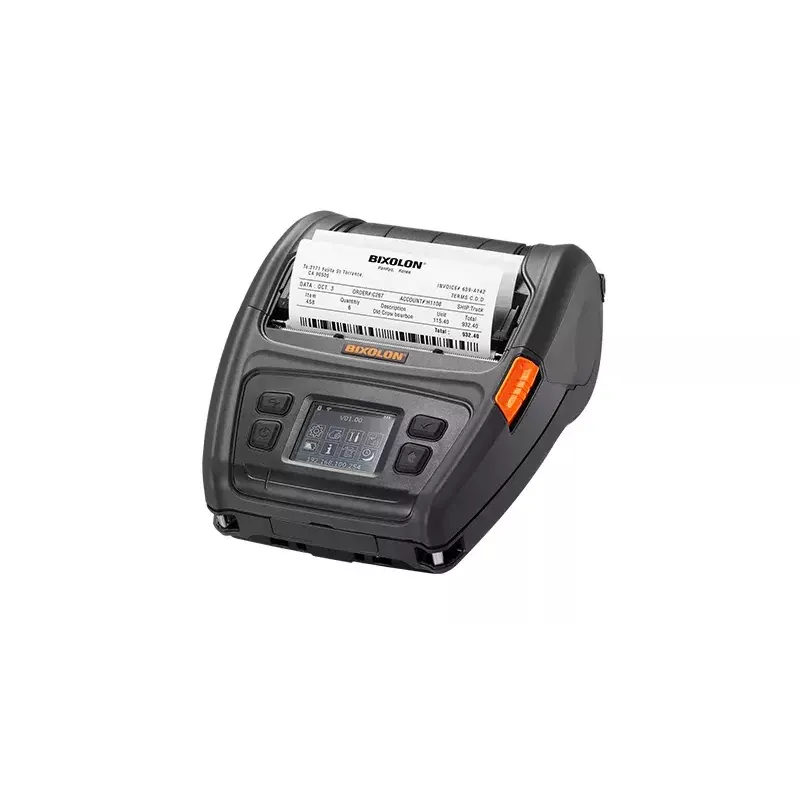

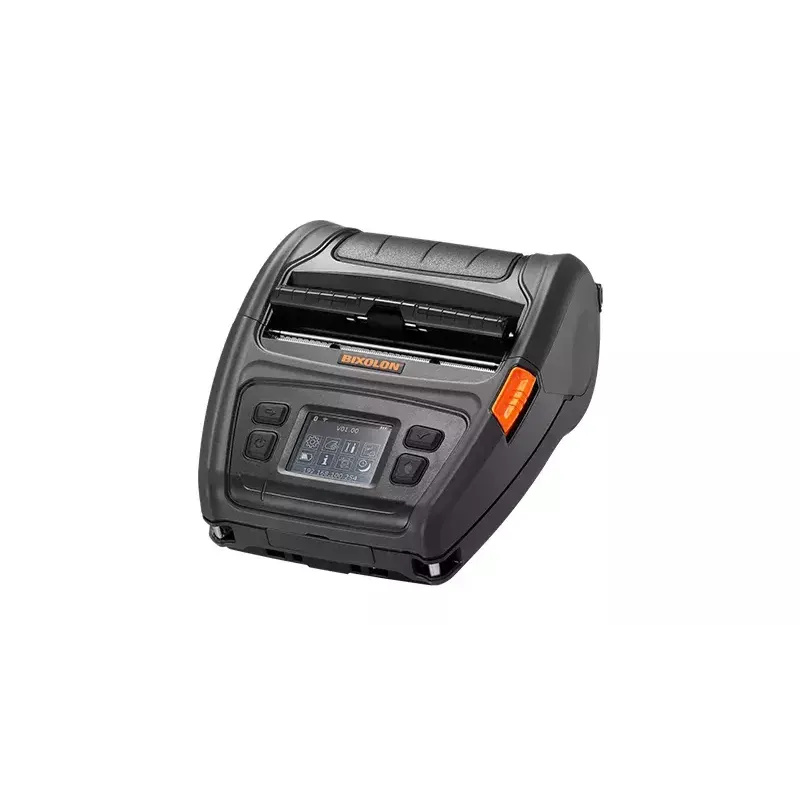

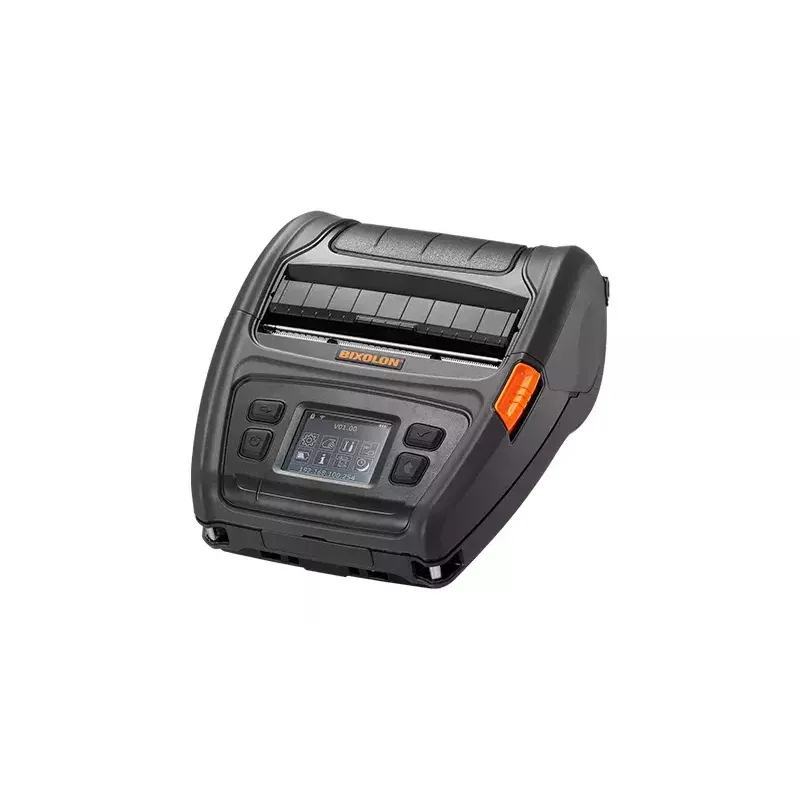

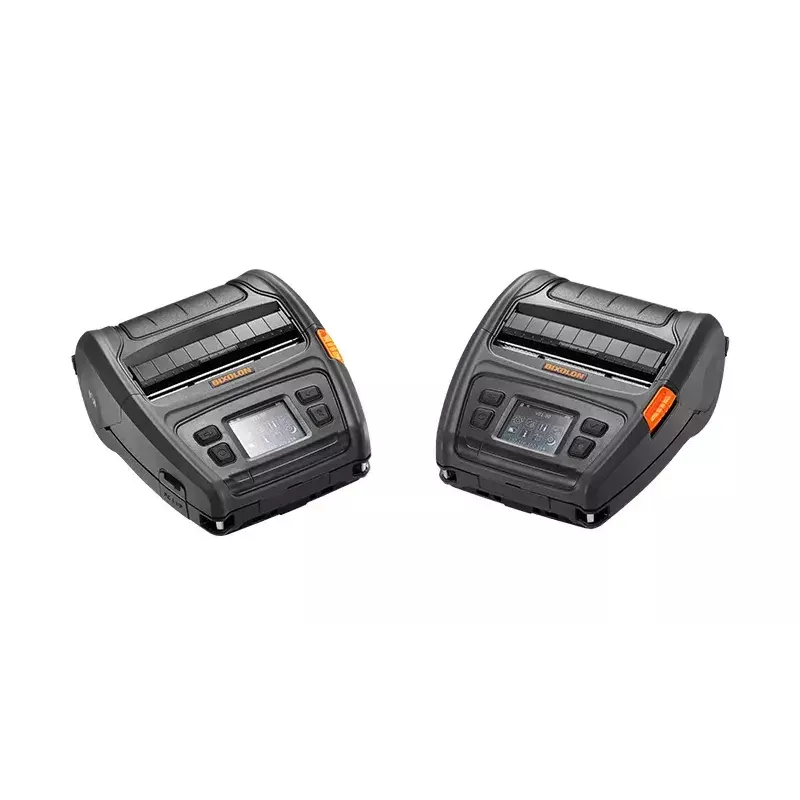

Mobile printer Bixolon XM7-40 Direct thermal 203 x 203 DPI Wired Wireless

The BIXOLON XM7-40 is a rugged mobile label printer with direct thermal printing at 203 x 203 DPI. Designed for industrial and field use, it supports liner and linerless labels, has a compact housing with drop protection to 2.1 m and an IP54 rating, and includes an embedded peeler and a TFT colour display. The printer accepts rolls up to 66 mm diameter and prints up to 127 mm/s (5 ips) with a maximum print width of 104 mm. It offers wired USB 2.0 and serial interfaces, optional Bluetooth 5.0 Classic (MFi) and dual-band WLAN (802.11a/b/g/n) with NFC-assisted pairing, and is compatible with Android, iOS and Windows devices.

Advantages

The XM7-40 combines rugged mechanical protection and portable battery operation with advanced connectivity and a choice of command languages (SLCS, BPL-Z™, BPL-C™ and BXL/POS) for straightforward integration. It includes a smart battery with USB Type-C Power Delivery and provides battery health details via BIXOLON’s XPM™ web management. Memory options (128 MB SRAM / 256 MB Flash standard; optional 256 MB SDRAM / 512 MB Flash) allow storage of fonts, graphics and firmware updates. The printer supports printing from SAP® Smart Forms and works with common label software such as BIXOLON Label Artist™ and BarTender®.

Suitable for

• On-site labeling and receipts in field service and delivery operations
• Warehouse and inventory labeling where portability and durability are required
• Retail mobile POS and ticketing applications
• Logistics and transportation printing tasks requiring linerless or peeled labels

Key specifications

• Print technology: Direct thermal, 203 x 203 DPI
• Maximum print width: 104 mm
• Print speed: up to 127 mm/s (5 ips)
• Roll capacity: maximum roll diameter 66 mm
• Connectivity: USB 2.0, Serial; optional Bluetooth 5.0 Classic (MFi), WLAN 802.11a/b/g/n, NFC
• Memory: 128 MB SRAM / 256 MB Flash (standard); optional 256 MB SDRAM / 512 MB Flash
• Durability: drop protection 2.1 m, IP54
• Battery: smart battery with USB Type-C PD charging and battery health reporting via XPM™
• Dimensions & weight: portable design, product weight approx. 1.09 kg
• Compatible systems: Android™, iOS™, Windows™; SAP® Smart Forms

How to use

Load a direct thermal label roll (max Ø 66 mm) into the media compartment and close the cover. Power on the device and pair it via USB, NFC or the chosen wireless interface (Bluetooth or WLAN). Select the appropriate command language and printer driver or configure the printer in your label software (Label Artist™, Label Artist Mobile™, BarTender® or SAP® Smart Forms). Use the TFT display and menu to adjust print density and media type. For linerless media, enable the relevant setting and use the embedded peeler if a peeled output is required.

Recommendations

Use compatible direct thermal labels within the specified width and roll diameter, keep the print head and sensors clean for consistent print quality, and charge the smart battery using a USB Type-C Power Delivery source. For reliable wireless operation, keep firmware updated via BIXOLON tools and register the printer in XPM™ for remote monitoring of device and battery status.
