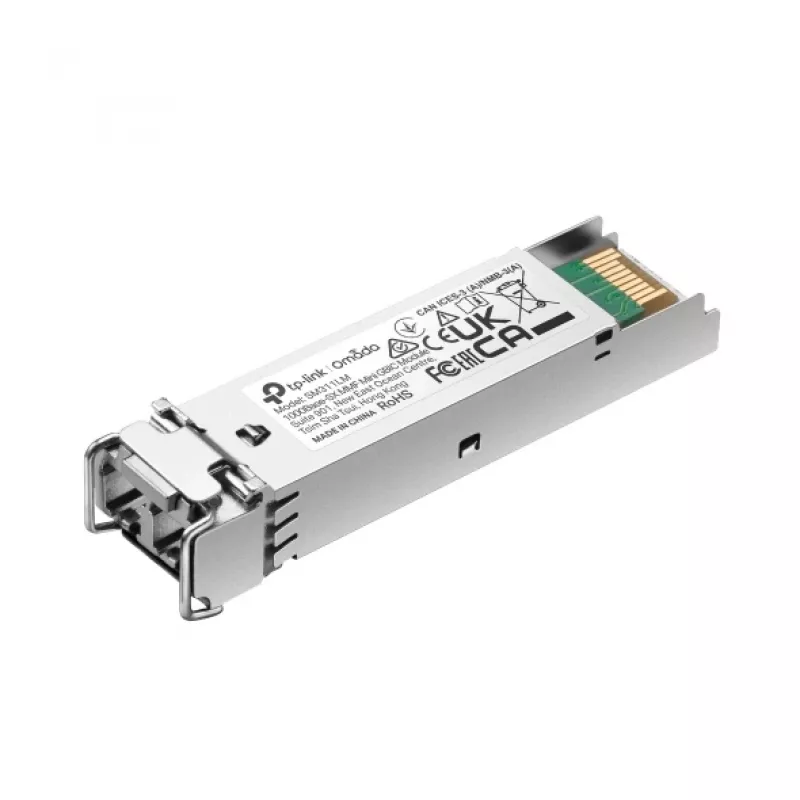

SFP fiber transceiver module TP-Link Omada 1000-Base-SX MMF mini-GBIC 1250 Mbit/s 3.3V (8-pack)

The TP-Link Omada SFP fiber transceiver module (pack of eight) is a multi-mode mini-GBIC (SFP) designed to extend fiber LAN links and upgrade switches. Each module supports a data rate up to 1250 Mbit/s over multi-mode fiber with an 850 nm wavelength, uses a compact mini-GBIC/SFP interface and operates from a 3.3 V input. The modules are hot-pluggable and have a commercial operating temperature range of 0–70°C.

Advantages

These mini-GBIC modules provide a flexible way to extend network distance and add fiber ports to managed or smart switches without replacing the entire switch. Compatibility with the SFP-MSA standard and support for Digital Diagnostic Monitoring (DDM) enable interoperability and basic link monitoring. The hot-pluggable design simplifies installation and maintenance, while a metallic housing and industry certifications ensure suitability for typical LAN and data center environments.

Suitable for

• Extending fiber links in campus and office LANs
• Adding SFP fiber ports to managed or smart switches
• Short-range multimode fiber connections in data closets and wiring rooms

Key specifications

• Interface: mini-GBIC / SFP
• Fiber type: Multi-mode fiber (MMF)
• Data rate: 1250 Mbit/s
• Wavelength: 850 nm
• Input voltage: 3.3 V
• Operating temperature: 0–70°C (commercial)
• Hot-pluggable design
• Material/colour: metallic housing

How to use

Insert each SFP module into a compatible SFP slot on a supported managed or smart switch while the switch is powered on or off; the hot-pluggable design allows installation without shutdown where supported. Connect multi-mode fiber patch cords to the module transceiver ports, ensure proper fiber polarity and secure connectors, then verify link status through the switch management interface or via the module's DDM readings if available.

Recommendations

Use these modules with compatible TP-Link Omada and other SFP-MSA compliant switches and multimode fiber patch cords rated for 850 nm. For reliable links, use appropriate MMF types and maximum segment lengths recommended for 850 nm 1250 Mbit/s connections, and protect transceiver connectors from dust when not in use.
