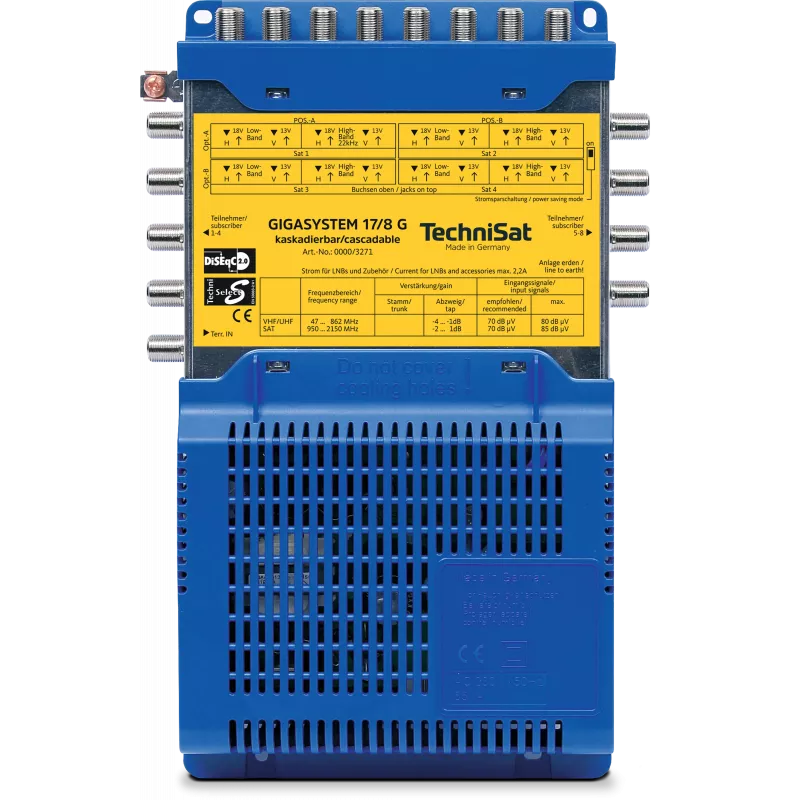

Satellite Terrestrial Receiver TechniSat GigaSystem 17/8 G

The TechniSat GigaSystem 17/8 G is a compact multiswitch designed to distribute satellite and terrestrial antenna signals to up to eight subscribers. The unit provides 17 inputs: 16 satellite IF inputs that accommodate signals from up to four Quattro LNBs (four satellite blocks per LNB) and one terrestrial antenna input. Incoming signals are processed individually and amplified with slope compensation to offset higher cable attenuation at higher frequencies.

Advantages

The multiswitch supports distribution from as many as four satellite positions via four Quattro LNBs and supplies terrestrial signals through a dedicated input. Its internal power supply can feed the basic unit, up to four cascaded multiswitches and all connected LNBs, enabling stable operation across the system. Discrete signal processing with slope amplification ensures balanced signal levels across the frequency range. The compact housing and standard AC power operation simplify installation and integration into existing installations.

Suitable for

• Small to medium shared satellite/terrestrial distribution systems for apartment buildings or multi-room homes
• Installations requiring signal distribution from up to four satellite positions (four Quattro LNBs)
• Setups needing a central powered multiswitch with cascade expansion for additional participants

Key specifications

• Inputs: 16 satellite IF inputs + 1 terrestrial input (total 17)
• Outputs: 8 subscriber outputs
• Supports up to four Quattro LNBs (four satellite positions)
• Internal mains adapter supplying the unit and up to four cascades including connected LNBs
• AC power: 230 V, 50–60 Hz
• Dimensions (W×D×H): 175 × 55 × 277 mm
• Brand: TECHNISAT, MPN: 0000/3271, EAN: 4019588032712

How to use

Install the GigaSystem 17/8 G in a dry, ventilated location and connect the four Quattro LNB outputs to the corresponding 16 satellite IF inputs. Connect the terrestrial antenna to the dedicated terrestrial input. Connect subscriber coax cables to the eight outputs. Plug the included mains adapter into a 230 V, 50–60 Hz outlet to power the unit; the internal supply will feed the unit itself and can provide power to cascaded multiswitches and connected LNBs if required. Verify signal levels on each output and adjust downstream equipment settings as needed.

Recommendations

For best results, use high-quality coaxial cables and follow recommended cascade and cable length guidelines to maintain signal quality. When expanding the system with cascades, ensure total power requirements do not exceed the capacity of the internal mains adapter and consider using additional powered distribution units if implementing very large networks.
