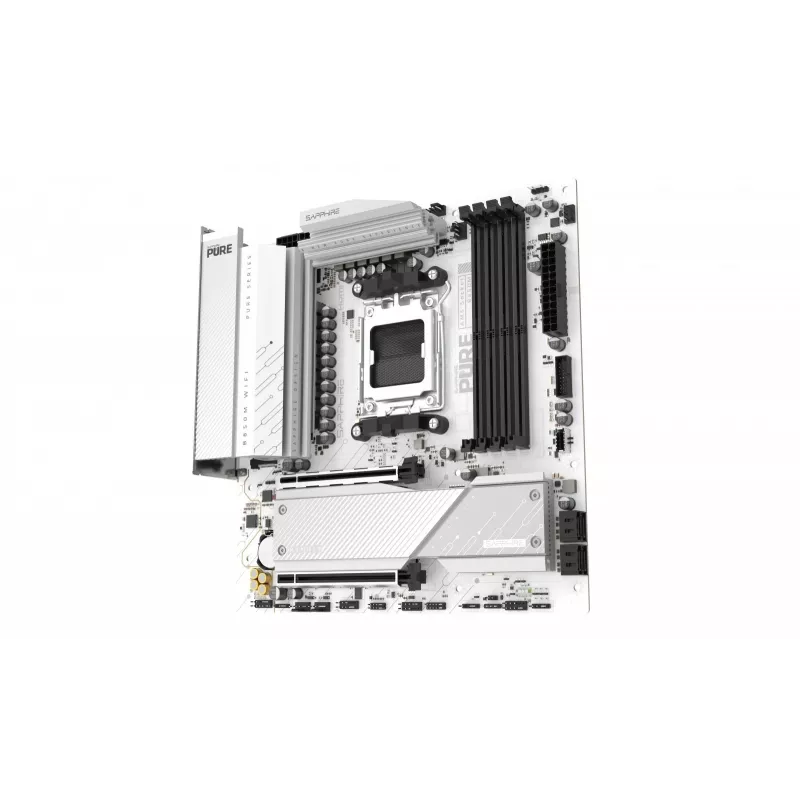

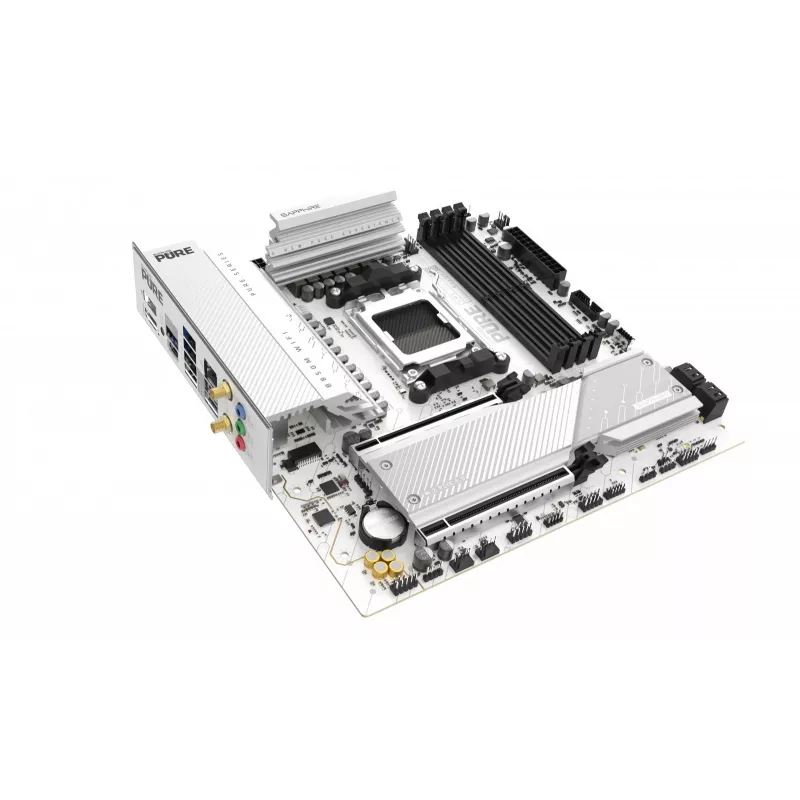

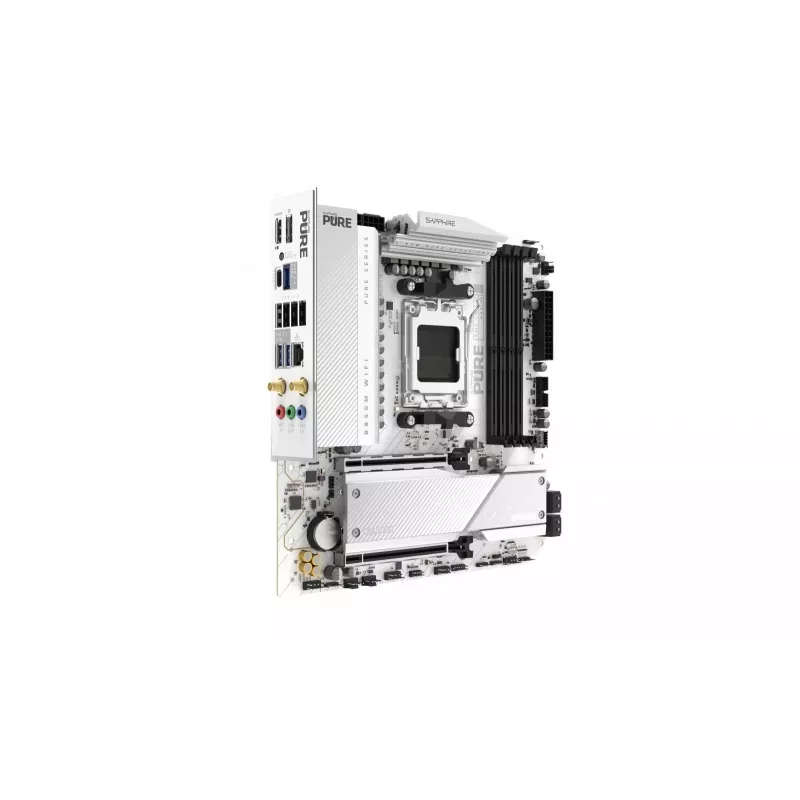

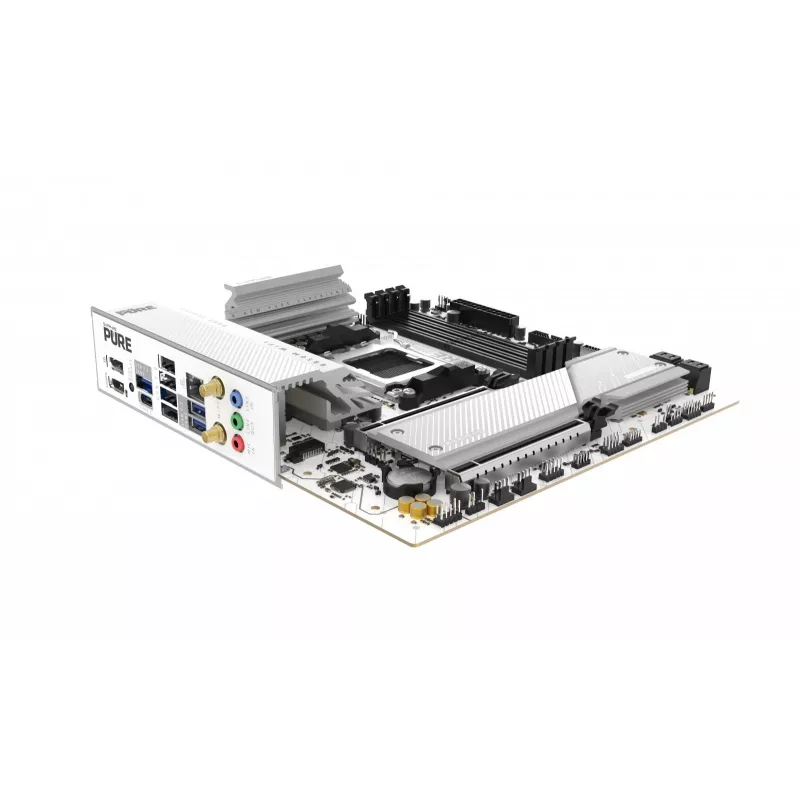

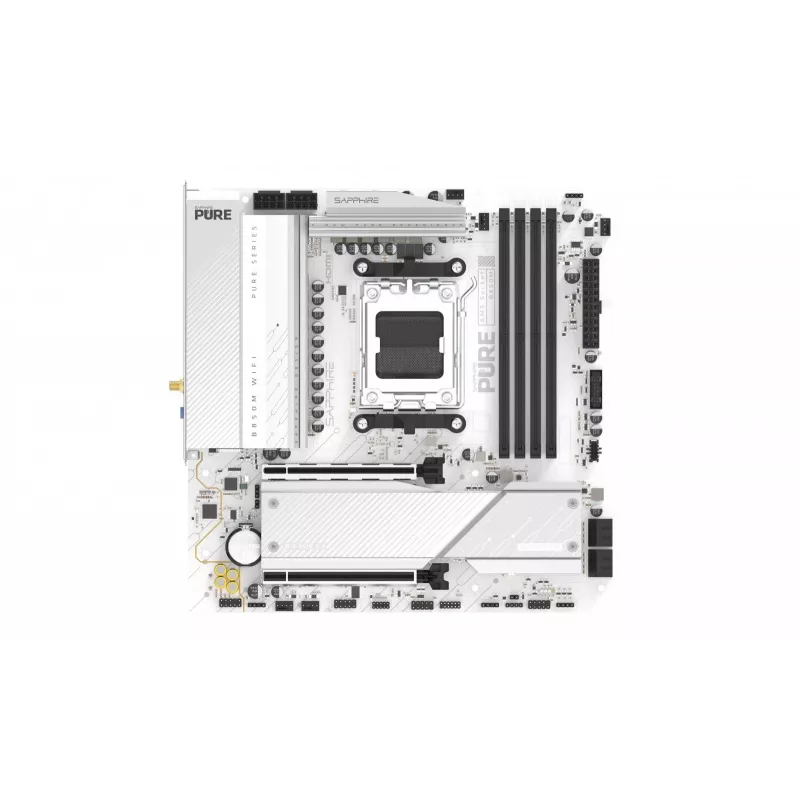

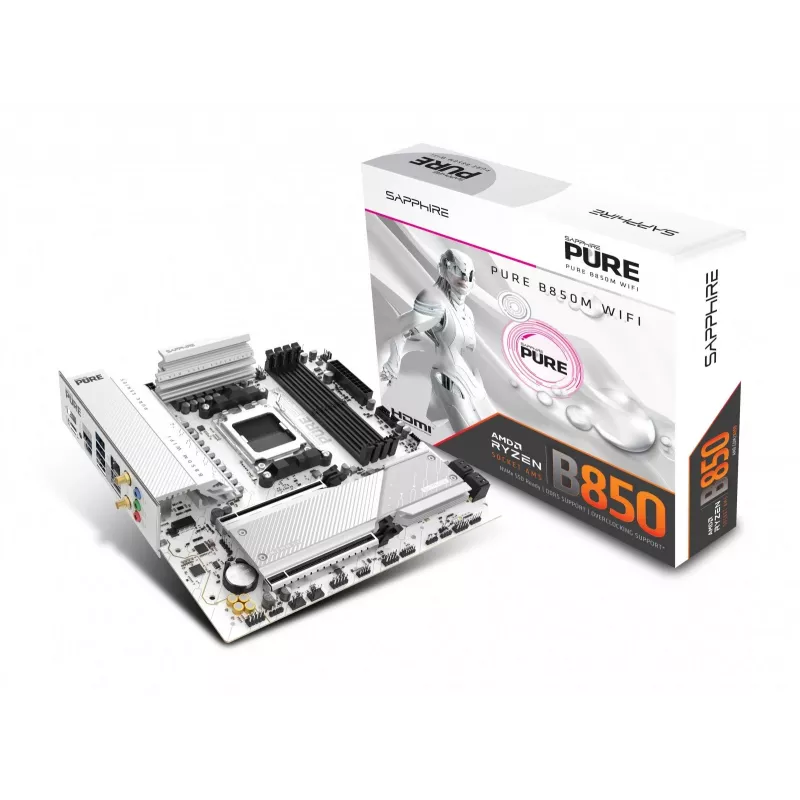

Motherboard Sapphire PURE B850M WIFI Micro ATX — AMD B850, Socket AM5, DDR5 up to 8000 MHz, 4 DIMM, Wi‑Fi 6, 2.5Gb LAN, 2× M.2, PCIe 5.0 x16

Sapphire PURE B850M WIFI is a Micro ATX motherboard for AMD Socket AM5 processors, designed for AMD Ryzen 7000 series CPUs. It is built on the AMD B850 chipset and supports DDR5 memory up to 8000 MHz across four DIMM slots in dual-channel configuration, with a maximum capacity of 256 GB. The board includes integrated Wi‑Fi 6 and Bluetooth 5.3, Realtek 2.5 Gb Ethernet, 5.1-channel audio via Realtek ALC897, two M.2 slots (PCIe 5.0 and PCIe 4.0), SATA III connections for multiple drives, USB Type-C and several USB Type-A ports, and a PCIe 5.0 x16 slot for a discrete graphics card.

Advantages

The Micro ATX form factor offers a compact layout while retaining modern connectivity such as PCIe 5.0 x16, dual high-speed M.2 slots, and DDR5 support up to 8000 MHz. Integrated Wi‑Fi 6 and Bluetooth 5.3 provide wireless networking out of the box, and the Realtek 2.5 Gb LAN controller delivers faster wired connections. Multiple USB ports including USB 3.2 Gen 2 Type-A and Type-C, plus support for up to six storage drives, make the board versatile for both gaming and productivity builds.

Suitable for

• Compact gaming PCs with a modern Ryzen 7000 series CPU
• Home or office desktops requiring fast wired and wireless networking
• Systems that need high-speed NVMe storage and multiple SATA drives
• Upgradable builds that plan to use PCIe 5.0 graphics cards

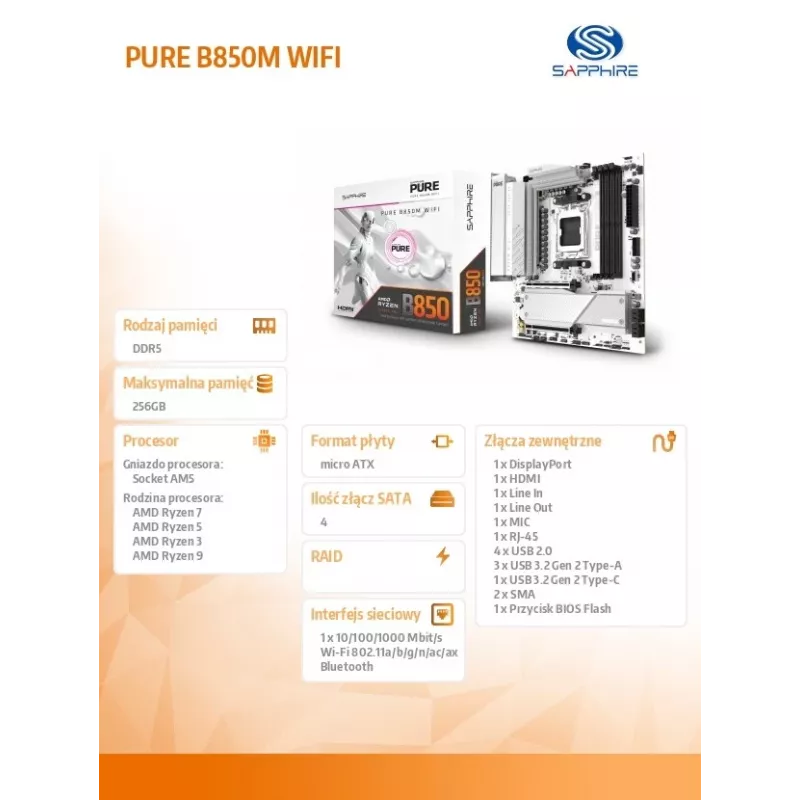

Key specifications

• Form factor: Micro ATX (244 × 244 mm)
• Chipset: AMD B850
• CPU socket: Socket AM5 (for AMD Ryzen 7000 series)
• Memory: 4 × DIMM, DDR5, dual-channel, up to 8000 MHz, maximum 256 GB
• Storage interfaces: 2 × M.2 (PCIe 5.0 and PCIe 4.0), SATA III ports supporting up to six drives
• Expansion slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4
• LAN: 2.5 Gigabit Ethernet controller (Realtek)
• Wireless: Wi‑Fi 6 (802.11ax) and Bluetooth 5.3
• Audio: 5.1-channel codec (Realtek ALC897)
• Rear I/O: 1 × RJ-45, 1 × DisplayPort, 1 × HDMI, 1 × USB-C (USB 3.2 Gen 2), 3 × USB 3.2 Gen 2 Type-A, 4 × USB 2.0, 3 × audio jacks

How to use

Install the Sapphire PURE B850M WIFI into a compatible Micro ATX case, mount an AMD Socket AM5 processor and a suitable CPU cooler, and populate the memory slots with DDR5 DIMMs following the recommended dual-channel configuration. Connect M.2 or SATA storage devices as required and install a graphics card into the PCIe 5.0 x16 slot if needed. Attach power connectors from a compatible PSU and connect front-panel and peripheral cables to the appropriate headers and rear I/O ports. Finish by installing the operating system and chipset/network/audio drivers provided by the manufacturer.

Recommendations

For stable performance, use high-quality DDR5 modules matched in pairs for dual-channel operation, update the BIOS to the latest version before first boot, and install the official drivers for chipset, LAN, Wi‑Fi and audio to ensure full functionality.
