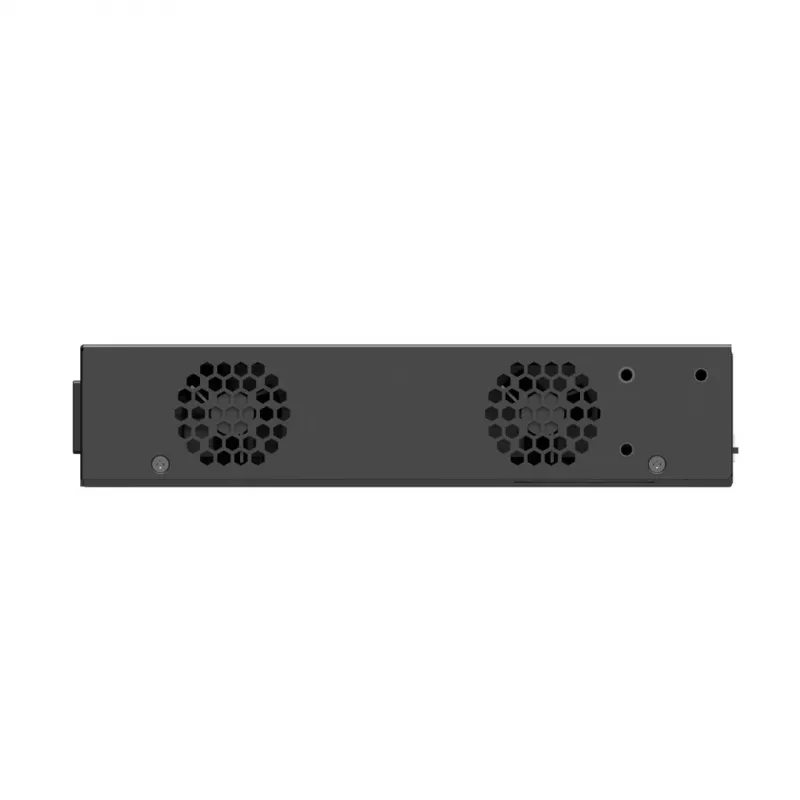

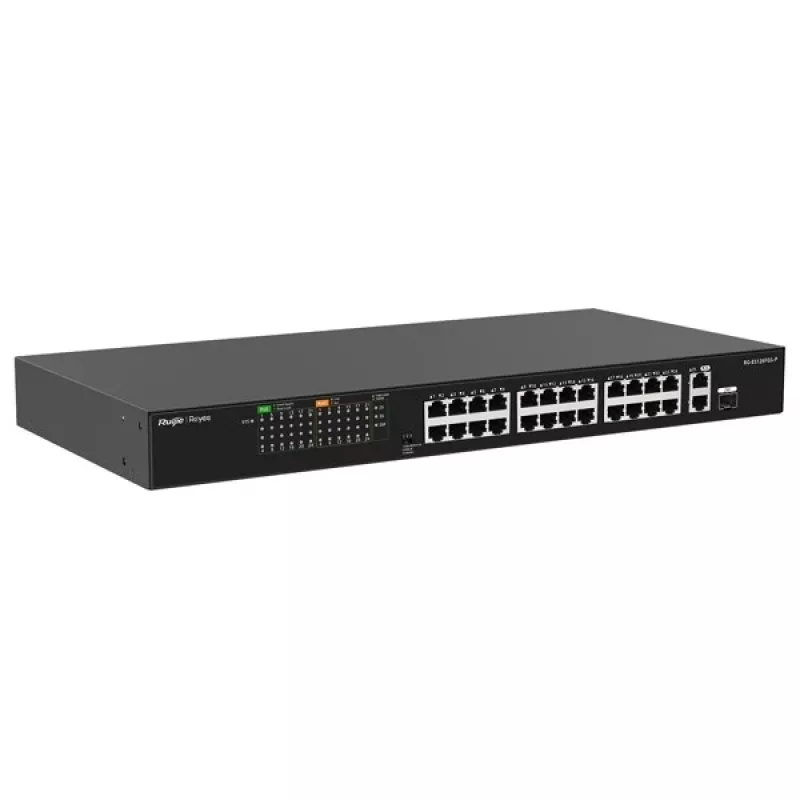

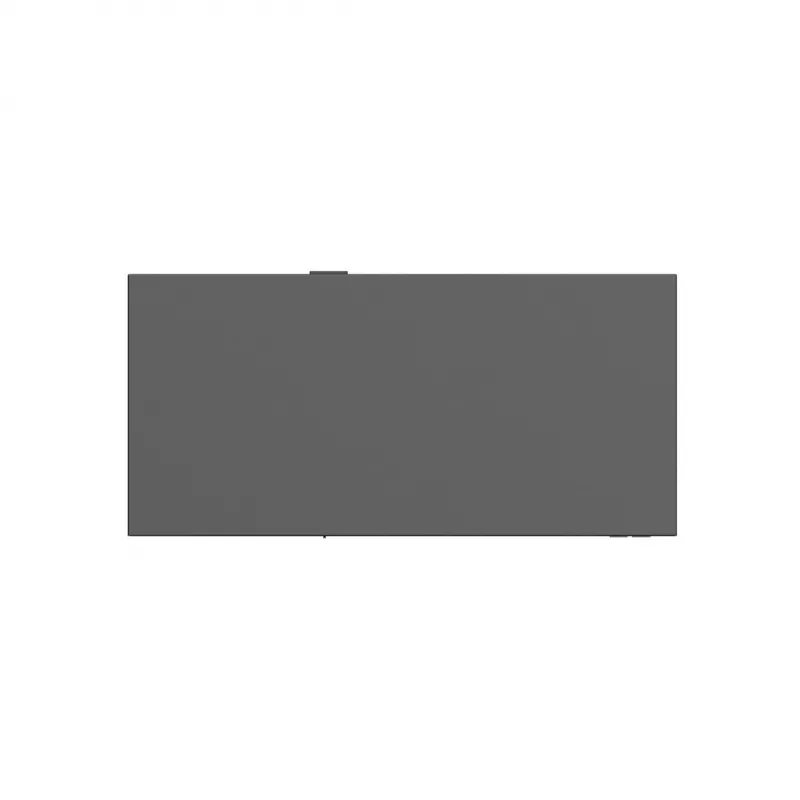

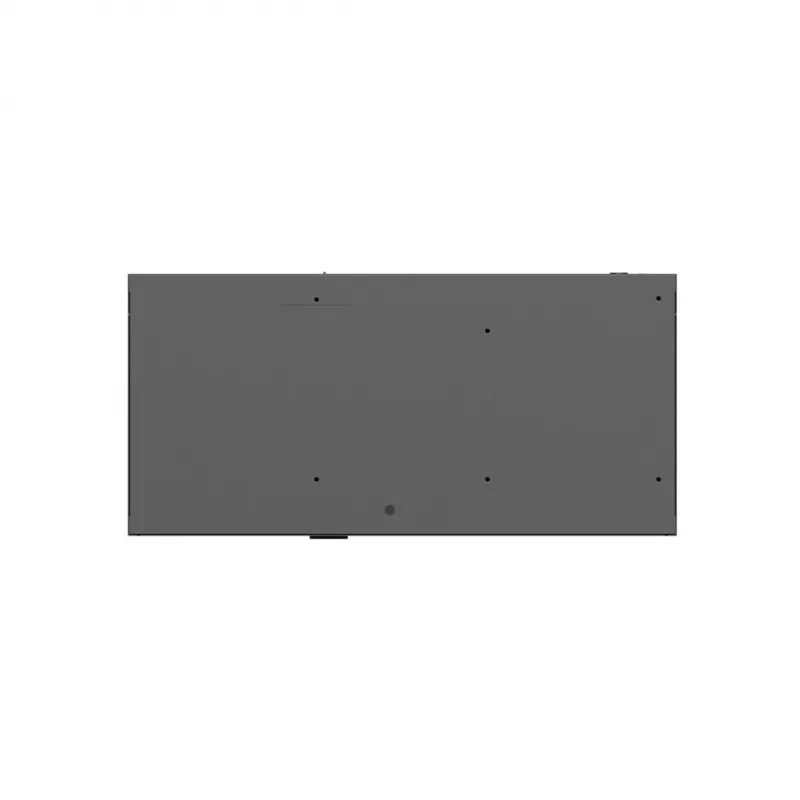

RUIJIE RG-ES126FGS-P 24-Port Gigabit PoE+ Smart Managed Switch with 2 SFP Uplinks, 370W Budget, Rackmount, Reyee Series

The RUIJIE RG-ES126FGS-P is a high-performance 24-port Gigabit PoE+ smart managed switch from the Reyee series, designed to power and connect IP cameras, wireless access points, and VoIP phones in small to medium business networks. With a total PoE budget of 370W and support for IEEE 802.3af/at, it delivers up to 30W per port, making it ideal for power-hungry devices. The switch features 2 SFP uplink ports for fiber connectivity, a switching capacity of 52 Gbps, and advanced management via Ruijie Cloud App or Web UI.

Advantages

This switch offers a cost-effective, reliable solution for network expansion with PoE+ capabilities. Its smart fan ensures quiet operation while maintaining optimal thermal performance. The 370W total PoE budget allows flexible device placement without additional power outlets. VLAN and QoS support enhance network efficiency and security. Lightning protection up to ±6KV safeguards against surges.

Suitable for

• Small and medium businesses deploying IP surveillance systems
• Wireless network installations with multiple access points
• VoIP phone systems requiring centralized power
• Edge switching in enterprise networks

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at, up to 30W per port, 370W total)
• 2 x 1000Base-X SFP uplink ports
• Switching capacity: 52 Gbps
• Packet forwarding rate: 38.68 Mpps
• MAC address table: 8K
• Jumbo frame support: 9KB
• Management: Ruijie Cloud App/Platform, Web UI
• VLAN support: IEEE 802.1Q, port-based VLAN
• QoS: Yes
• Flow control: IEEE 802.3x
• Lightning protection: Common mode ±6KV, Differential mode ±2KV
• Fan: Smart fan
• Power supply: Internal AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 40°C
• Mounting: Rack-mountable (1U)

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. The switch is best paired with Ruijie Reyee access points and routers for seamless cloud management. Ensure adequate ventilation in the rack to maintain operating temperature.
