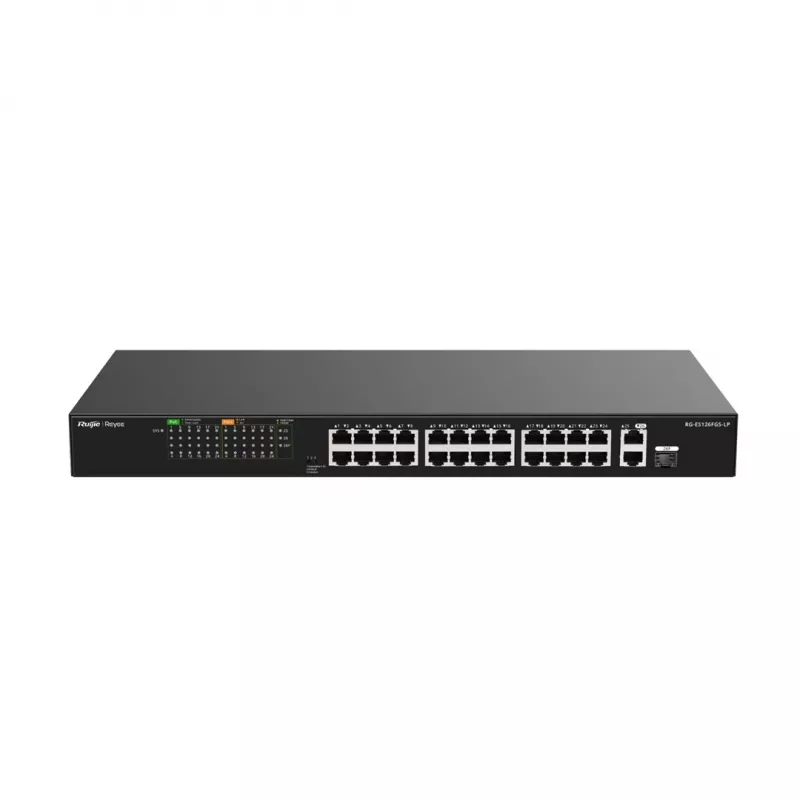

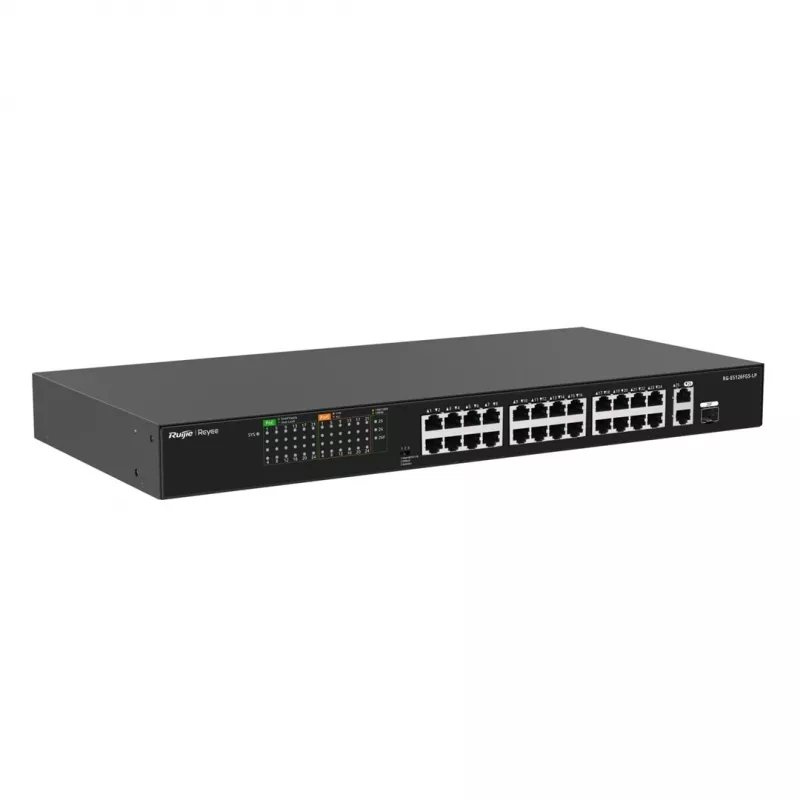

Ruijie RG-ES126FGS-LP 24-Port Fast Ethernet PoE+ Switch with 2 Gigabit SFP Uplinks, 370W PoE Budget, Rackmount

Deliver up to 370W of PoE+ power across 24 Fast Ethernet ports while maintaining a compact 1U footprint. The Ruijie RG-ES126FGS-LP pairs a non-blocking 8.8 Gbps switching capacity with two Gigabit SFP uplinks, making it a reliable core for IP cameras, VoIP phones, and wireless access points in small to medium networks.

Overview

The RG-ES126FGS-LP is an unmanaged Layer 2 switch engineered for straightforward deployment without configuration. It features 24 10/100Base-T ports, each capable of delivering up to 30W of PoE+ power (IEEE 802.3af/at), and two 1000Base-X SFP slots for fiber uplinks. With a total PoE budget of 370W, it can power a full complement of PoE devices simultaneously. The switch is rackmountable (1U) and includes a built-in fan for reliable cooling.

What stands out

• 24 PoE+ ports with 370W total power budget — ideal for high-density PoE deployments.
• Two Gigabit SFP uplinks provide flexible fiber connectivity to the core network.
• 8.8 Gbps switching capacity and 6.55 Mpps forwarding rate ensure smooth traffic flow.
• Plug-and-play unmanaged design — no configuration needed, saving time and effort.
• Rackmount form factor with included mounting ears for easy installation in standard 19" racks.
• Internal AC power supply with wide voltage range (100-240V) for global compatibility.

Technical details

• Switch type: Unmanaged, Layer 2
• Ports: 24 x 10/100Base-T PoE+ (IEEE 802.3af/at), 2 x 1000Base-X SFP
• Switching capacity: 8.8 Gbps
• Packet forwarding rate: 6.55 Mpps
• MAC address table: 8K entries
• PoE power budget: 370W
• Form factor: Rackmount (1U)
• Power supply: Internal AC 100-240V, 50/60Hz
• Fan: Yes (built-in)
• Operating temperature: 0°C to 40°C
• Product colour: Black

Our verdict

The RG-ES126FGS-LP strikes an excellent balance between PoE capacity, port density, and simplicity. Its 370W budget is generous enough for most edge deployments, and the SFP uplinks future-proof your network for fiber backhaul. For businesses needing a dependable, no-fuss PoE switch, this Ruijie model is a compelling choice.
