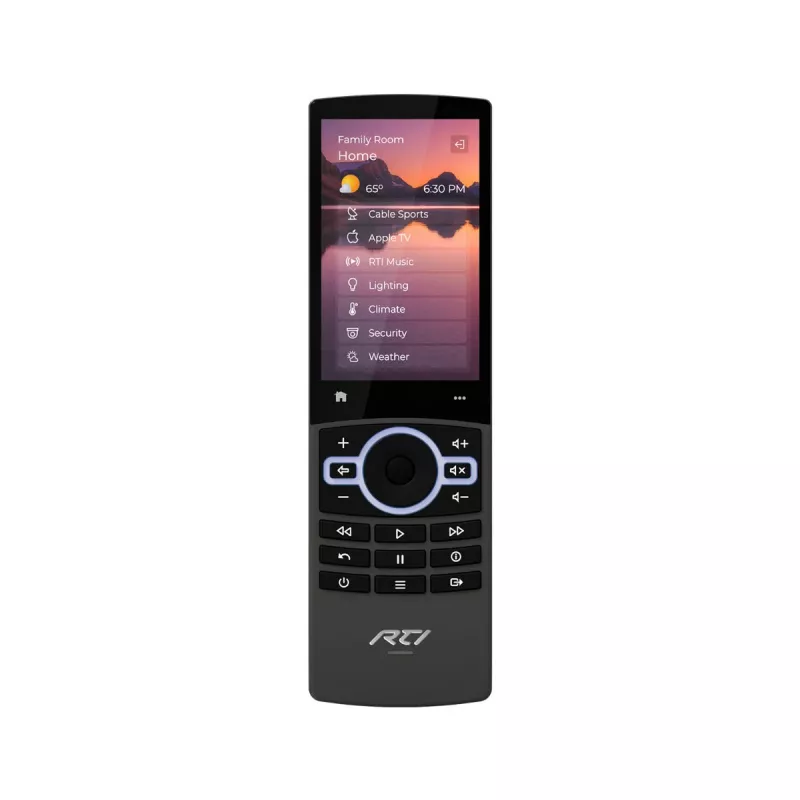

RTI ISR-4 4 inch Intelligent Surface WiFi Touch Remote Control

The RTI ISR-4 is a sophisticated 4-inch intelligent surface WiFi touch remote control designed for seamless integration with RTI XP control processors. Featuring a vibrant WVGA LCD capacitive touchscreen, this in-wall remote offers intuitive control over your entire smart home or commercial AV system. With dual connectivity options including Wi-Fi (802.11b/g/n) and Ethernet (10/100 Base-T), the ISR-4 ensures reliable communication. Power via PoE (IEEE 802.3af Class 3) or 12V DC simplifies installation. Built-in ambient light and proximity sensors enhance user experience, while the integrated microphone and speaker enable intercom functionality. The sleek black finish complements any decor.

Advantages

High-resolution 4-inch touchscreen with responsive capacitive touch. Flexible power options reduce wiring complexity. Integrated sensors for automatic screen brightness and wake-on-approach. Compatible with RTI's powerful control ecosystem.

Suitable for

• Residential smart home automation
• Commercial AV control systems
• Conference rooms and boardrooms
• Hospitality and luxury environments

Key specifications

• Display: 4" WVGA LCD, 480x800 pixels, capacitive touch
• Processor: ARM Cortex-A9
• Memory: 1 GB RAM, 8 GB flash
• Connectivity: Wi-Fi 802.11b/g/n, Ethernet 10/100 Base-T
• Power: PoE IEEE 802.3af Class 3 or 12V DC
• Mounting: In-wall (US single-gang or European 60mm box)
• Sensors: Ambient light, proximity
• Audio: Integrated microphone and speaker
• Operating temperature: 0°C to 40°C
• Humidity: 5% to 95% non-condensing
• Color: Black

Recommendations

For optimal performance, pair the ISR-4 with an RTI XP control processor. Ensure proper in-wall mounting and network connectivity. Use PoE for simplified installation.
