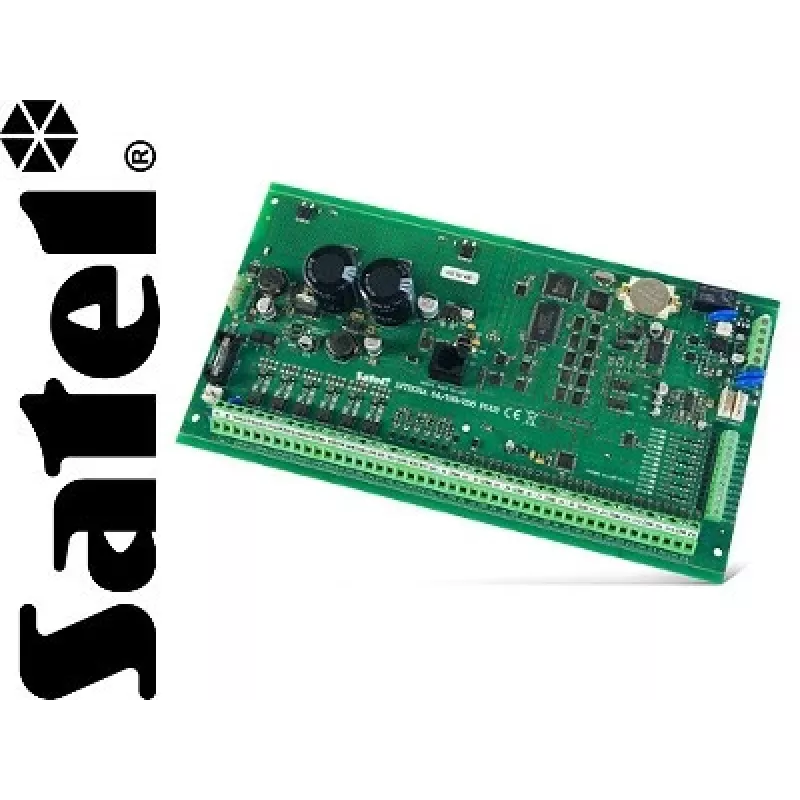

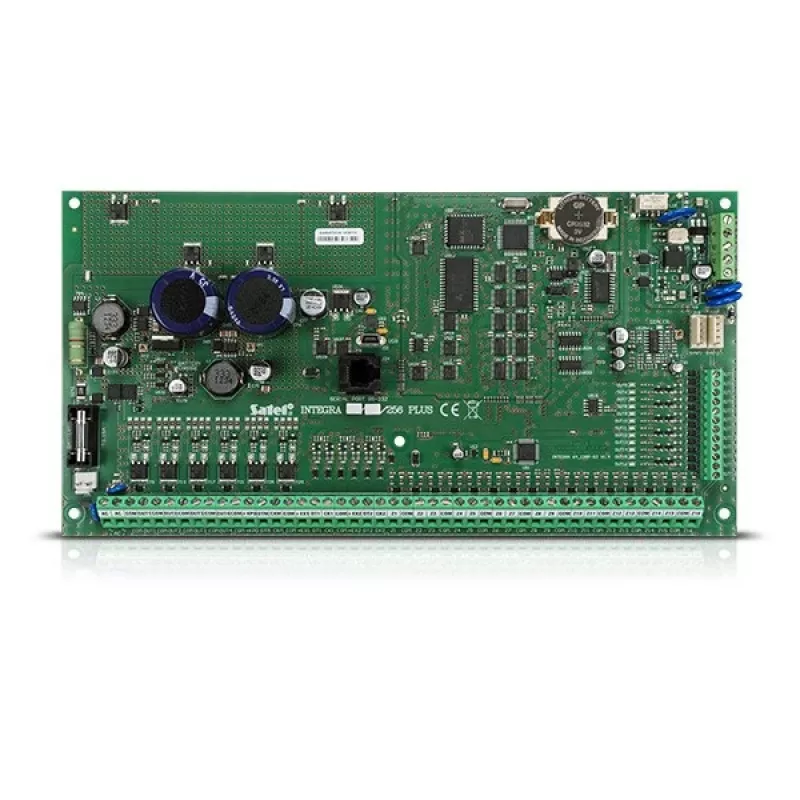

Alarm control panel SATEL INTEGRA 256 Plus — 32 zones, 8 partitions

SATEL INTEGRA 256 Plus is a wired alarm control panel designed for medium to large residential and commercial installations. Supporting up to 32 zones and 8 independently managed partitions, the panel coordinates wired sensors, detectors and alarm outputs, integrates with external keypads and communication modules, and provides a platform for centralized configuration and scalable expansion. The device is wired/wireless-ready, allowing future addition of compatible wireless modules without replacing the main unit.

Advantages

The INTEGRA 256 Plus combines multi-partition control and extended zone capacity in a single chassis, enabling separate arming and event reporting for distinct areas. Its modular, wired/wireless-ready architecture allows phased upgrades and integration with SATEL keypads and communicators. The panel supports centralized configuration and system monitoring, which simplifies maintenance and management of complex installations.

Suitable for

• Medium to large family homes requiring separate arming zones
• Small offices and commercial premises with multiple controlled areas
• Multi-tenant buildings or facilities needing independent partition management
• Installations expecting future wireless expansion

Key specifications

• Zone capacity: 32 wired zones
• Partition capability: 8 independently managed partitions
• Wired/wireless-ready architecture for modular expansion
• Integration support for external keypads and communication modules
• Centralized configuration and monitoring features

How to use

Install the INTEGRA 256 Plus according to local electrical and safety regulations, mounting it in a secure location with access for authorized personnel. Connect zone wiring from detectors and sensors to the zone inputs, assign zones to partitions as required, and integrate keypads and communicators through the provided interfaces. Use the manufacturer’s configuration software or compatible SATEL keypads to program user codes, alarm responses and output actions. After configuration, test each zone and partition to verify proper signalling and response before commissioning the system.

Recommendations

For reliable operation, plan wiring routes to minimize electrical interference, follow SATEL installation guidelines for grounding and power supply, and keep firmware and configuration tools up to date. Use compatible SATEL expansion modules when adding wireless capabilities or additional supervised outputs to maintain full system functionality.
