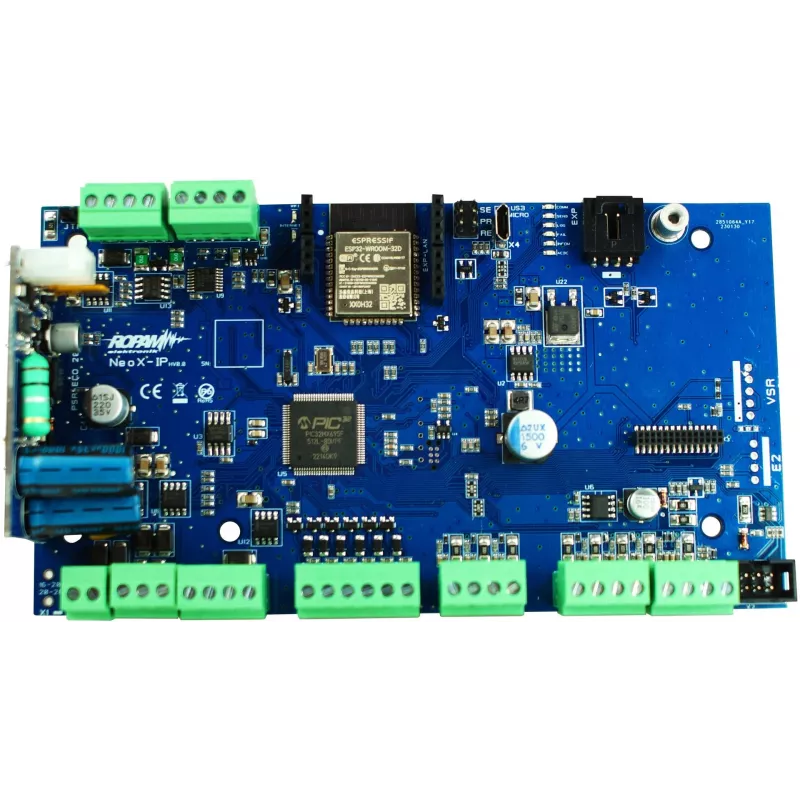

ROSE&TULIPANI ROPAM NEO-IP-PS Control Panel

The ROSE&TULIPANI ROPAM NEO-IP-PS is a hybrid alarm control panel designed for modern security and smart home integration. It combines wired and wireless zone support, built-in Ethernet communication, and optional modules for Wi-Fi, GSM/GPRS/LTE, or PSTN connectivity. This panel is ideal for residential and commercial installations requiring flexible expansion and remote management via the RopamBridge mobile app or web browser.

Advantages

Hybrid system supporting up to 64 wired and 64 wireless zones; 4 independent partitions; large event log capacity of ~20,000 events; smart home features including lighting, gate, and heating control; firmware updates via USB or remote.

Suitable for

• Security system integrators and installers
• Homeowners seeking comprehensive alarm and smart home control
• Small to medium businesses requiring scalable security solutions

Key specifications

• System Type: Hybrid Alarm Control Panel
• Wired Zones: 8 (expandable to 64)
• Wireless Zones: Up to 64 (with optional modules)
• Programmable Outputs: 4 (expandable to 64)
• Communication Interface: Ethernet (LAN) built-in; optional Wi-Fi, GSM/GPRS/LTE, PSTN
• User Capacity: Up to 64 users
• Partitions: 4 independent partitions
• Event Log Capacity: ~20,000 events
• Control Methods: Keypads, Mobile App (RopamBridge), Web Browser
• Power Supply Input: 17V AC (external transformer required)
• Backup Battery Support: Yes (12V lead-acid battery, e.g., 7Ah)
• Operating Temperature: -10°C to +55°C
• Housing Material: Plastic
• Integration Protocols: MODBUS RTU, ONVIF (IP cameras)
• Smart Home Features: Yes (e.g., lighting, gates, heating control)
• Firmware Update: Local (USB) / Remote
• Notification Types: SMS, PUSH, Email, Voice (with GSM module)

Recommendations

For optimal performance, use a 12V 7Ah backup battery and an external 17V AC transformer. Pair with RopamBridge app for remote control and notifications.
