ROPAM NEO-IP-SET Hybrid Alarm System Kit with Touchscreen Keypad

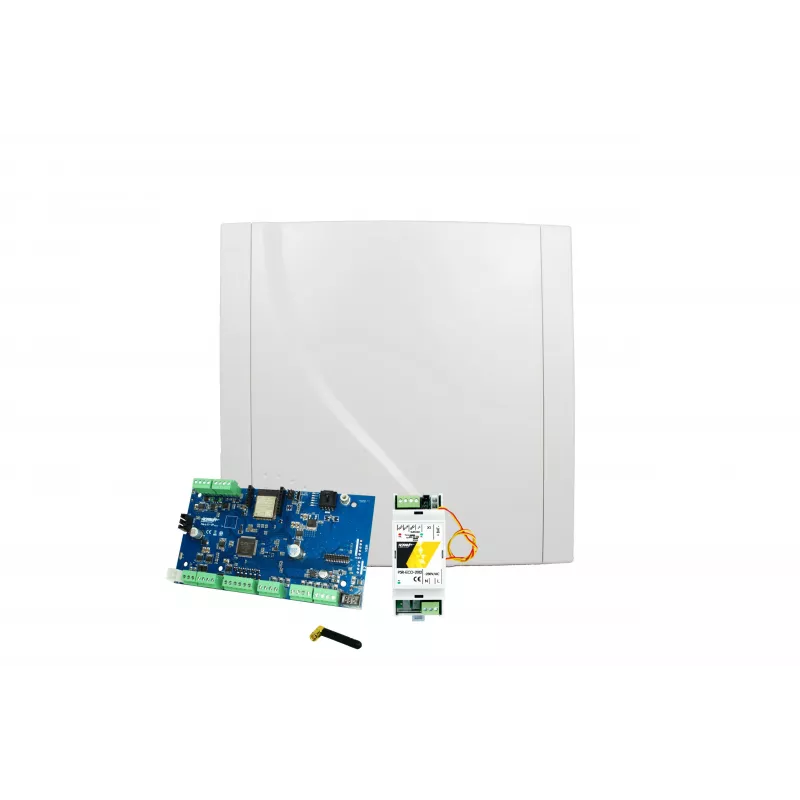

The ROPAM NEO-IP-SET is a comprehensive hybrid alarm system kit designed for residential and commercial security applications. This set includes the ROPAM NEO-GSM-IP-64 control panel and a TPR-2B-BS black touchscreen keypad, offering both wired and wireless connectivity for flexible installation. With support for up to 64 zones, 64 users, and 4 independent partitions, it provides scalable security management. The system integrates GSM/GPRS and Ethernet communication, enabling remote control via mobile apps (RopamDroid, RopamBridge), SMS, CLIP, DTMF, or PC software. It also features an event log capacity of approximately 20,000 events and supports firmware updates remotely via RopamBridge.

Advantages

Hybrid design allows mixing wired and wireless sensors for optimal coverage. The included touchscreen keypad offers intuitive arming/disarming and system status. Remote management via smartphone app provides convenience and real-time alerts. Expandable up to 64 zones and outputs ensures adaptability for growing security needs. Integration with Modbus RTU, MQTT, and KNX (via optional module) enables smart home compatibility.

Suitable for

• Home security systems requiring both wired and wireless sensors
• Small to medium-sized businesses needing scalable alarm solutions
• Users who want remote monitoring and control via mobile app
• Installations where GSM backup is essential for reliability

Key specifications

• System Type: Hybrid (Wired/Wireless) Alarm System
• Control Panel Model: ROPAM NEO-GSM-IP-64
• Communication Modules: GSM/GPRS, Ethernet (IP)
• Expandable Zones: Up to 64 (wired/wireless)
• On-board Wired Zones: 8
• Expandable Outputs: Up to 64
• On-board Wired Outputs: 8 (OC type)
• User Capacity: Up to 64 users
• Partitions: 4 independent partitions
• Keypad Support: Up to 8 touch keypads
• Included Keypad: TPR-2B-BS (Black Touchscreen Keypad)
• Mobile Application: RopamDroid, RopamBridge (iOS/Android)
• Power Supply: 16V AC (via included transformer), 12V DC (panel input)
• Battery Backup Support: Yes, 12V lead-acid battery (up to 17Ah, battery not included)
• Event Log Capacity: Approx. 20,000 events
• Enclosure Type: Plastic (O-R3P)
• Integration Protocols: Modbus RTU, MQTT, KNX (via optional module)
• Remote Control Methods: SMS, CLIP, DTMF, Mobile App, PC Software
• Firmware Update: Remote via RopamBridge
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use a 12V lead-acid battery (up to 17Ah) for backup power (not included). Ensure proper placement of the control panel in a dry, ventilated area within the specified temperature range. Consult the user manual for detailed installation and programming instructions.
