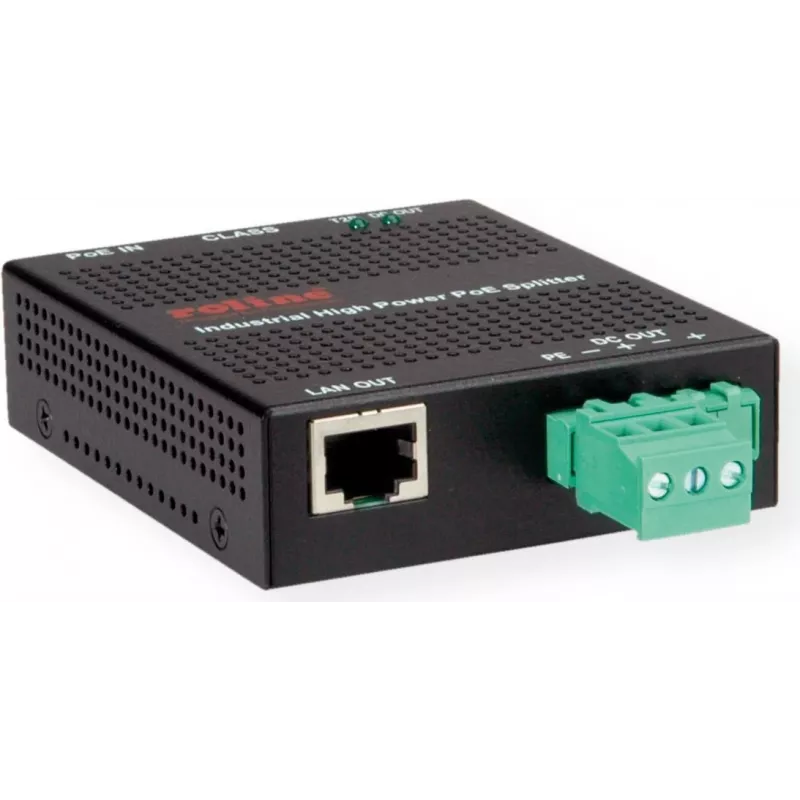

ROLINE High Power PoE Splitter 30W - Switch

The ROLINE High Power PoE Splitter 30W is a reliable and efficient solution for powering non-PoE devices over a single Ethernet cable. It splits the power and data from a PoE+ source, delivering up to 30W of power at 12V DC while maintaining Gigabit Ethernet data speeds. Ideal for IP cameras, wireless access points, and other network devices that require both power and data connectivity.

Advantages

Simplifies installation by eliminating the need for separate power cables. Supports high power output up to 30W, compatible with IEEE 802.3at PoE+ switches. Plug-and-play design ensures easy setup without configuration. Compact plastic housing fits neatly in any environment.

Suitable for

• IP cameras requiring 12V DC power
• Wireless access points and routers
• Network devices without PoE support
• Remote installations where power outlets are unavailable

Key specifications

• PoE Standard: IEEE 802.3at (PoE+)
• Max PoE Input Power: 30W
• DC Output Voltage: 12V DC
• DC Output Current: 2.5A
• Max DC Output Power: 30W
• Ethernet Data Rate: Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input Port: 1x RJ45 (Data + Power)
• Data Output Port: 1x RJ45 (Data Only)
• Power Output Port: 1x DC Jack
• LED Indicators: Power, PoE Status
• Operating Temperature: 0°C to 40°C
• Housing Material: Plastic
• Installation: Plug & Play

Recommendations

For optimal performance, use with a PoE+ switch or injector that provides at least 30W per port. Ensure the connected device's power requirements do not exceed 30W total.
