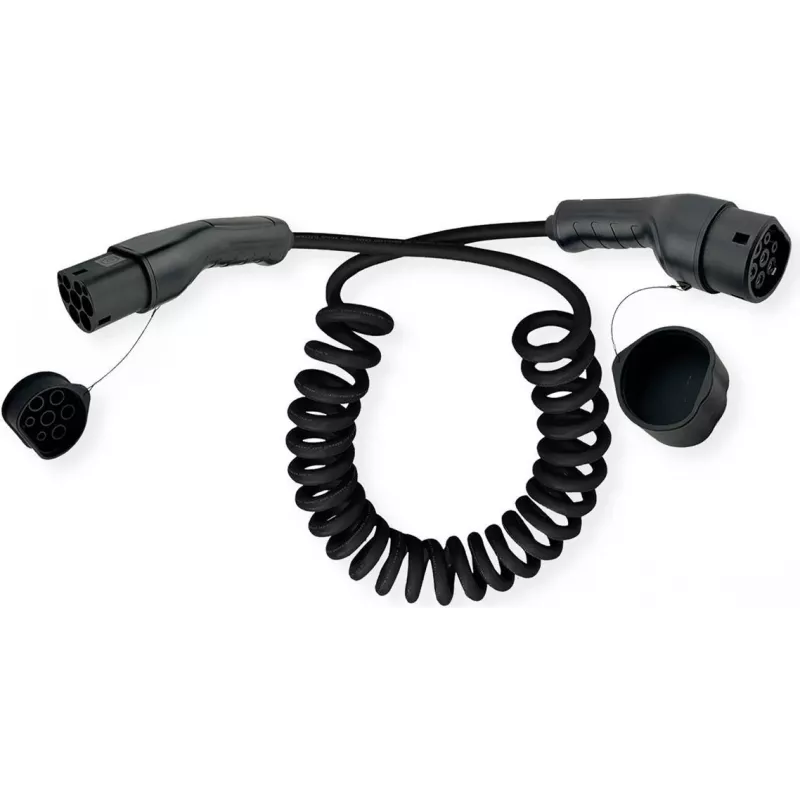

ROLINE EV Charging Cable Spiral Type 2 3-Phase 32A 22kW 3m

This coiled EV charging cable delivers up to 22 kW of three-phase AC power, making it an ideal solution for fast and reliable charging of electric vehicles equipped with a Type 2 inlet. Its spiral design keeps the cable neatly retracted when not in use, reducing clutter and wear while providing a practical 3-meter reach when extended.

Advantages

The cable is engineered for durability and safety, featuring a robust TPE jacket that resists abrasion, oil, and weather. With an IP54 protection rating, it withstands dust and water splashes, ensuring dependable performance in various environments. The copper alloy conductors ensure efficient power transfer with minimal losses, while the coiled form factor prevents tangling and tripping hazards. Compliance with IEC 62196-2 and EN 50620 guarantees compatibility and safety.

Suitable for

• Electric vehicles with Type 2 charging ports (IEC 62196-2)
• Charging stations and wallboxes with Type 2 sockets, Mode 3
• Home, workplace, and public charging applications
• Users seeking a neat, space-saving cable solution

Key specifications

• Connectors: Type 2 to Type 2 (IEC 62196-2)
• Charging mode: Mode 3 (AC)
• Number of phases: 3
• Maximum current: 32 A per phase
• Maximum power: 22 kW
• Operating voltage: 400 V AC
• Cable length: 3 m (coiled)
• Cable colour: Black
• Jacket material: TPE
• Conductor material: Copper alloy
• Protection rating: IP54
• Operating temperature: -30°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair this cable with a compatible Mode 3 charging station rated at 22 kW or higher. Regularly inspect the connectors and cable for damage, and store in a dry place when not in use. Ensure the vehicle and charging station are switched off before connecting or disconnecting.
