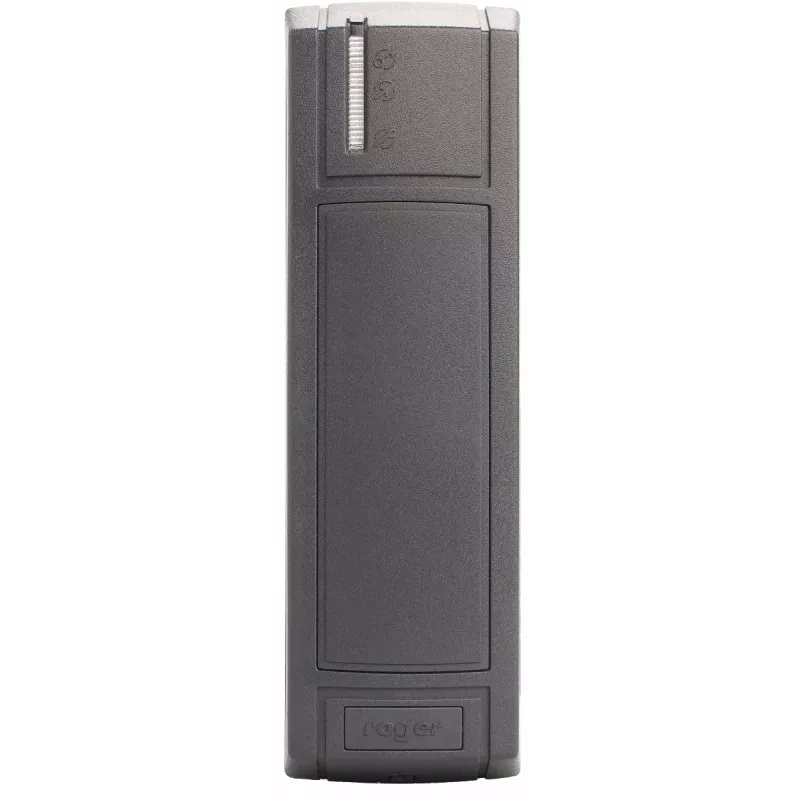

ROGER PRT12LT-BK Proximity Reader, RFID 125 kHz, RS485/Wiegand/DALLAS, IP67, Black

The ROGER PRT12LT-BK is a robust proximity card reader designed for access control systems. It supports RFID technology at 125 kHz and is compatible with EM 4102 (UNIQUE) transponders. The reader features RS485 (ROGER standard), Wiegand (26-66 bit), and DALLAS (DS1990A emulation) communication interfaces, ensuring versatile integration. With an IP67 rating, it is dust-tight and protected against temporary immersion in water, making it suitable for outdoor and harsh environments. The black polycarbonate housing is durable and surface-mountable. Visual indicators include two LEDs (red/green) and an audio buzzer for user feedback. Power supply voltage ranges from 10-15 VDC, with standby current consumption of 30 mA and maximum of 50 mA. The maximum reading range is up to 10 cm. Operating temperature range is -25°C to +60°C. The integrated cable length is 0.5 m.

Advantages

High durability with IP67 protection, flexible communication options (RS485, Wiegand, DALLAS), and reliable 125 kHz RFID reading. Suitable for both indoor and outdoor access control applications.

Suitable for

• Access control systems in commercial buildings
• Industrial environments requiring ruggedized readers
• Outdoor gate and door entry systems
• Integration with ROGER access control panels

Key specifications

• Reading Technology: RFID
• Operating Frequency: 125 kHz
• Supported Transponder Type: EM 4102 (UNIQUE)
• Communication Interface: RS485 (ROGER standard), Wiegand, DALLAS (DS1990A emulation)
• Wiegand Bit Range: 26-66 bit
• Power Supply Voltage: 10-15 VDC
• Current Consumption (Standby): 30 mA
• Current Consumption (Max): 50 mA
• Maximum Reading Range: 10 cm
• Visual Indicators: 2x LED (Red/Green)
• Audio Indicator: Buzzer
• Ingress Protection (IP) Rating: IP67
• Operating Temperature: -25°C to +60°C
• Housing Material: Polycarbonate

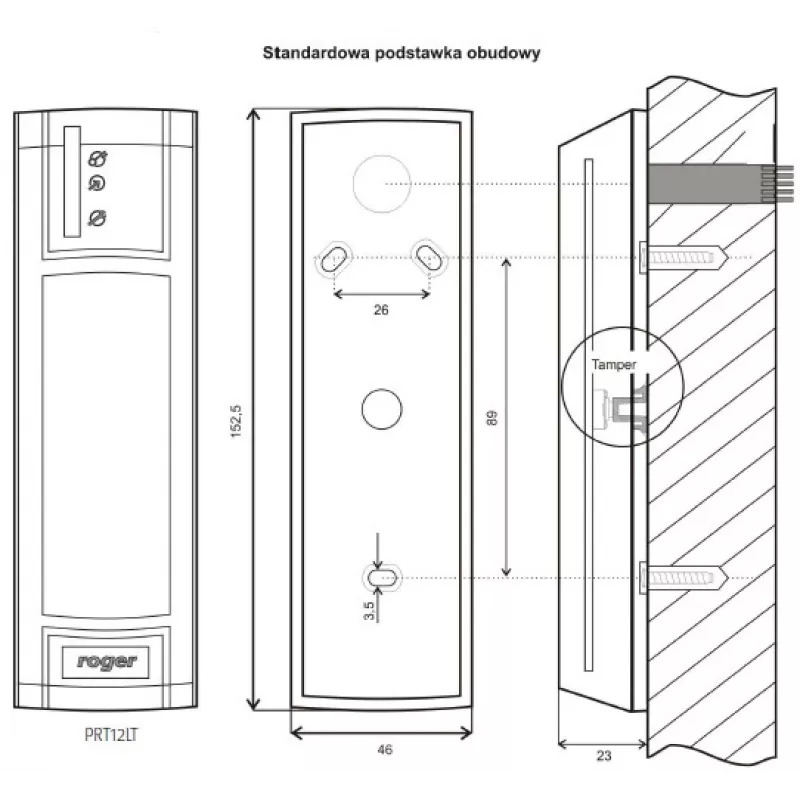

• Mounting Type: Surface Mount
• Color: Black
• Integrated Cable Length: 0.5 m

Recommendations

For optimal performance, pair with ROGER access control panels. Ensure proper mounting on a flat surface and protect the cable from mechanical stress. Test reading range in the intended environment.
