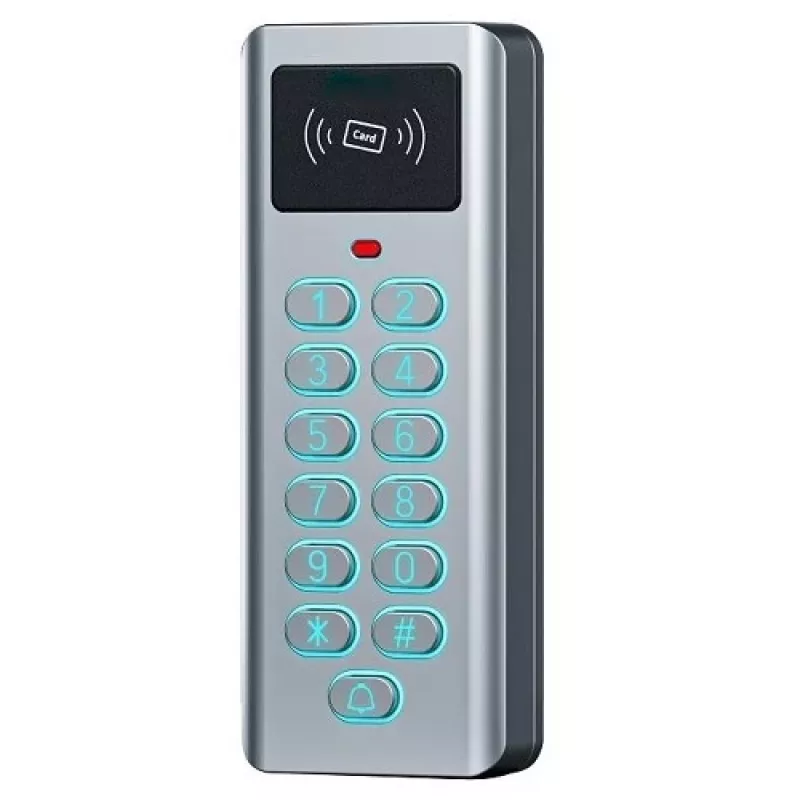

HISMART TV993758 IP65 Standalone Access Control Keypad with Mifare Card Reader and Integrated Controller

Built around a die-cast zinc alloy housing with an IP65 weatherproof rating, the HISMART TV993758 shrugs off rain, dust, and temperatures from -20°C to 60°C while managing up to 2000 users through card, PIN, or card-plus-PIN authentication. This standalone keypad integrates a Mifare 13.56 MHz reader, a backlit keypad, and a programmable controller in one compact unit that can drive a door strike directly.

Overview

The TV993758 is a complete access control solution for single doors and gates. It accepts standard ISO/IEC 14443 Type A Mifare cards, supports 4-6 digit PINs, and offers three authentication modes: card only, PIN only, or card plus PIN for higher security. Programming is done entirely via the keypad—no software or computer required. The built-in relay output (NO/NC/COM) connects directly to an electric lock, while the door sensor and exit button inputs enable full door monitoring and request-to-exit functionality. Wiegand 26/34 input and output allow integration with existing access control panels or expansion to a multi-door system.

What stands out

• IP65-rated housing protects against water jets and dust ingress
• Zinc alloy construction delivers durability for outdoor and industrial environments
• Mifare 13.56 MHz card technology is widely used and secure
• Supports standard ISO/IEC 14443 Type A cards
• Adjustable door relay time from 0 to 99 seconds
• Door open alarm and tamper alarm increase security

Technical details

• Authentication: Card, PIN, Card + PIN
• User Capacity: 2000
• Card Technology: Mifare 13.56 MHz (ISO/IEC 14443 Type A)
• Keypad: Backlit, PIN length 4-6 digits
• Output: Relay NO/NC/COM for door lock
• Interfaces: Wiegand 26/34 input & output, door sensor, exit button
• Operating Voltage: DC 12V
• Current Draw: Standby < 30mA, Active < 100mA
• Operating Temperature: -20°C to 60°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Housing Material: Zinc Alloy
• Installation: Surface Wall Mount

Our verdict

For installers and facility managers needing a rugged, no-nonsense single-door access control, the TV993758 delivers standalone reliability with the flexibility to grow into a networked system. Its IP65 zinc alloy body and wide temperature range make it a solid choice for outdoor or harsh environments.
