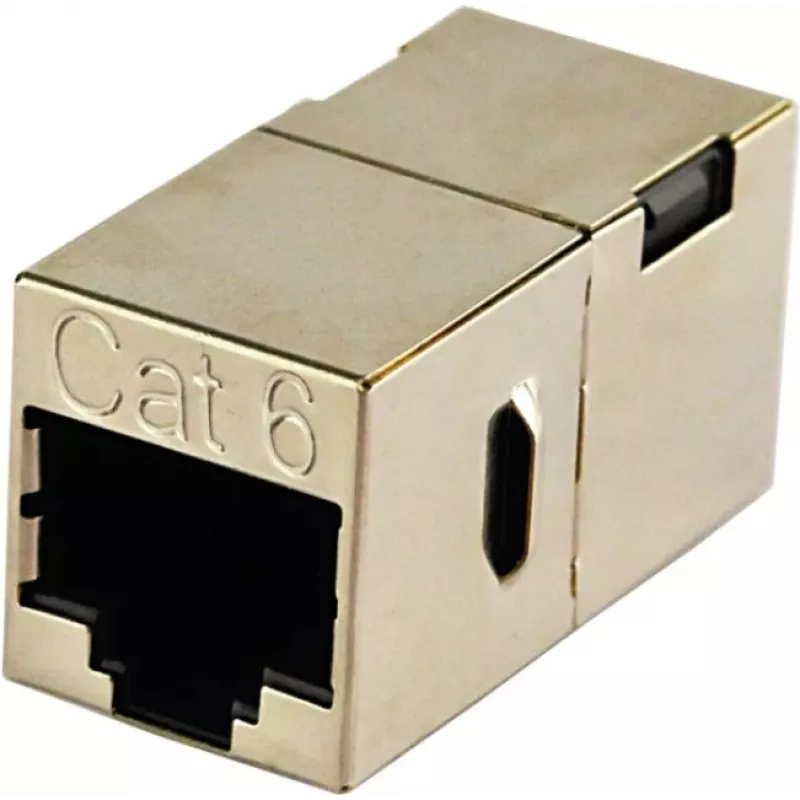

RJ45 Connector Schwaiger NWDK6531 Silver

The Schwaiger NWDK6531 Silver RJ45 connector provides two RJ45 ports in a compact, metal-finished module designed for wired Ethernet connections. Its silver appearance and robust housing make it suitable for installation in patch panels, keystone wall plates, or custom network enclosures where reliable physical connectors are required. The component is intended for terminating or extending network cabling and creating stable contact points for data transmission in residential and small office networks.

Advantages

This two-port RJ45 connector offers a durable metal finish that resists wear and provides consistent grounding and shielding when integrated into shielded cabling systems. The connector is compatible with standard RJ45 plugs and is constructed to ensure stable electrical contact and minimal signal loss. Its compact design simplifies installation in limited spaces and supports straightforward replacement or upgrades of existing network outlets.

Suitable for

• Home network installations and upgrades
• Small office and SOHO wired Ethernet connections
• Patching or extending Cat5e/Cat6 cabling runs
• Keystone wall plates and custom rack or enclosure panels

Key specifications

• Connector type: Dual RJ45 ports for Ethernet cabling
• Finish: Silver metal housing for enhanced durability
• Compatibility: Standard 8P8C RJ45 plugs and shielded/unshielded twisted-pair cables
• Form factor: Compact module suitable for wall plates and panels
• Use environment: Indoor networking for residential and office applications

How to use

Mount the connector into a compatible keystone opening or panel cutout and secure it according to the enclosure or plate instructions. Prepare the network cable by stripping the outer jacket and arranging the conductors according to the wiring standard in use (T568A or T568B). Insert the terminated cable plug into the RJ45 port until it clicks into place, or use the connector as a pass-through module when wiring with punch-down style modules depending on the installation method. Verify connectivity with a network tester after installation to ensure proper wiring and signal continuity.

Recommendations

For best performance, use appropriate category-rated cabling (Cat5e or Cat6) and maintain proper cable management to reduce bending, kinking, and electromagnetic interference. When integrating into shielded systems, ensure the metal housing is properly grounded. Test each connection after installation to confirm data rates and link stability.
