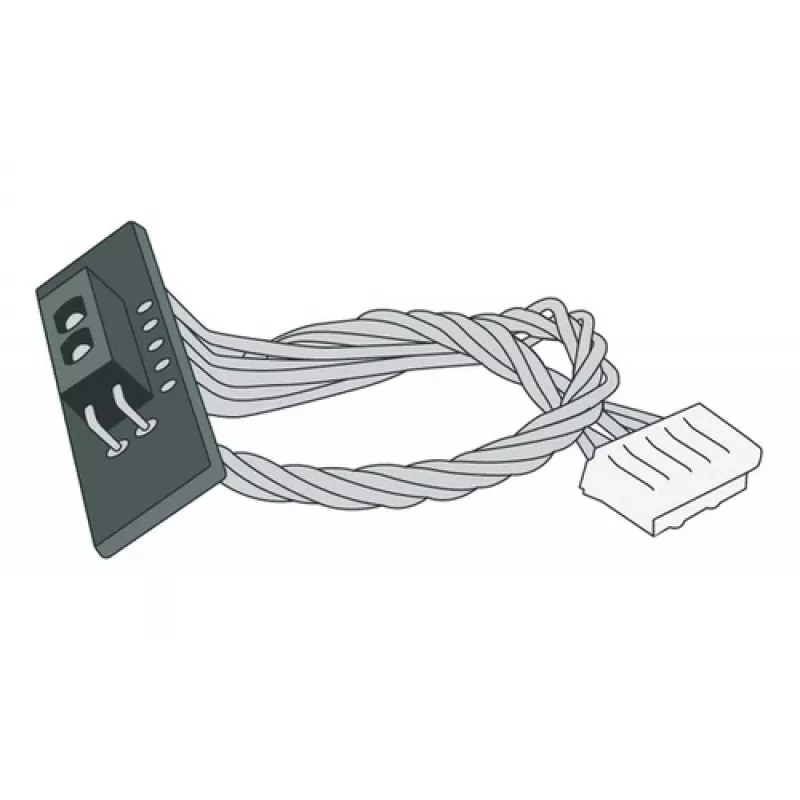

Replacement Upper Gap Kit for Zebra printers P1027135-004 — movable upper gap assembly

Movable Upper Gap Kit Zebra P1027135-004 is a replacement upper gap assembly designed for compatible Zebra thermal printers. It restores correct media sensing and gap detection by replacing the movable upper gap component, helping to maintain accurate label alignment and consistent media feed. The part is intended for service and repair of Zebra label printers used in business and industrial environments where reliable label sensing is necessary for print accuracy and uninterrupted operation.

Advantages

This replacement upper gap assembly restores the printer's ability to detect media gaps and black marks accurately, reducing misfeeds and print alignment errors. As an OEM-compatible component for Zebra thermal printers, the kit supports consistent media transport and helps extend the working life of the printer by replacing a worn mechanical sensing element. Installation returns the original sensing geometry, which improves print job reliability and reduces downtime associated with sensor-related errors.

Suitable for

• Routine maintenance and field repair of compatible Zebra thermal label printers
• Environments requiring accurate gap or black-mark sensing for label alignment
• Operations aiming to restore consistent media feed and reduce print errors
• Service technicians replacing worn or damaged media sensing parts

Key specifications

• Component type: movable upper gap assembly for thermal label printers
• Function: media gap and black-mark detection support; mechanical sensing element
• Compatibility: designed for use in compatible Zebra thermal printers that accept this style of upper gap assembly
• Material characteristics: durable plastic and precision molded moving parts intended for mechanical wear replacement
• Operational role: restores correct media positioning, alignment and feed consistency

How to use

Power off the printer and follow the manufacturer's service instructions to access the media path. Remove the old upper gap assembly according to the printer-specific disassembly steps, taking care to note sensor and spring positions. Fit the replacement movable upper gap kit into the original mounting points, ensuring correct orientation and engagement with associated sensors or springs. Reassemble the printer, power it on, and run a calibration or media sensing test to confirm correct gap detection and label alignment before resuming production printing.

Recommendations

Use original service manuals or manufacturer-approved guides for disassembly and installation. After replacement, perform a media calibration and print a test label to verify sensing accuracy. Replace the assembly when repeated misfeeds, sensor errors, or visible wear on the movable parts are observed. Keep the mechanism free of adhesive build-up and dust to prolong service life.
