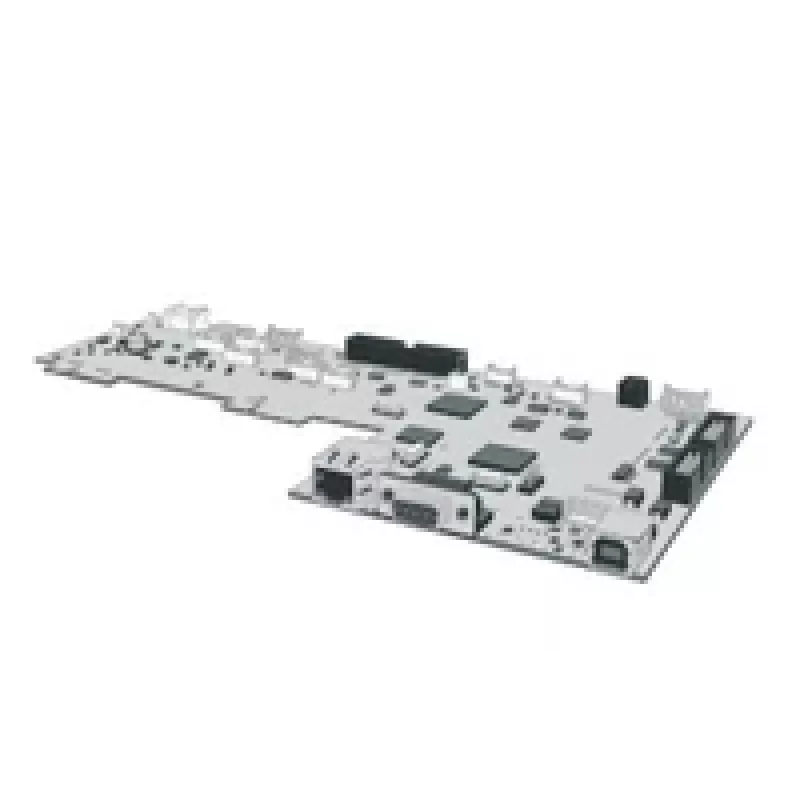

Zebra P1027135-024 printer/scanner spare part/accessory Motherboard

The Zebra P1027135-024 motherboard is a replacement main board designed specifically for the GX430T label printer. It restores control and communication functions between the printer’s mechanical components, thermal printhead, sensors and external interfaces. Intended for service and repair, the board matches the GX430T’s electrical and layout requirements to maintain reliable printing performance and compatibility with existing printer assemblies.

Advantages

This replacement motherboard provides precise processing of print jobs and stable communication with host devices, reducing downtime associated with electronic faults. It supports the GX430T’s thermal printing operations and sensor feedback, enabling consistent label output and accurate media handling. Designed for direct fitment in the GX430T chassis, it simplifies repairs by replacing the faulty control electronics without needing extensive adjustments.

Suitable for

• Repairing a Zebra GX430T label printer with electronic control issues
• Restoring communication between the printer and host systems
• Maintenance in environments that require quick replacement of failed electronics
• Service workshops and field technicians performing on-site printer repairs

Key specifications

• Compatibility: Designed for use with the GX430T label printer model
• Function: Main control board handling printer logic, sensor inputs, and interface signals
• Form factor: Replacement board sized for direct installation into the GX430T chassis
• Interfaces: Supports the GX430T’s existing communication ports and sensor connections
• Reliability: Built to meet the operational demands of thermal label printing

How to use

Power off the printer and disconnect all cables before beginning any repair. Remove the printer cover and locate the existing main board within the GX430T chassis. Carefully disconnect ribbon cables, sensor leads and interface connectors, noting their positions. Unscrew and remove the faulty board, then install the replacement board in the same orientation and secure it with the original mounting hardware. Reconnect all cables to their corresponding connectors, replace the cover, and restore power. Perform a printer self-test and a configuration check to confirm proper operation of sensors, communications and print output.

Recommendations

Use anti-static precautions when handling the motherboard and avoid touching exposed circuitry. Verify firmware compatibility and, if required, update the printer firmware following manufacturer guidance to ensure full functionality after replacement.
