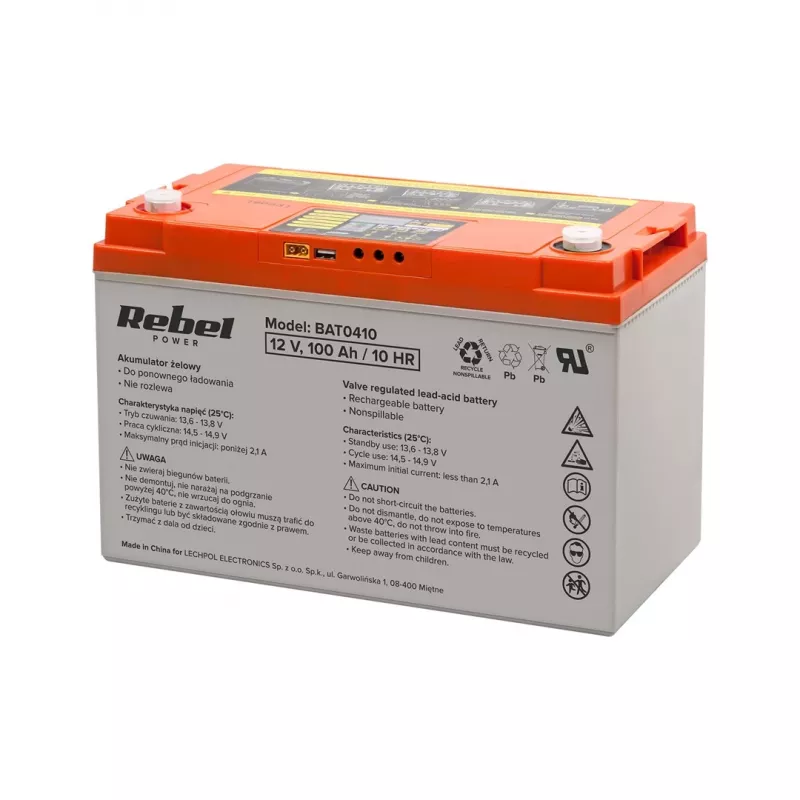

REBEL Deep Cycle Gel Battery With Display 12V 100Ah

Power interruptions and unreliable energy storage can cripple your off-grid or backup systems. The REBEL Deep Cycle Gel Battery With Display 12V 100Ah solves this by delivering stable, maintenance-free power with an integrated LCD for instant status checks. Its VRLA gel technology ensures safe, spill-proof operation in any orientation, making it ideal for solar setups, marine use, RVs, and critical backup applications.

Who is it for

This battery is built for users who need dependable deep-cycle power without constant upkeep. Whether you're an off-grid homeowner, a boater, an RV enthusiast, or managing a remote telecom site, the REBEL gel battery provides long-lasting energy storage with a clear display to monitor voltage and charge level at a glance.

Main features

• Integrated LCD display shows real-time voltage and charge level
• VRLA gel electrolyte: maintenance-free, sealed, and spill-proof
• Deep cycle design: up to 1200 cycles at 30% depth of discharge
• High discharge current: 1000A for 5 seconds, ideal for engine starts
• Wide operating temperature range: -20°C to 50°C (discharge)
• Low self-discharge: less than 3% per month at 25°C
• M8 bolt terminals for secure, high-current connections
• Long design life: 10-12 years in float service

Specifications

• Battery type: VRLA Gel (Valve Regulated Lead Acid Gel)
• Nominal voltage: 12V
• Nominal capacity: 100Ah (C10 at 20°C)
• Max. discharge current: 1000A (5 seconds)
• Max. charging current: 30A
• Float charge voltage: 13.5V - 13.8V (at 25°C)
• Cycle use voltage: 14.4V - 14.7V (at 25°C)
• Internal resistance: approx. 4.5 mΩ (fully charged, 25°C)
• Self-discharge rate: less than 3% per month (at 25°C)
• Operating temperature (discharge): -20°C to 50°C
• Operating temperature (charge): 0°C to 40°C
• Design life: 10-12 years (float service at 25°C)
• Cycle life: approx. 400 cycles at 50% DOD, 1200 cycles at 30% DOD
• Electrolyte: thixotropic gel
• Maintenance: maintenance-free
• Safety features: sealed, spill-proof, explosion-proof valve
• Certifications: CE, RoHS

Tips

To maximize battery life, avoid deep discharges below 50% capacity whenever possible. Store in a cool, dry place and recharge at least every six months if not in use. Use a compatible gel battery charger set to the recommended voltage ranges for optimal performance.
