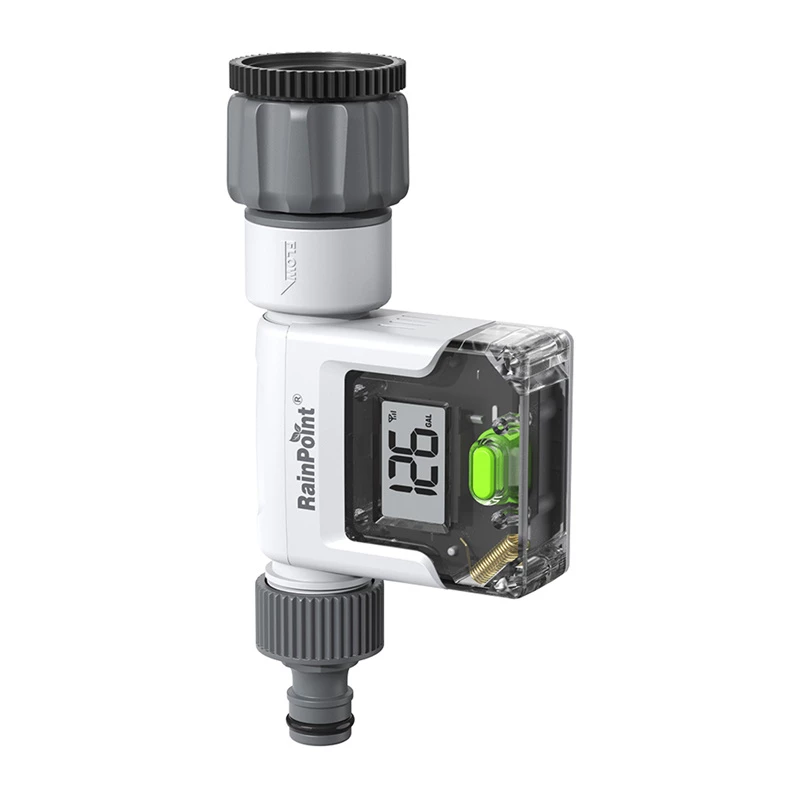

RainPoint Digital Water Flow Meter

The RainPoint Digital Water Flow Meter lets you monitor water usage in real time, measuring flow rates from 20 to 2,400 L/h with an accuracy of ±5%. Data is shown on an LCD screen and in a mobile app, so you can analyze consumption by hour, day, or month. With an operating pressure range of 0.5–8 bar and standard 3/4" connections, it integrates easily into a garden system.

Key features

• Real-time water usage monitoring on LCD screen and in app
• Usage history and data analysis with hourly, daily, and monthly graphs
• Notifications and limit control: set alerts when a water usage threshold is exceeded
• Switch units between liters and gallons and adjust measurement results by percentage
• Split design for easy installation; flow direction indicator (FLOW) helps prevent installation errors
• Can be mounted on a faucet or on a hose end
• IPX6 protection rating against water
• Sleep mode and low-battery notifications

Specifications

• Brand: RainPoint
• Model: HCS008FRF
• Measurement range: 20–2400 l/h
• Accuracy: ±5%
• Operating pressure: 0.5–8 bar
• Connectivity: Requires a RainPoint hub (2.4 GHz WiFi)
• Range: Up to 60 m
• Power supply: 3 × AAA
• Water resistance rating: IPX6
• Inlet: 3/4"
• Outlet: 3/4"
• Dimensions: Height approx. 200 mm, module width 75 mm
