Radiator mount Alphacool ES D-Plug Chrome Brass 2 cm 55 g

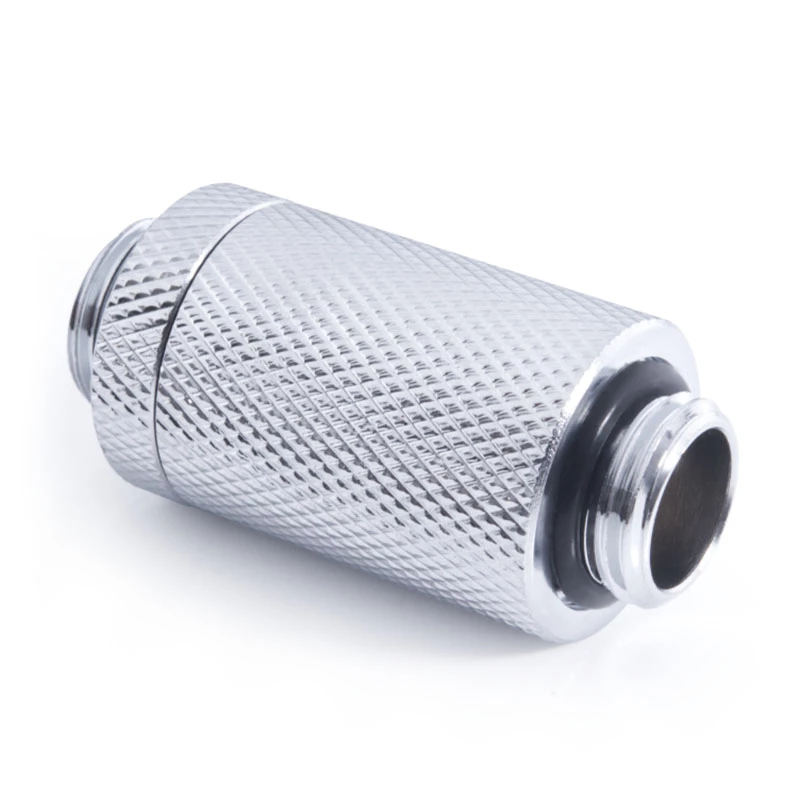

The Alphacool ES D-Plug (G1/4" male × 2) is a brass radiator mount and connector for water-cooling loops. Designed for quick plug-in connections between components such as GPU and CPU coolers or radiators, the ES D-Plug offers stable sealing via two closely fitting O-rings on the male part and is tested to hold up to 1.5 bar. The connector is available with a chrome finish, a diameter of 2 cm and a weight of 55 g.

Advantages

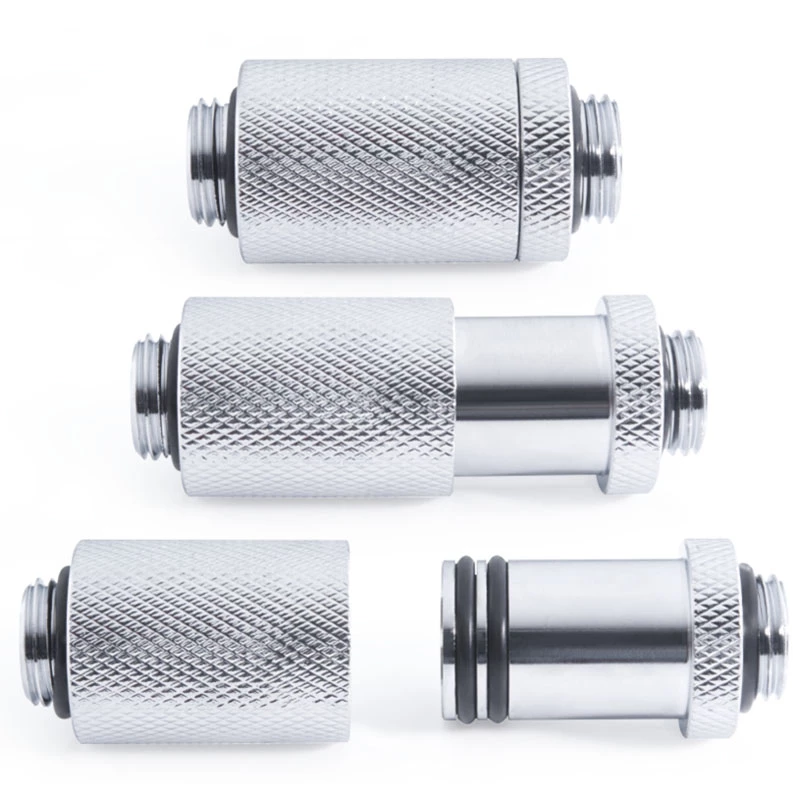

The ES D-Plug plugs into place rather than being screwed in, enabling faster installation and easier replacement. Two O-rings on the male component provide the required tightness and stability; Alphacool lab tests confirm stability up to 1.5 bar. The connector has a variable length — it can be extended by up to 15 mm to compensate for alignment inaccuracies and to prevent hose twisting. Replacement O-rings in three colours are supplied.

Suitable for

• Connecting radiators to GPU or CPU water blocks
• Compact or tight-layout custom PC liquid cooling loops
• Quick component replacement or modular cooling builds

Key specifications

• Manufacturer: Alphacool
• Model: ES D-Plug (G1/4" male × 2)
• Material: Brass, chrome finish
• Effective diameter: 2 cm
• Weight: 55 g
• Available lengths: 20 mm, 25.5 mm, 31.5 mm
• Extendable length: up to 15 mm
• Sealing: two O-rings on male component; replacement O-rings included (3 colours)
• Tested pressure stability: up to 1.5 bar
• MPN: 17587
• EAN: 4250197175876

How to use

Push the ES D-Plug male component into the corresponding female G1/4" thread until both O-rings are fully recessed into the female part to ensure correct sealing and stability. If additional reach is required, pull the connector apart to extend it by up to 15 mm, then insert and seat again. For removal, pull the connector straight out to avoid twisting hoses or misaligning the mating threads.

Recommendations

Always verify that both O-rings on the male component are fully seated inside the female connector to maintain pressure tightness. Inspect O-rings for wear or damage when performing maintenance and replace with the supplied spare O-rings as needed. Do not exceed the tested pressure of 1.5 bar for reliable operation.
