Heatsink Alphacool 14192 Steel Black 144mm x 607mm x 86mm

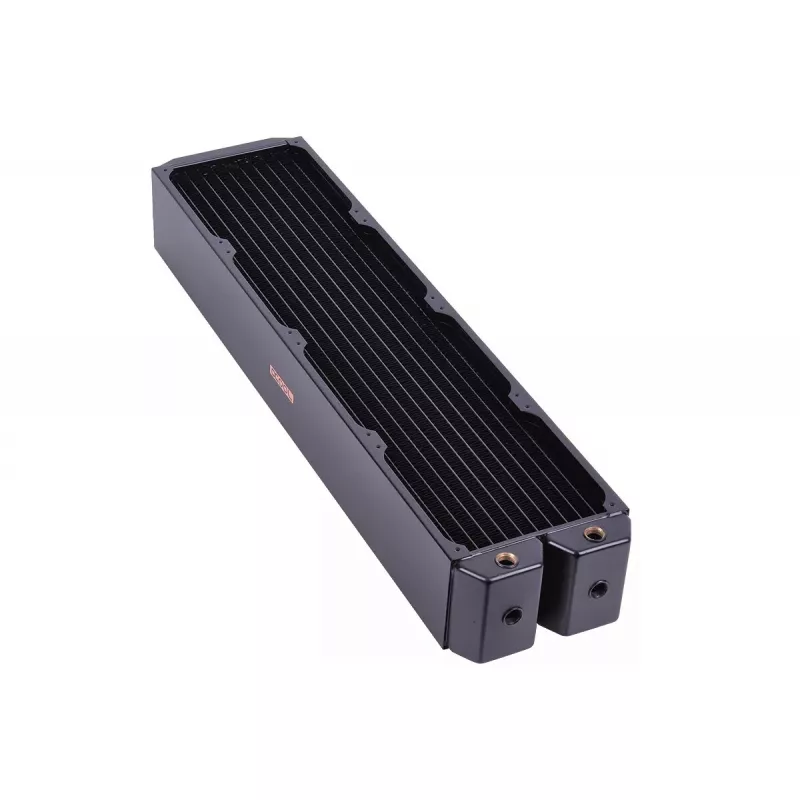

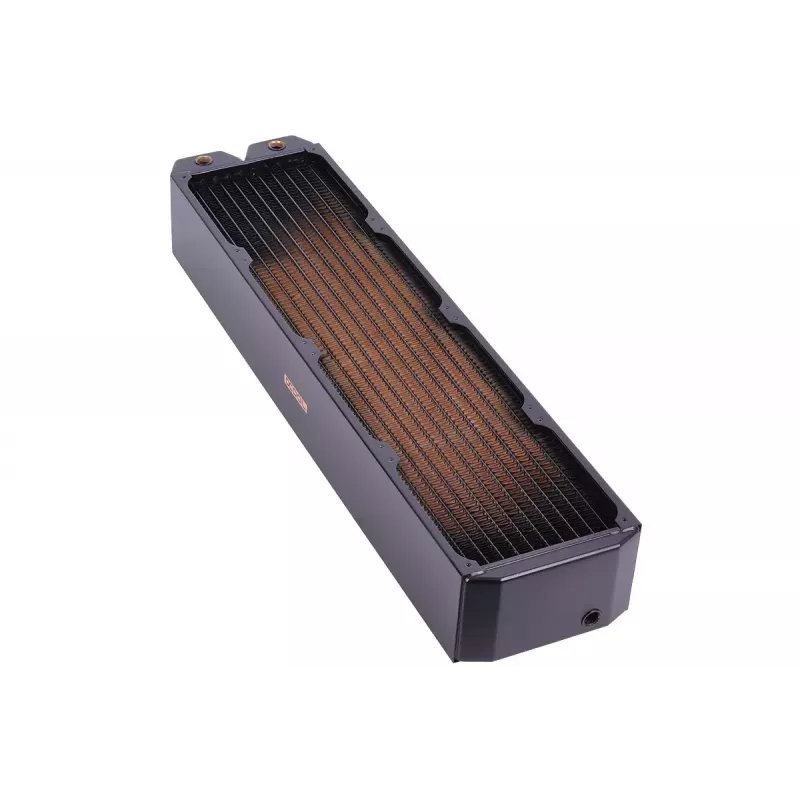

The Alphacool 14192 heatsink is a steel cooling radiator in a black finish, sized 144 mm × 607 mm × 86 mm and weighing 3.448 kg. Designed for use in water-cooling and custom cooling loops, it provides a durable all-steel construction and flat chamber design that reduces overall length while directing coolant flow for consistent heat transfer.

Advantages

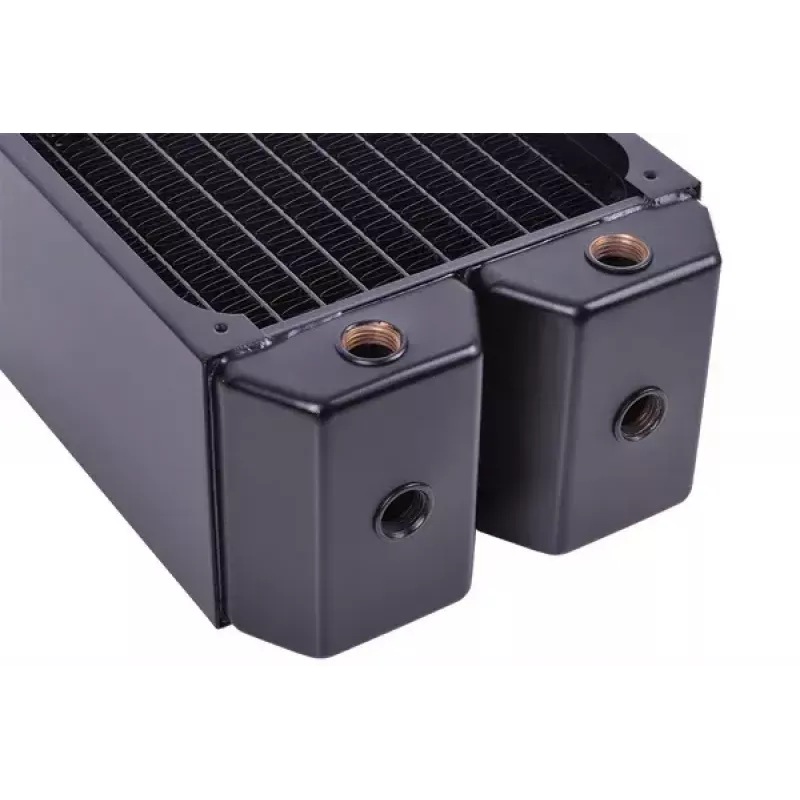

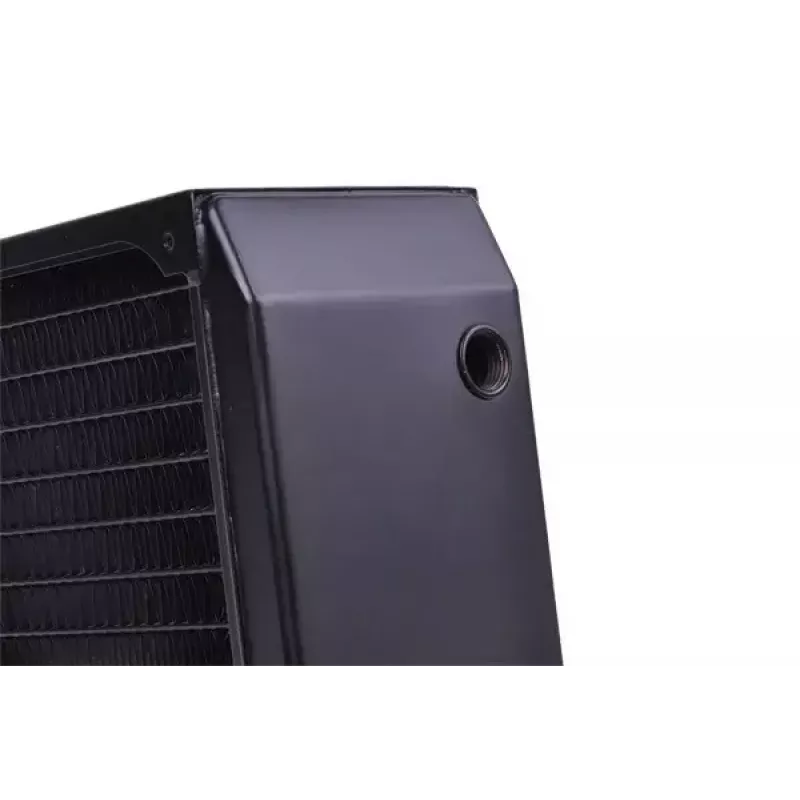

This heatsink features full-metal construction of main parts and flat chambers that allow compact mounting and improved coolant flow. Multiple inlet/outlet fitting positions increase installation flexibility and reduce the need for angled fittings, while an internal protective ledge prevents damage from over-inserted screws. Standard M3 threads simplify fan and grill mounting; a 1/4" threaded opening on compatible models supports de-aeration and filling.

Suitable for

• Custom PC water-cooling loops
• Radiator replacement or upgrade in compact cases
• Builds requiring different fan sizes and thickness options

Key specifications

• Brand: Alphacool
• Model / MPN: 14192
• Dimensions: 144 mm × 607 mm × 86 mm
• Material: steel (black finish)
• Weight: 3.448 kg
• Type: Heatsink / radiator for cooling loops
• Fan diameter: 0 mm (no integrated fan)
• Supported processor sockets: Not supported
• Product colour: Black
• EAN: 4250197141925

How to use

Install the heatsink as part of a custom liquid-cooling loop following your system layout. Fasten fans or grills using M3 screws and position fittings in the inlet/outlet chambers to minimise hose bends. If present on your model, use the 1/4" threaded opening for de-aeration or to attach a fill port during filling. Ensure fittings are tightened to the manufacturer-recommended torque and test the loop for leaks before powering the system.

Recommendations

Choose fan sizes and speeds appropriate to the radiator thickness and your noise/performance balance. For compact enclosures, use the multiple fitting positions to reduce angled adapters and maintain higher coolant flow. Perform regular checks for dust accumulation and inspect fittings for tightness after initial operation.
