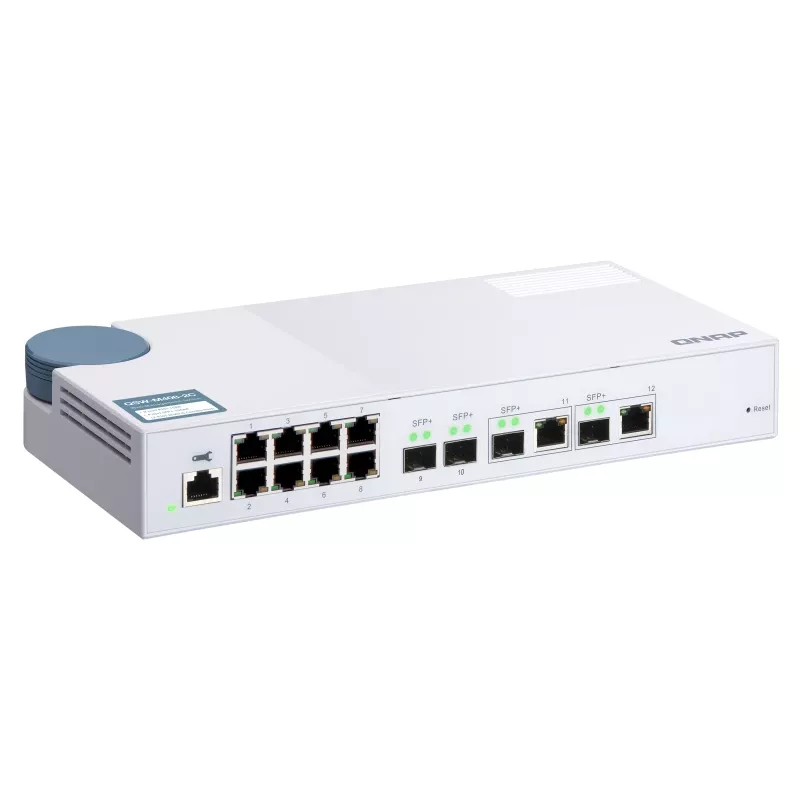

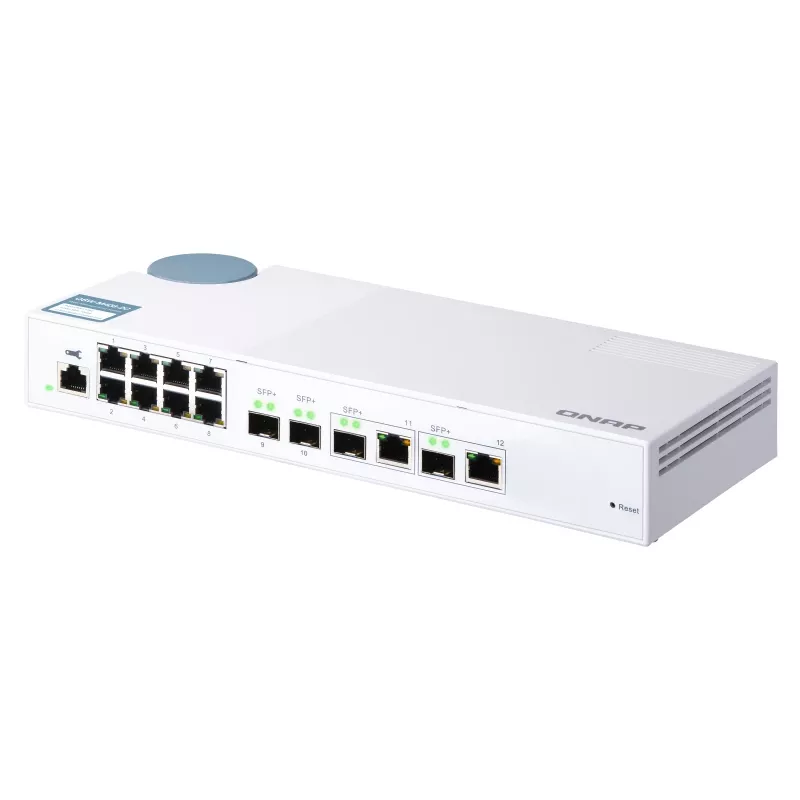

QNAP QSW-M408-2C network switch Managed L2 10G Ethernet (100/1000/10000) White

The QNAP QSW-M408-2C is a Layer 2 web-managed network switch that combines four 10GbE SFP+ ports (two of which are SFP+/RJ45 combo) and eight Gigabit RJ‑45 ports. Designed for hybrid high-speed networks, it supports 10GbE and NBASE‑T multi-speed operation (10G / 5G / 2.5G / 1G / 100M) over existing Cat5e/Cat6a cabling, provides a 96 Gbps switching capacity and a MAC address table that supports up to 16,000 entries.

Advantages

The QSW-M408-2C offers flexible deployment options with both SFP+ and RJ‑45 interfaces, enabling connections with fiber, DAC, or 10G-SFP-T copper transceivers. Its web-based management simplifies Layer 2 configuration and monitoring for users without deep networking expertise. High switching capacity ensures full-duplex performance across ports while NBASE‑T compatibility allows higher-than-gigabit speeds on existing cables.

Suitable for

• Small offices and workgroups requiring multi-gigabit connectivity
• Home labs and NAS environments needing 10G links to storage
• Hybrid networks mixing fiber SFP+ devices and RJ‑45 endpoints
• Environments upgrading from 1G to multi-gig speeds without rewiring

Key specifications

• Model: QNAP QSW-M408-2C
• Switch type: Managed Layer 2 (web-managed)
• Ports: 4 × 10GbE SFP+ (2 are SFP+/RJ45 combo), 8 × Gigabit RJ‑45
• 10G/NBASE‑T speeds supported: 10G / 5G / 2.5G / 1G / 100M
• Switching capacity: 96 Gbps
• MAC address table: 16,000 entries
• Standards: IEEE 802.1Q, IEEE 802.3ad and other Layer 2 standards
• Color: White
• Weight: 1.15 kg

How to use

Place the QSW-M408-2C on a desktop or a ventilated shelf and connect it to your network power source. Use SFP+ modules or DAC cables to link to SFP+ devices and RJ‑45 cables for Gigabit or NBASE‑T connections. Access the web management interface from a browser to configure VLANs, link aggregation (IEEE 802.3ad), port settings and basic Layer 2 features. Monitor port status and traffic through the built-in web UI to verify correct operation.

Recommendations

For best multi-gig performance over copper, use quality Cat5e or Cat6a cabling and supported 10G-SFP-T transceivers; reserve SFP+ ports and DACs for short, high-bandwidth runs and configure link aggregation where higher throughput or redundancy is required.
