Managed Switch PLANET IP30 Industrial L3 8-Port Gigabit Ethernet

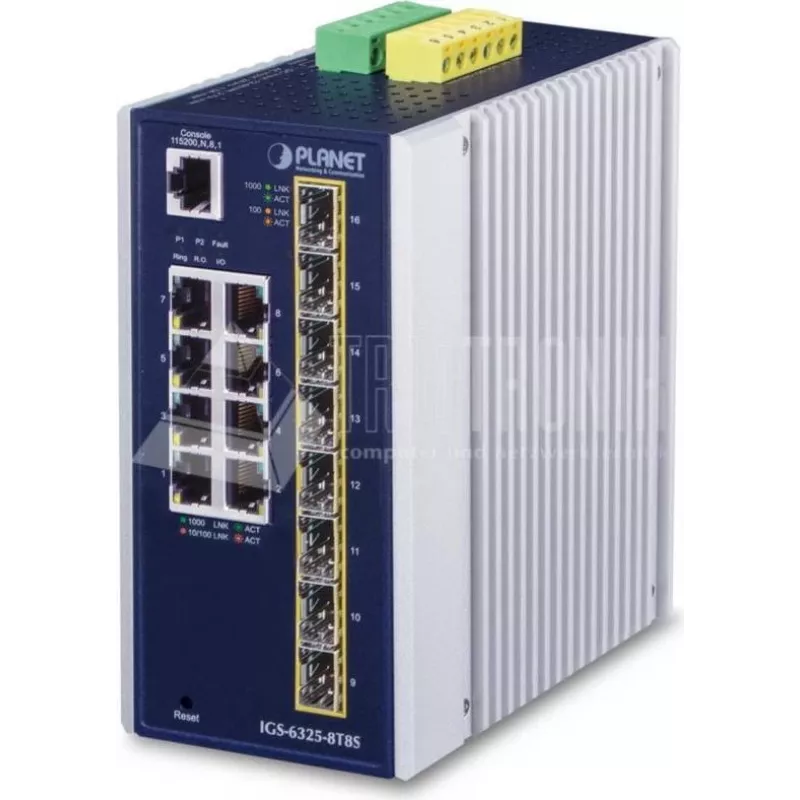

PLANET IGS-6325-8T8S is an industrial IP30 metal‑case Layer 3 managed switch with eight 10/100/1000BASE‑T copper ports and eight 100/1000/2500BASE‑X SFP fiber ports. The switch provides non‑blocking fabric and wire‑speed throughput up to 56 Gbps, operating in a wide temperature range for demanding industrial environments. It supports dual DC 12–48V and AC 24V redundant power inputs and offers management interfaces including console, web and SNMPv3.

Advantages

The IGS-6325-8T8S combines Layer 3 IPv4/IPv6 routing and OSPFv2 support with robust Layer 2 features such as 802.1Q VLAN, Q‑in‑Q, private VLAN, MSTP, link aggregation, IGMP/MLD snooping and Layer 2–4 QoS. It includes industrial features like fast redundant ring recovery (G.8032 ERPS), digital input/output for external alarms, SFP DDM diagnostics, and enhanced cybersecurity with SSHv2, TLS/SSL. The unit is designed for continuous operation with redundant power and event/alert mechanisms (SMTP/SNMP trap, fault alarm).

Suitable for

• Industrial automation networks and factory floors integrating SCADA and HMI systems
• Telecom and carrier Ethernet applications requiring IEEE 1588 timing and MEF service delivery
• High‑capacity server or backbone connections over copper and fiber

Key specifications

• Ports: 8 × 10/100/1000BASE‑T copper, 8 × 100/1000/2500BASE‑X SFP
• Switching capacity: up to 56 Gbps
• Layer support: Layer 2 and Layer 3 (IPv4/IPv6 routing, OSPFv2)
• Redundant power inputs: dual DC 12–48V and AC 24V
• Operating temperature range suitable for industrial use (specified in product literature)
• Management: Web GUI, console, Telnet, SNMPv3
• Security: ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Resiliency: G.8032 ERPS, MSTP, fast recovery (~10 ms in ring topology)
• Additional features: SFP DDM diagnostics, digital input/output for external alarms, Modbus TCP support

How to use

Install the IGS-6325-8T8S on a DIN‑rail or appropriate mounting surface in a protected industrial cabinet and connect power to both redundant power inputs if available. Connect copper devices to the Gigabit RJ‑45 ports and fiber links via appropriate SFP transceivers in the SFP slots. Access the device for initial configuration through the console port or the built‑in web GUI; secure remote management via SNMPv3 or SSHv2/TLS is recommended. Configure VLANs, routing (IPv4/IPv6), QoS and redundancy features (ERPS/MSTP) according to network design and enable Modbus TCP if integration with SCADA/HMI is required.

Recommendations

Use appropriate SFP transceivers rated for the required distance and temperature range, enable redundant power inputs for critical installations, and apply SNMPv3 or SSHv2/TLS for secure management. For time‑sensitive applications, configure IEEE 1588 or synchronous Ethernet and enable ERPS or MSTP to achieve fast link recovery.
