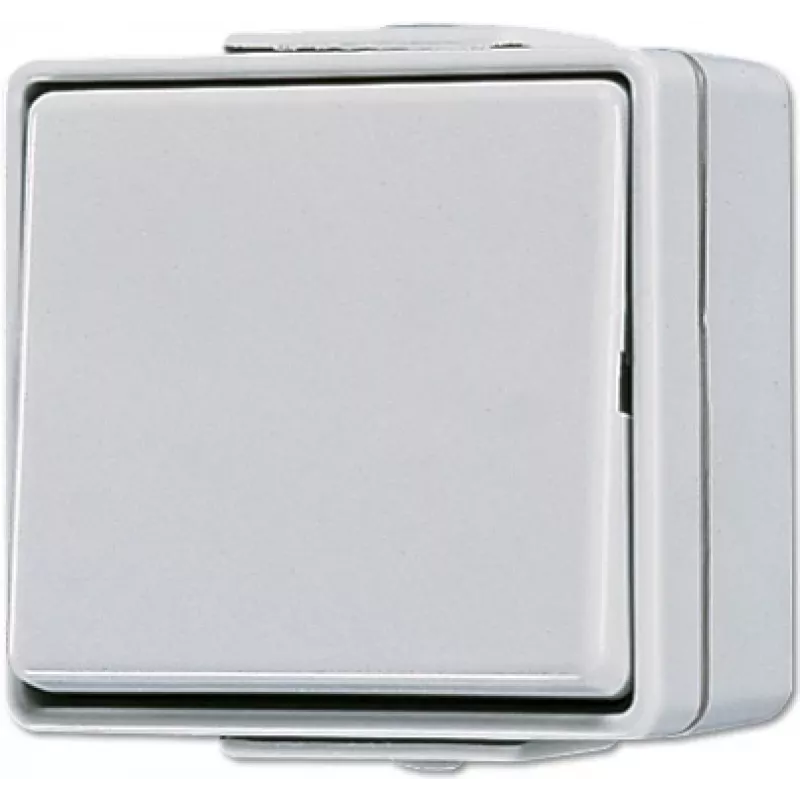

Pushbutton switch Jung 606 W 1P wired 250 V 10 A grey

Jung 606 W is a 1-pole pushbutton switch with wired terminals, designed for control circuits and basic on/off functions in residential and light-commercial environments. The compact grey enclosure and screwless terminals allow easy installation for switching loads or signaling devices. The switch is rated for alternating current up to 250 V and a nominal current of 10 A, providing reliable operation for typical lighting and control applications. It supports illumination in the OFF position when used with compatible lamps.

Advantages

The product features screwless terminals that accept wires up to 2.5 mm², enabling straightforward wiring without the need for screw clamping. Its 1-pole design and wired connectivity make it suitable for single-circuit switching tasks, while the standard 250 V / 10 A rating matches common household and light-commercial electrical installations. Optional illumination in the OFF position is supported via specific lamp references, allowing visual feedback or signaling when required.

Suitable for

Key specifications

How to use

Install the Jung 606 W pushbutton into a compatible switch module or flush-mounted frame according to local electrical regulations. Prepare conductors up to 2.5 mm² and insert them into the screwless terminals ensuring a secure connection. Connect the switch in series with the load for standard on/off operation. If illumination in the OFF position is desired, fit a compatible lamp module designed for 230 V or low-voltage operation or an approved LED lamp type, following the lamp manufacturer’s instructions.

Recommendations

For safe and reliable operation, have installation and any lamp selection performed by a qualified electrician. Verify compatibility of any illumination module with the Jung 606 W and with the supply voltage (230 V or low voltage) before connecting. Observe local wiring regulations and recommended load limits to avoid circuit overload.
