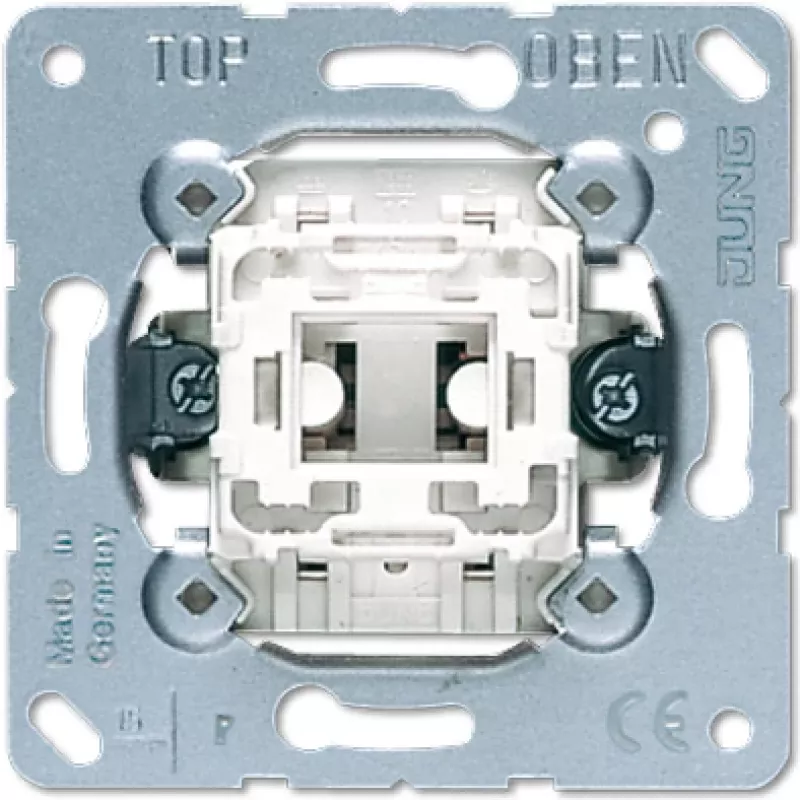

Switching Module JUNG 507 U — metallic white, AC 250 V, 10 A

The JUNG 507 U switching module in metallic white is a compact flush-mounted electrical component designed for controlling AC circuits up to 250 V and currents up to 10 A. Intended for integration into standard installation frames, this switching module provides a simple on/off control function for lighting and other loads within its rated parameters. Its metallic white finish blends with modern interior fittings while keeping a low profile behind cover frames.

Advantages

The module offers a compact design suitable for flush installation, reliable switching for loads within the 10 A rating, and compatibility with standard wall-mounting systems. Its metallic white surface provides a neutral aesthetic that works with various frame colors and styles. Construction and electrical ratings are adapted for residential and light commercial electrical installations where a space-saving switching solution is required.

Suitable for

Key specifications

How to use

Install the module into a compatible flush-mount frame according to local electrical codes and the manufacturer's mounting requirements. Ensure mains power is disconnected before wiring. Connect line and load conductors to the module's terminals, respecting polarity and grounding practices where applicable. After secure mounting and connection, restore power and verify correct switching operation with intended loads within the specified voltage and current limits.

Recommendations

Use the module only within its rated AC 250 V and 10 A limits. For loads with higher starting currents or inductive characteristics, verify suitability or consider using an appropriate contactor or relay. Regularly inspect connections and the surrounding frame for secure mounting and absence of overheating during operation.
