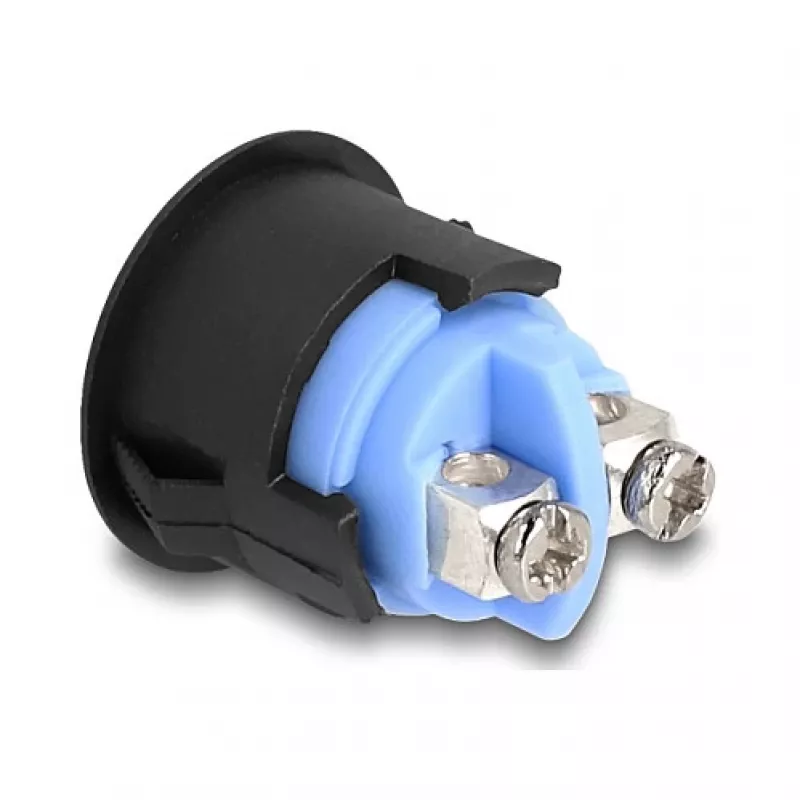

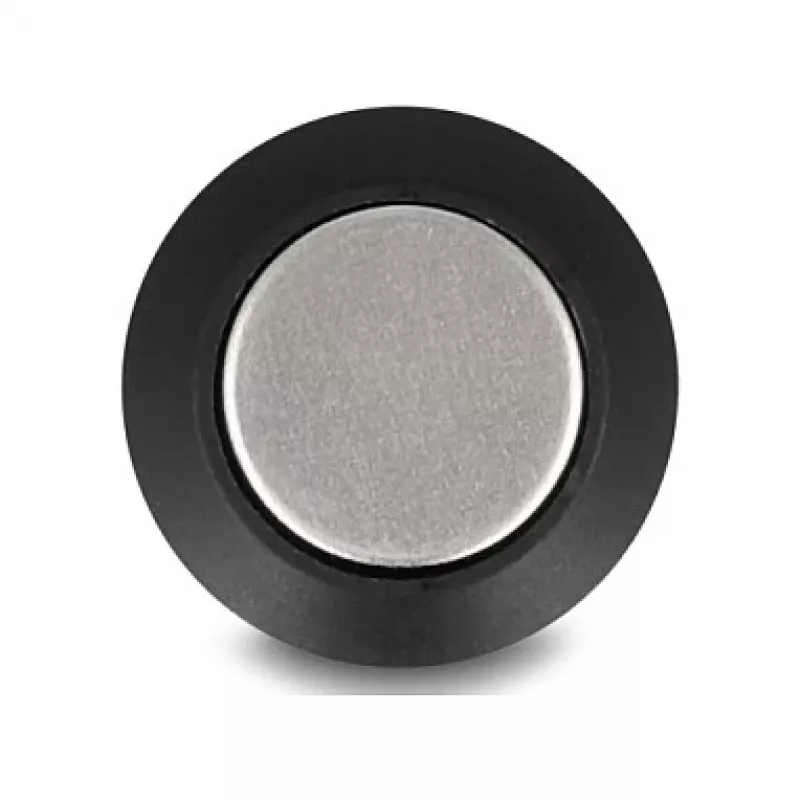

Push Button DELOCK 22045 16 mm, plastic housing, 2x screw terminals

The DELOCK mechanical push button with a 16 mm actuator and plastic housing is a compact manual switch designed for panel mounting. It provides two screw terminals for a secure electrical connection and a robust mechanical switching action. The device suits control panels, instrumentation, DIY electronics and basic industrial control tasks where a reliable, space-saving push button is required.

Advantages

The 16 mm diameter actuator and plastic housing make this push button lightweight and easy to install in standard panel cutouts. Two screw terminals deliver a straightforward and secure method for wiring without requiring special connectors. The mechanical design offers predictable tactile feedback and consistent switching performance over repeated use. Its compact size conserves panel space while remaining accessible for manual operation.

Suitable for

• Control panels and operator consoles
• Industrial and laboratory instruments
• DIY electronics and hobby projects
• Reset or manual control functions in machinery

Key specifications

• Actuator diameter: 16 mm
• Housing material: plastic
• Terminal type: two screw terminals for electrical connection
• Mounting style: panel mount
• Switch type: mechanical push button

How to use

Prepare a 16 mm diameter panel cutout and secure the push button into the panel according to the mounting method. Strip appropriate lengths of wire, insert conductors into the two screw terminals and tighten screws to ensure firm contact. Verify correct wiring in relation to the controlled circuit and apply power to test the switching action. Operate the actuator to confirm reliable tactile response and electrical continuity during press and release.

Recommendations

Use appropriately rated wiring and ensure connections are tightened to prevent loosening from vibration. Avoid exposing the plastic housing to prolonged direct sunlight or aggressive chemicals that could degrade the material. For safety, disconnect power before installation or maintenance and verify compatibility with the system voltage and current requirements.
