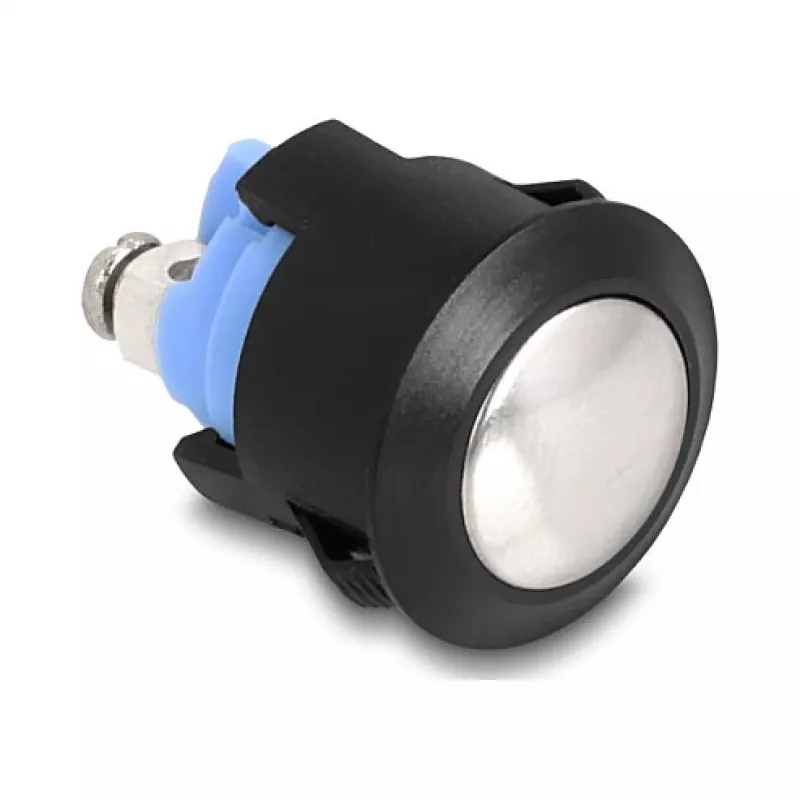

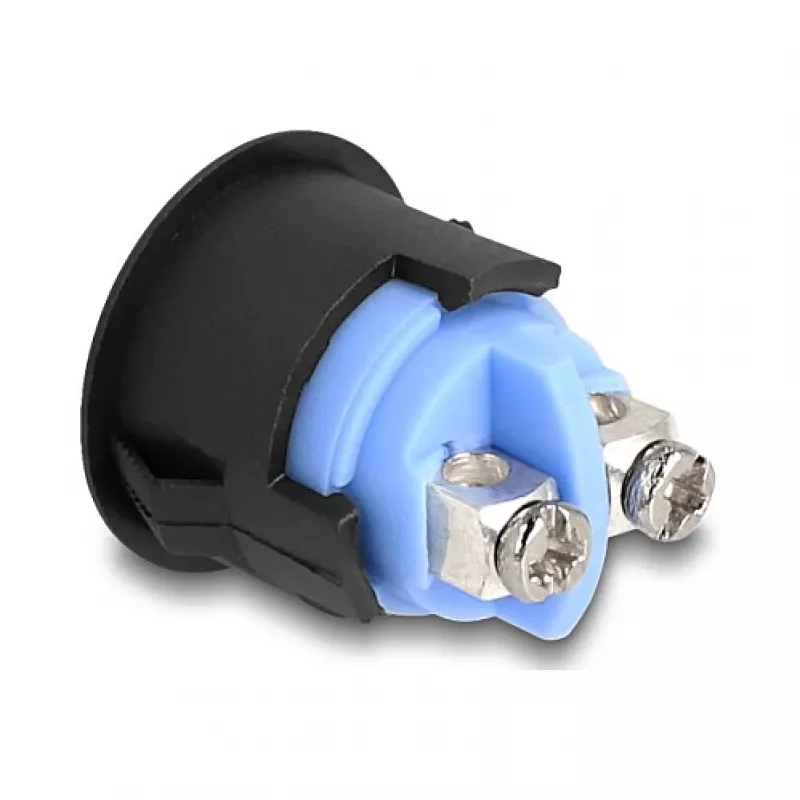

Push Button DELOCK 22044 16 mm with 2 screw terminals

DELOCK 16 mm push button model 22044 is a compact panel-mounted control switch designed for manual operation in control panels and small machines. The device features a 16 mm mounting diameter and two screw terminals for straightforward electrical connection. Its compact size and simple mechanical operation make it suitable for basic start/stop functions, circuit switching, and integration into DIY electronics and industrial control interfaces.

Advantages

The push button provides a reliable mechanical contact with two screw terminals that allow secure wiring and easy replacement when needed. Its 16 mm panel cutout size reduces required panel space while maintaining clear tactile feedback for the operator. The screw terminal connections simplify installation and maintenance without the need for special crimp connectors.

Suitable for

• Control panels and switchboards
• Machine start/stop controls
• DIY electronics and hobby projects
• Prototyping and test benches

Key specifications

• Mounting diameter: 16 mm panel cutout
• Contact type: single-pole mechanical push button
• Electrical connections: 2 screw terminals for wire fastening
• Operation: manual, momentary or latching depending on panel wiring
• Body style: panel-mounted round push button

How to use

Drill or prepare a 16 mm diameter hole in the panel per the mounting requirement, insert the push button from the front and secure it according to the mounting design. Connect the supply and load conductors to the two screw terminals, ensuring correct polarity and secure tightening to prevent loose connections. Use the push button for manual switching by pressing the actuator; wiring configuration determines whether it functions as momentary or latching switch. Verify electrical ratings and compatibility with the control circuit before installation.

Recommendations

Ensure proper insulation of exposed wiring and torque the screw terminals to the manufacturer-recommended values. Avoid applying excessive mechanical force to the actuator and keep the contact area free of dust and moisture. For safety, isolate power before installation or maintenance and confirm the button's suitability for the circuit voltage and current.
