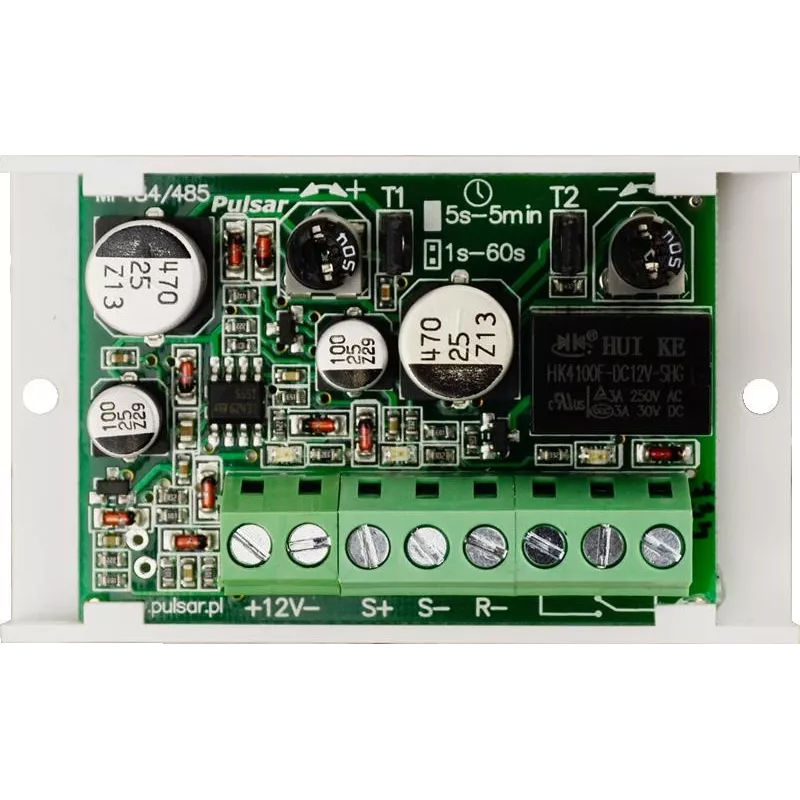

Pulsar AWZ526 Time Relay Module 10-30V DC 1A

The Pulsar AWZ526 is a compact and reliable time relay module designed for precise timing control in access control, alarm systems, and automation applications. With an adjustable delay from 1 to 60 seconds and a monostable (Delay ON) operating mode, it provides flexible timing solutions. The module accepts a wide input voltage range of 10V to 30V DC and features a single relay with NO/NC contacts rated at 1A / 30V DC. Its robust design includes reverse polarity and output short circuit protection, ensuring safe and dependable operation.

Advantages

Easy adjustment via potentiometer for precise timing; compact screw-mount design for simple installation; low power consumption (20 mA relay off, 50 mA relay on); built-in protection features enhance system reliability.

Suitable for

• Access control systems
• Alarm systems
• Industrial automation
• Time delay applications

Key specifications

• Input Voltage: 10V - 30V DC
• Output Type: Relay (NO/NC contacts)
• Number of Relays: 1
• Relay Contact Rating: 1A / 30V DC
• Time Adjustment Range: 1 - 60 seconds
• Time Adjustment Method: Potentiometer
• Operating Mode: Monostable (Delay ON)
• Trigger Input: Short to GND
• Current Consumption (Relay OFF): 20 mA
• Current Consumption (Relay ON): 50 mA
• Operating Temperature: -10°C to +50°C
• Protection Features: Reverse Polarity, Output Short Circuit
• Indicators: Power LED, Relay Status LED
• Mounting Type: Screw Mounting
• Connectors: Screw Terminals

Recommendations

For optimal performance, use a regulated DC power supply within the specified voltage range. Ensure proper wiring and observe polarity to avoid damage. This module is ideal for applications requiring a simple, adjustable time delay.
