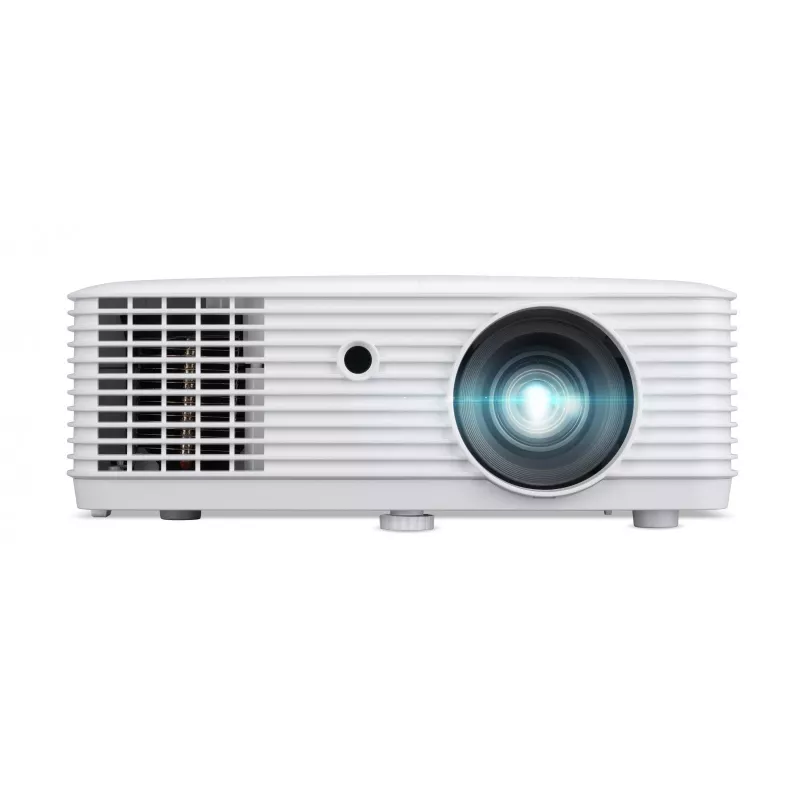

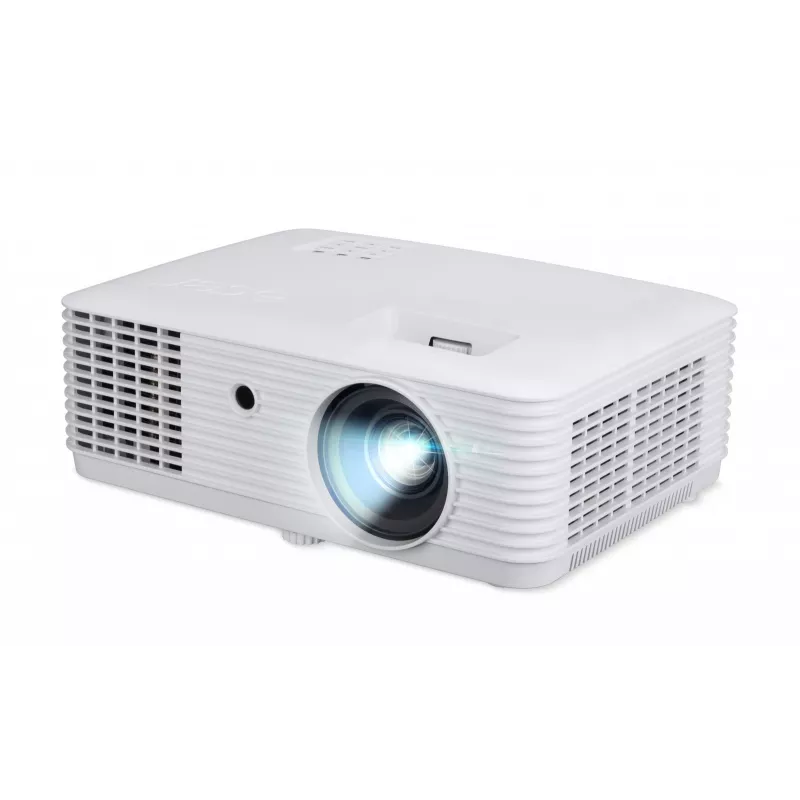

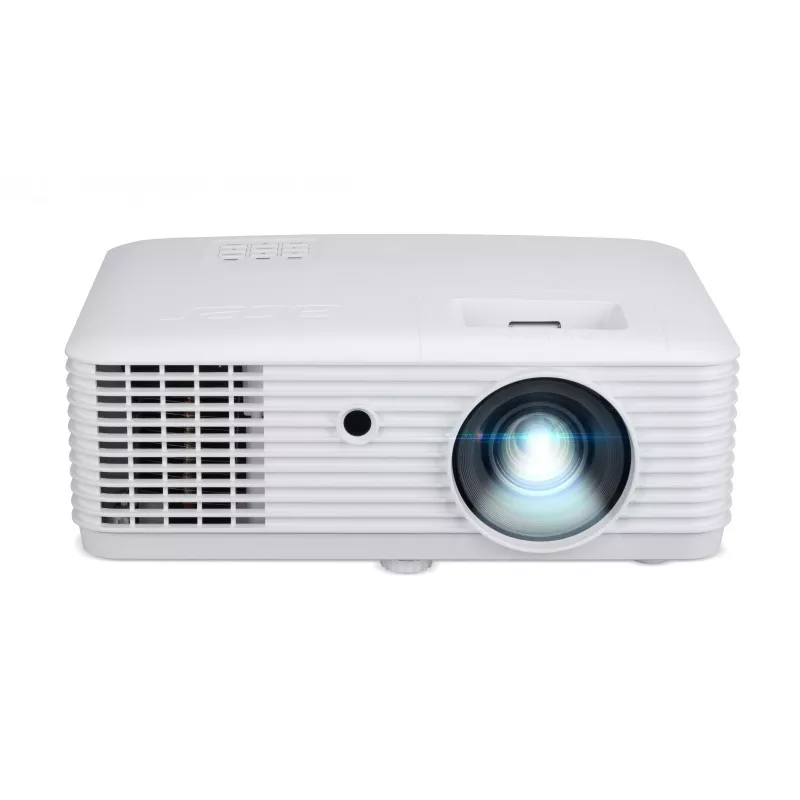

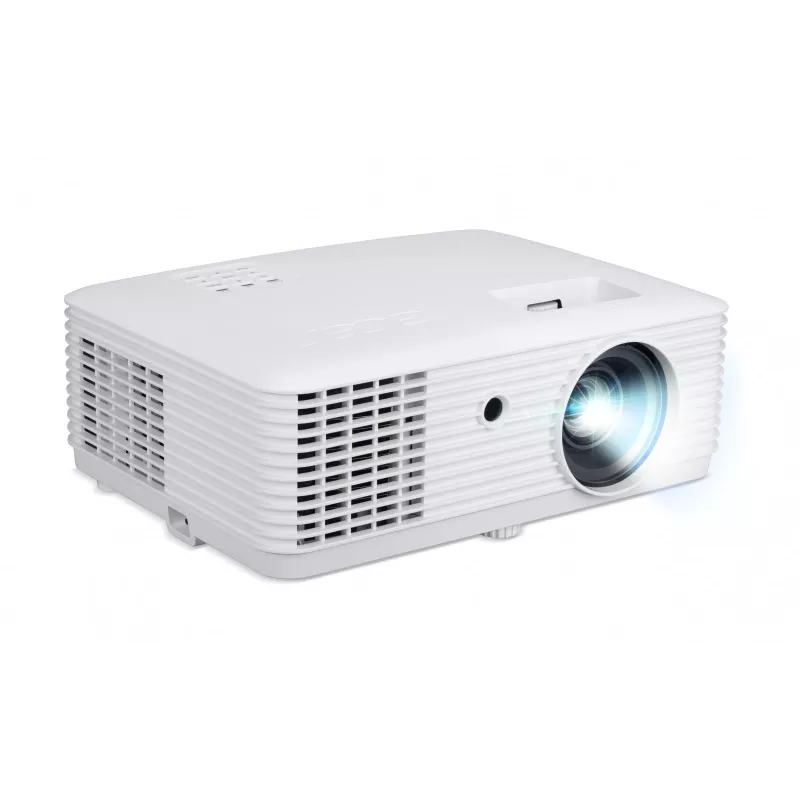

Projector Acer HL6510ATV 4000 ANSI lumens DLP UHD 4K

The Acer HL6510ATV is a DLP UHD 4K laser projector offering 4,000 ANSI lumens (standard) brightness and a native 16:9 aspect ratio for sharp, high-resolution projection. The laser light source provides up to 20,000 hours of operation in standard mode and up to 30,000 hours in eco mode. The unit is white, supports screen sizes from 30" to 300" (762–7,620 mm), and delivers up to 1.07 billion colours with a contrast ratio of 50,000:1. Manual focus and a 1.3:1 zoom ratio allow flexible placement, including ceiling and rear projection. Built-in 10 W speaker and compatibility with Windows, Mac and Chrome OS make it suitable for a variety of environments.

Advantages

The laser diode light source provides long lifetime and stable brightness over time, reducing maintenance compared with lamp-based projectors. With UHD 4K resolution and DLP technology the projector reproduces detailed images and a wide colour range. A high contrast ratio enhances clarity in darker scenes, while a compact 3 kg white chassis and manual focus with 1.3:1 zoom support flexible installation options.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Home cinema with large screen setups
• Corporate presentations and training rooms

Key specifications

• Brightness: 4,000 ANSI lumens (standard), 5,000 ANSI lumens (alternate listing)
• Light source: Laser diode; life: 20,000 hours (standard), 30,000 hours (eco)
• Resolution: UHD 4K (3840 × 2160), native aspect ratio 16:9
• Contrast ratio: 50,000:1
• Projection technology: DLP
• Screen size compatibility: 762–7,620 mm (30"–300")
• Colours: 1.07 billion colours
• Focus: Manual
• Built-in speaker: 10 W
• Weight: 3 kg
• Colour: White
• Power consumption: DC 250 W

How to use

Place the projector on a stable surface or mount it to the ceiling according to the installation instructions, ensuring the projector is aligned with the screen for correct 16:9 image geometry. Connect a video source using compatible HDMI or other supported inputs and select the appropriate input on the projector. Adjust the 1.3:1 zoom and manual focus until the projected image is sharp and sized to the screen. Use eco mode to extend laser life when maximum brightness is not required. Refer to the Acer user manual for detailed connection diagrams and safety information.

Recommendations

For best image quality, darken the room and position the projector at the recommended throw distance for the desired screen size. Regularly clean the intake and exhaust vents to maintain cooling efficiency and consistent brightness. Use eco mode during extended presentations to reduce power consumption and extend the laser lifespan.
