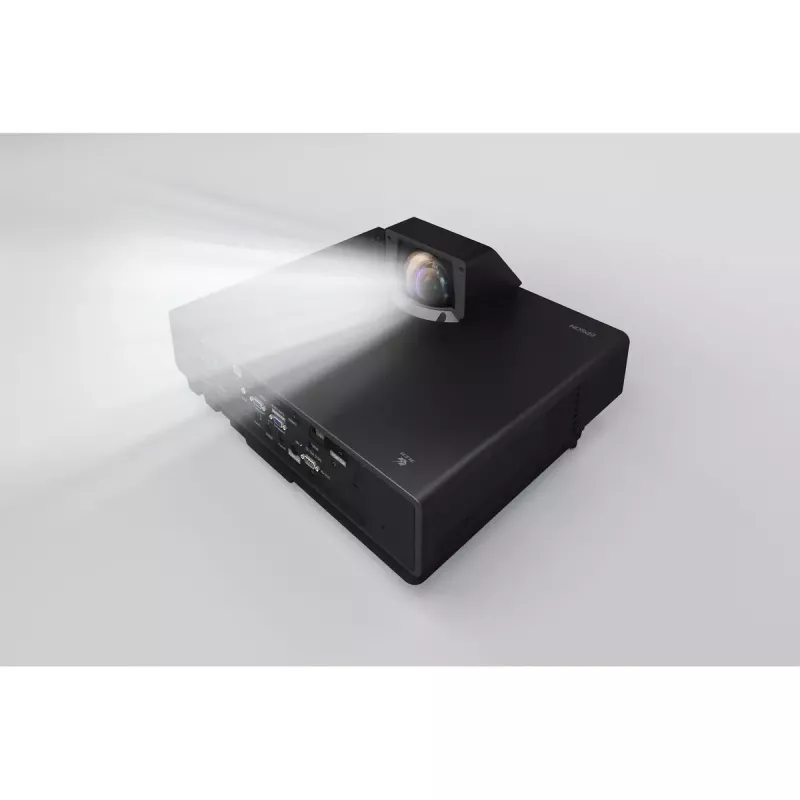

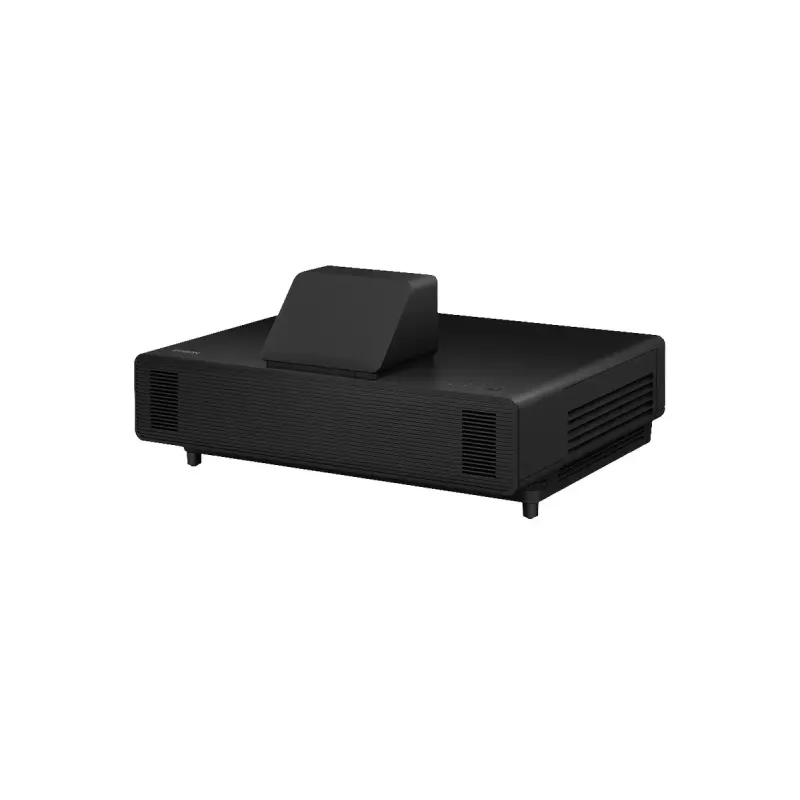

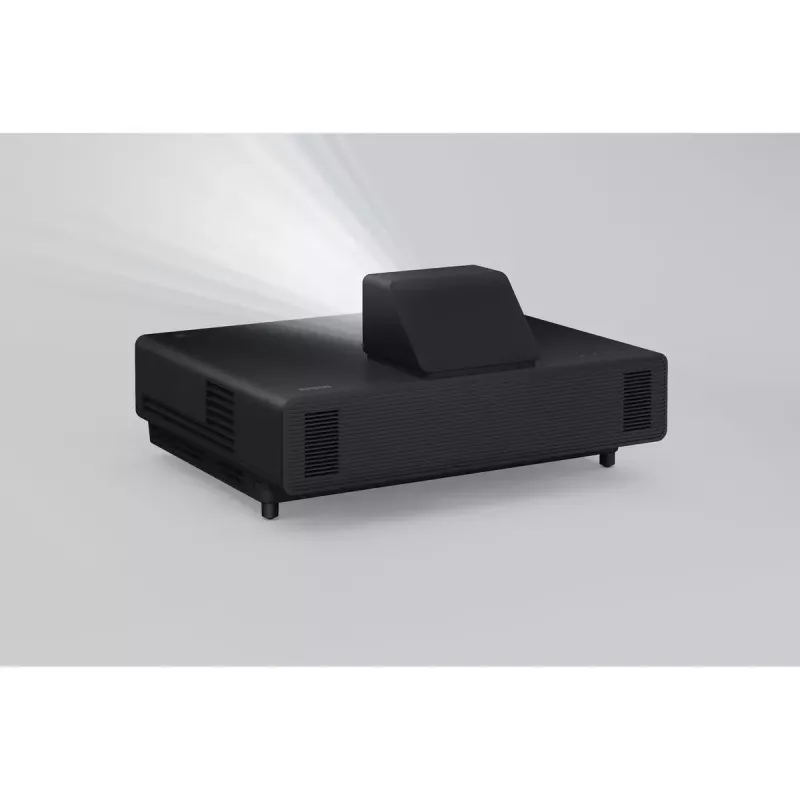

Epson EB-805F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) Black

The Epson EB-805F is an ultra short throw projector designed for digital signage, retail, hospitality and visitor attractions. It produces borderless Full HD (1920x1080) projections up to 130 inches diagonal with 3LCD technology and 5,000 ANSI lumens brightness. The projector uses a laser light source for long life and stable colour performance, and its compact ultra-short-throw design allows large images from a very short distance.

Advantages

The EB-805F combines robust laser illumination with 3LCD imaging to deliver bright, vivid colours and consistent Full HD image quality even in well-lit environments. Its ultra short throw optical design enables installation close to the projection surface for large, borderless images on glass, curved walls or ultra-wide surfaces. The unit supports flexible playback and multi-projector setups, and offers multiple mounting options including wall, ceiling or floor placement.

Suitable for

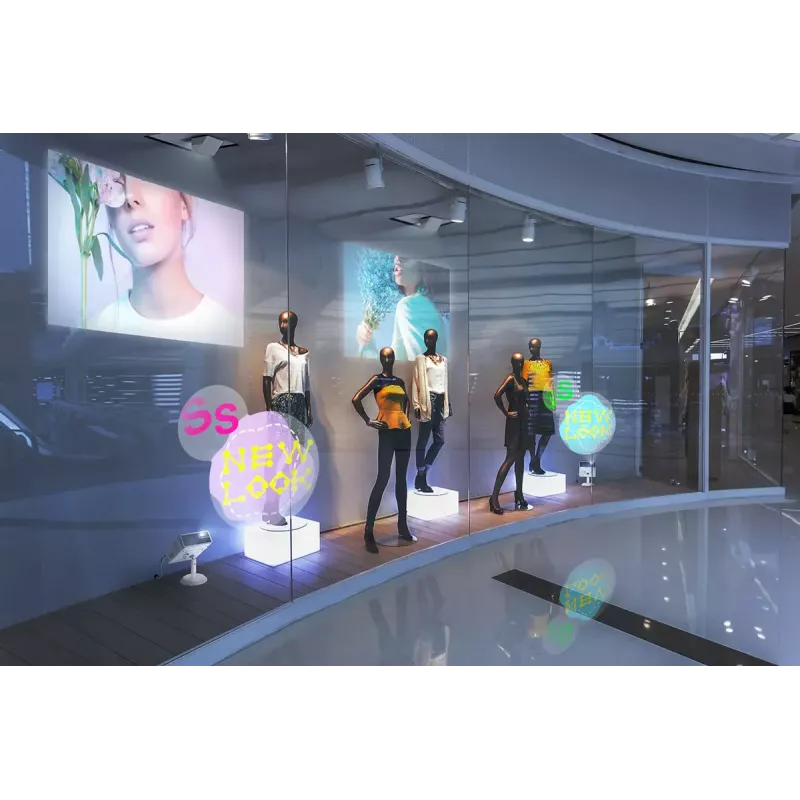

• Retail window and in-store signage
• Hotel lobbies, restaurants and hospitality displays
• Museums and visitor attractions with curved or large surfaces
• Meeting rooms or public areas requiring scalable large-format projection

Key specifications

• Model: Epson EB-805F (V11H923640)
• Native resolution: 1080p (1920 x 1080), aspect ratio 16:9
• Brightness: 5,000 ANSI lumens
• Projection technology: 3LCD
• Maximum scalable screen size: up to 130 inches diagonal
• Light source: laser (long life, up to approximately 20,000 hours typical)

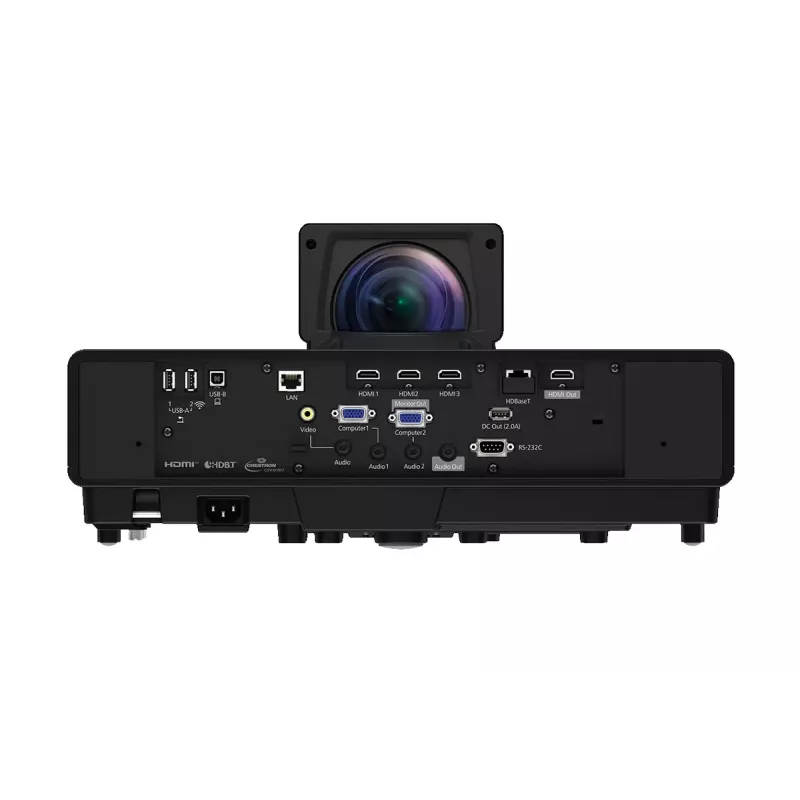

• Connectivity highlights: HDMI, RS-232C, USB playback
• Colour: Black (also available in white version)
• Weight: 9.4 kg

How to use

Place or mount the EB-805F close to the projection surface using wall, ceiling or floor mounting as required by the installation. Connect a content source via HDMI or playback directly from a USB stick using the built-in content playback feature. Use the projector's manual focus and auto-zoom functions to adjust image size and sharpness, and configure multi-projector edge blending or split-screen through the projector menus and Epson Projector Content Manager software when combining multiple units or inputs.

Recommendations

For best results on large or curved surfaces, position the projector at an appropriate short-throw distance to achieve a borderless image, calibrate brightness and colour settings for the ambient light level, and use the edge blending feature when daisy-chaining multiple projectors to create a seamless large display.
